Belden 83802 12 AWG 2 Conductor 7x20 Stranding Tinned Copper 300V Electronic Cable

Description:

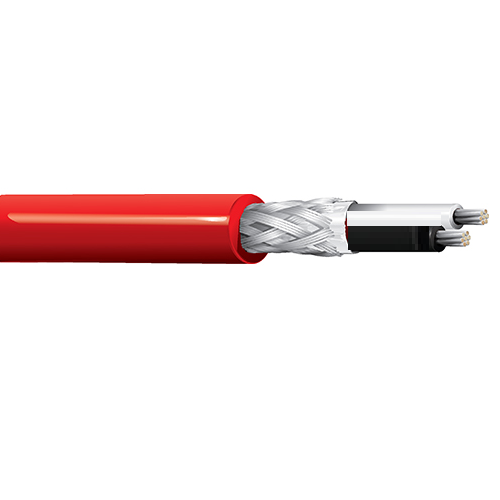

High Temperature Electronic, 2 Conductor 12 AWG (7x20) Tinned Copper, FEP Insulation, Overall Beldfoil+Tinned Copper Braid (85%) Shield, Red FEP Outer Jacket, CMP FPLP.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.016 in (0.41 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

• Overall Beldfoil (aluminum foil-polyester tape) shield with 100% coverage plus an 85% coverage tinned copper braid shield and drain wire.

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.303 in (7.70 mm)
• Overall Cable Diameter (Nominal): 0.303 in (7.70 mm)

Standards:

• Voltage Rating: 300 V (CMP).
• Operating Temperature: -70°C to +200°C

Applications:

• fire alarms; extreme high/low temperature environments; indoor/outdoor applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …)
