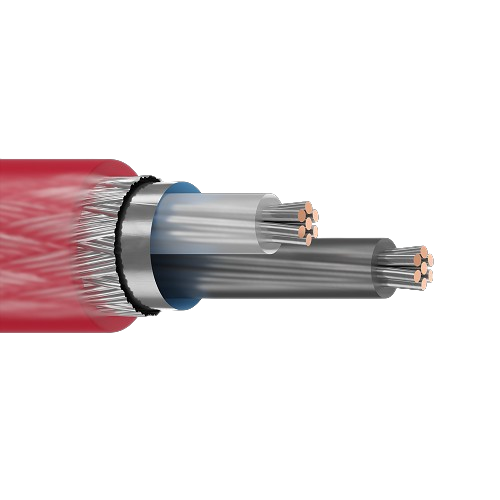

Belden 83752 14 AWG 2 Conductor 7x22 Stranding 300V Electronic Cable

Description:-

High Temperature Electronic, 2 Conductor 14 AWG (7x22) Tinned Copper, FEP Insulation, Overall Beldfoil+Tinned Copper Braid(85%) Shield, Red FEP Outer Jacket, CMP FPLP

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Insulation Diameter: 0.105 in (2.67 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

Outer Jacket:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.267 in (6.78 mm)
• Overall Cable Diameter (Nominal): 0.267 in (6.78 mm)

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -70°C to +200°C

Applications:-

• fire alarms; extreme high/low temperature environments; indoor/outdoor applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …)

Specifications:-

• Size (AWG): 14
• No. of Conductor: 2
• Stranding: 7x22
• Conductor Material: TC - Tinned Copper
• Part Number: 83752
