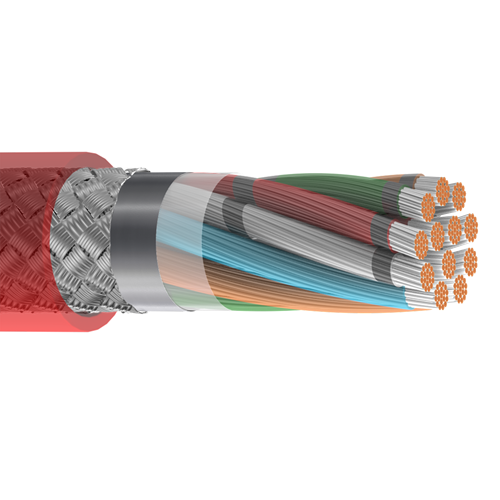

Belden 83662 18 AWG 12 Conductor 19x30 Stranding Tinned Copper 300V Electronic Cable

Description:

High Temperature Electronic, 12 Conductor 18 AWG (19x30) Tinned Copper, FEP Insulation, Overall Beldfoil+Tinned Copper Braid (85%) Shield, FEP Outer Jacket, CMP.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.007 in (0.18 mm)
• Nom. Insulation Diameter: 0.057 in (1.4 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

• Overall Beldfoil (aluminum/polyester tape) shield with 100% coverage

• Tinned copper braid shield with 85% coverage.

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.296 in (7.52 mm)
• Overall Cable Diameter (Nominal): 0.296 in (7.52 mm)

Standards:

• Voltage Rating: 300 V.
• Operating Temperature: -70°C to +200°C

Applications:

• extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring
