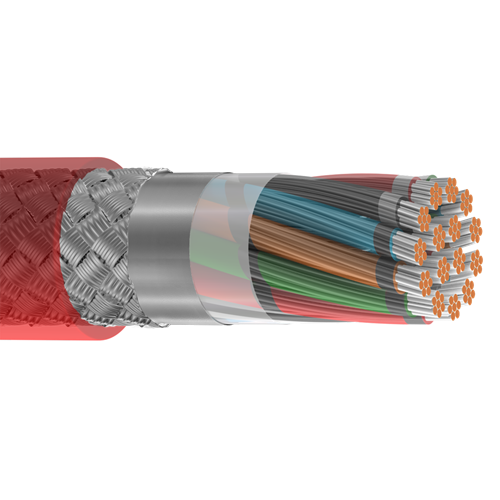

Belden 83515 24 AWG 15 Conductor 7x32 Stranding Tinned Copper 300V Electronic Cable

Description:

High Temperature Electronic, 15 Conductor 24 AWG (7x32) Tinned Copper, FEP Insulation, Overall Beldfoil+Tinned Copper Braid (85%) Shield, FEP Outer Jacket, CMP.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.006 in (0.15 mm)
• Nom. Insulation Diameter: 0.036 in (0.91 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

•  Foil (100% coverage) and Braid (85% coverage), tinned copper

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.014 in (0.36 mm)
• Nom. Diameter: 0.229 in (5.82 mm)
• Overall Cable Diameter (Nominal): 0.229 in (5.82 mm)

Standards:

• Voltage Rating: 300 V (CMP).
• Operating Temperature: -70°C to +200°C.

Applications:

• extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring
