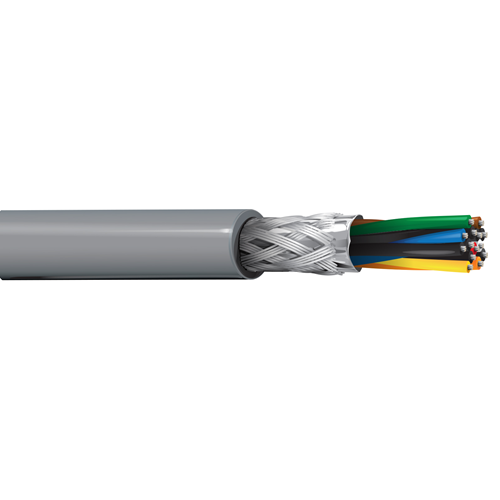

Belden 8337 24 AWG 7 Pair 7x32 Stranding Tinned Copper 300V Computer EIA RS-232 Cable

Description:

Computer EIA RS-232 Cable, 7-Pair, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil (100% coverage) + tinned copper braid shield (65% coverage), PVC jacket.

Insulation:

• Material: SR-PVC - Polyvinyl Chloride (Semi-Rigid)
• Nom. Thickness: 0.0105 in (0.267 mm)
• Nom. Insulation Diameter: 0.044 in (1.1 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 65%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.321 in (8.15 mm)
• Overall Cable Diameter (Nominal): 0.321 in (8.15 mm)

Standards:

• Operating Temperature: -30°C to +80°C
• Nom. Characteristic Impedance: 75 Ohm
• Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)

Applications:

• RS-232 extended distance applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Specifications:

• Size (AWG): 24
• No. of Pair: 7
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 8337
