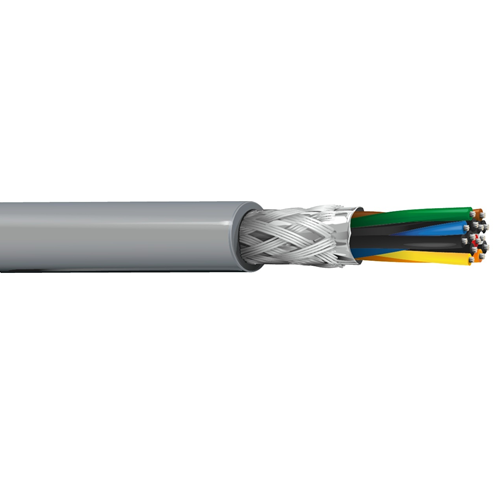

Belden 8307 22 AWG 7 Pair 7x30 Stranding Tinned Copper 300V Computer EIA RS-232 Cable

Description:

Computer EIA RS-232 Cable, 22 AWG stranded (7x30) tinned copper conductors, semi-rigid PVC insulation, 7 twisted pairs, overall Beldfoil (100% coverage) + tinned copper braid shield (65% coverage), PVC jacket.

Insulation:

• Material: SR-PVC - Polyvinyl Chloride (Semi-Rigid)
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.051 in (1.3 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 65%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.348 in (8.84 mm)
• Overall Cable Diameter (Nominal): 0.348 in (8.84 mm)

Standards:

• Operating Temperature: -30°C to +80°C
• Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)

Applications:

• RS-232 Extended Distance Applications; Computer Communications; Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Line Level Audio; Panel Wiring

Specifications:

• Size (AWG): 22
• No. of Pair: 7
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 8307
