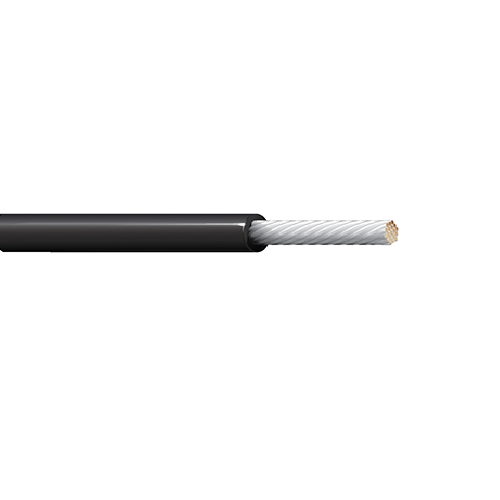

Belden 83043 30 AWG 1 Conductor 7x38 Stranding Silver Plated Copper Lead Wire
Belden 83043 30 AWG 1 Conductor 7x38 Stranding Silver Plated Copper Lead Wire
SKU: SKU: NES83043 Download PDF
Select a gauge:
- Belden 83043 30 AWG 1 Conductor 7x38 Stranding Silver Plated Copper Lead Wire
- Belden 83043 30 AWG 1 Conductor 7x38 Stranding Silver Plated Copper Lead Wire
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Belden 83043 30 AWG 1 Conductor 7x38 Stranding Silver Plated Copper Lead Wire
Description:
High Temp Plastic Lead Wire, 30 AWG (7x38) Silver Plated Copper, TFE Insulation, AWM 1371 105C TYPE ET MIL-W-16878/6 250V 200C.
Insulation:
• Material: PTFE - Polytetrafluoroethylene
• Nominal Diameter: 0.024 in
• Nominal Wall Thickness: 0.006 in
Standards:
• Voltage Rating: 250 V RMS
• Military Compliance: MIl-W-16878/6
Applications:
• high temperature, inter-connection circuits, internal wiring of computers and electronic equipment, (Type ET) MIL-W-16878/6 applications
Specifications:
• Size (AWG): 30
• No. of Conductor: 1
• Stranding: 7x38
• Conductor Material: SC - Silvered Copper
• Part Number: 83043
• Size (AWG): 30
• No. of Conductor: 1
• Stranding: 7x38
• Conductor Material: SC - Silvered Copper
• Part Number: 83043
