Product Information

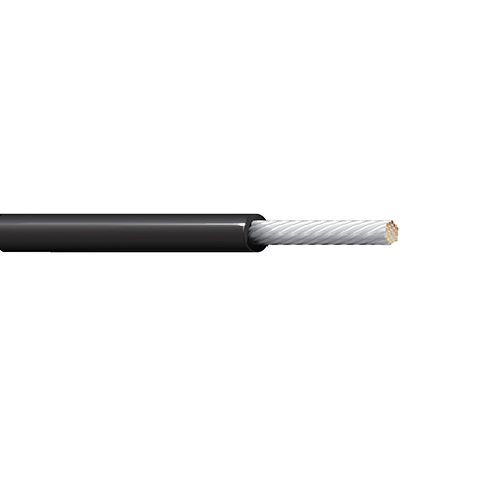

Belden 83045 28 AWG 1 Conductor 7x36 Stranding Silver Plated Copper Lead Wire
Description:
High Temp Plastic Lead Wire, 28 AWG (7x36) Silver Plated Copper, TFE Insulation, AWM 1371 105C TYPE ET MIL-W-16878/6 250V 200C.
Insulation:
• Material: PTFE - Polytetrafluoroethylene
• Nominal Diameter: 0.027 in
• Nominal Wall Thickness: 0.006 in
Standards:
• Voltage Rating: 250 V RMS
• Military Compliance: MIl-W-16878/6
Applications:
• high temperature, inter-connection circuits, internal wiring of computers and electronic equipment, (Type ET) MIL-W-16878/6 applications
Specifications:
• Size (AWG): 28
• No. of Conductor: 1
• Stranding: 7x36
• Conductor Material: SC - Silvered Copper
• Part Number: 83045
• Size (AWG): 28
• No. of Conductor: 1
• Stranding: 7x36
• Conductor Material: SC - Silvered Copper
• Part Number: 83045
