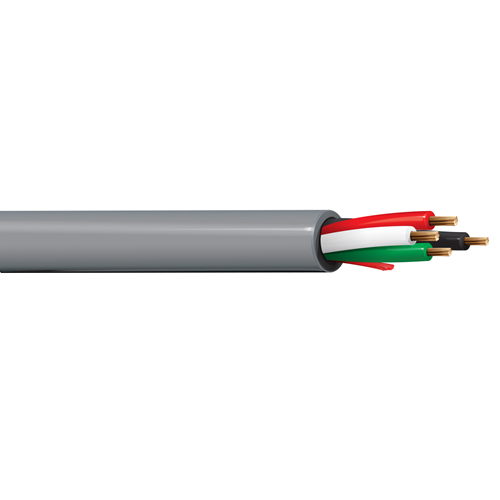

Belden 6402UE 20 AWG 4 Conductor 7x28 Stranding Bare Copper 300V Security and Sound Cable

Description:

Security and Sound Cable, Plenum-CMP 4-20 AWG stranded bare copper conductors with Flamarrest insulation, Flamarrest jacket with ripcord.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.009 in (0.23 mm)
• Nom. Insulation Diameter: 0.054 in (1.4 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.156 in (3.96 mm)
• Overall Cable Diameter (Nominal): 0.156 in (3.96 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: 0°C To +75°C

Applications:

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Specifications:

• Size (AWG): 20
• No. of Conductor: 4
• Stranding: 7x28
• Conductor Material: BC - Bare Copper
• Part Number: 6402UE
