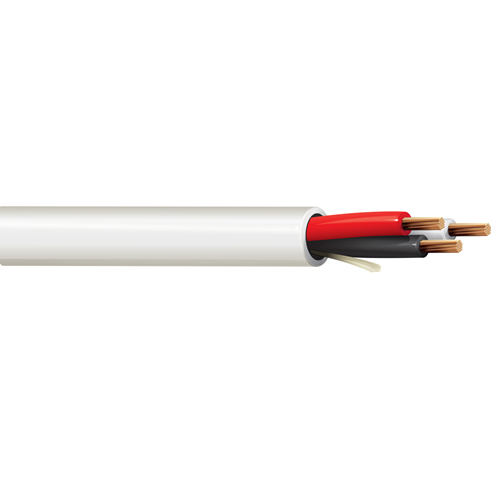

Belden 6101UE 14 AWG 3 Conductor 19x26 Stranding Bare Copper 300V Security and Sound Cable

Description:

Security and Sound Cable, 3 Conductors 14 AWG stranded (19x27) bare copper conductors with Flamarrest insulation, Plenum, Flamarrest jacket with ripcord.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.090 in (2.3 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.224 in
• Overall Cable Diameter (Nominal): 0.224 in

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C To +75°C

Applications:

• Intercom/PA Systems, Sound/Audio Systems

Specifications:

• Size (AWG): 14
• No. of Conductor: 3
• Stranding: 19x26
• Conductor Material: BC - Bare Copper
• Part Number: 6101UE
