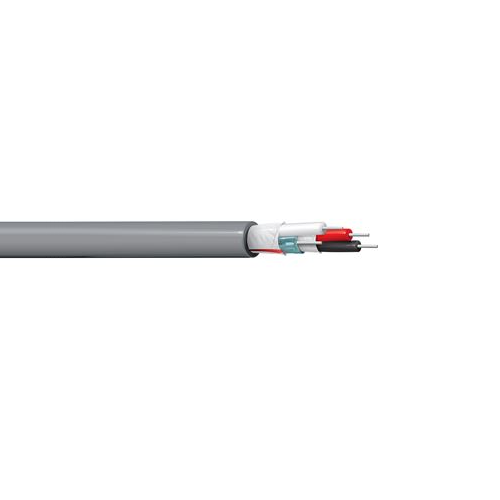

Belden 5521G1 22 AWG Solid Tinned Copper 300V Security and Sound Cable

Description:-

Security and Sound Cable, Rated-CM, 1-22 AWG solid tinned copper pair with PVC insulation and Beldfoil shield, 1-22 AWG solid tinned copper pairs with PVC insulation, Inner and overall waterblocking tapes, PVC jacket with ripcord

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.01 in (0.25 mm)

Inner Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.212 in
• Waterblocking Tape

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -20°C To +105°C

Applications:-

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy & Wet Location, Below-Grade Duct

Specifications:-

• Size (AWG): 22
• No. of Pair: 1
• Stranding: Solid
• Conductor Material: TC - Tinned Copper

• Size (AWG): 22
• No. of Conductor: 2
• Stranding: Solid
• Conductor Material: TC - Tinned Copper
• Part Number: 5521G1
