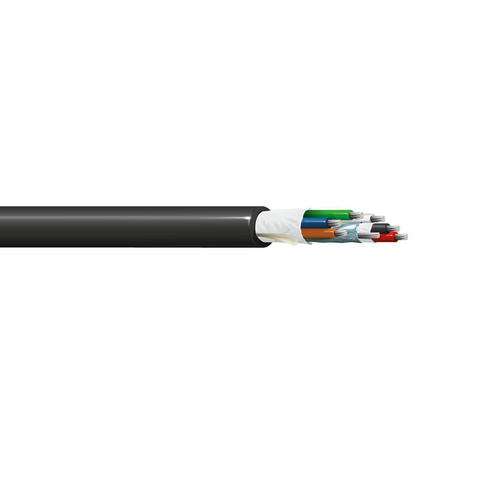

Belden 5504G1 22 AWG 7x30 Stranding Tinned Copper 300V Security and Sound Cable

Description:-

Security and Sound Cable, Rated-CM, 1-22 AWG stranded tinned copper pair with PVC insulation and Beldfoil shield, 4-22 AWG stranded tinned copper pair with PVC insulation, overall waterblocking tape, and PVC jacket with ripcord

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.051 in (1.3 mm)

Inner Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper
• Waterblock Tape

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.259 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +105°C

Applications:-

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy & Wet Location, Below-Grade Duct

Specifications:-

• Size (AWG): 22
• No. of Conductor: 4
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper

• Size (AWG): 22
• No. of Pair: 1
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 5504G1
