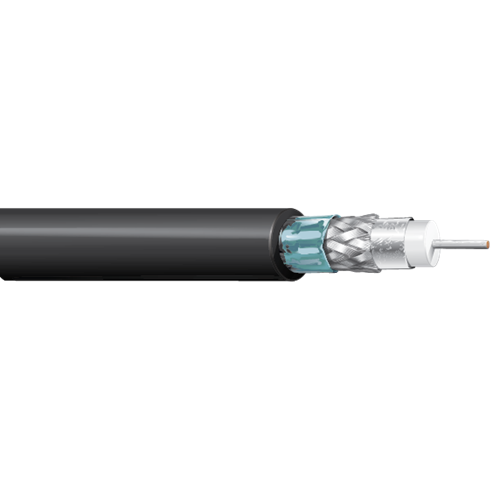

Belden 4794R 16 AWG 1 Conductor Solid Series 7 SDI 75 Ohm Coax Cable

Description:

75 Ohm SDI Coax, Series 7, 16 AWG Solid Silvered Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid + Foil Shield, PVC Jacket, CMR.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.225 in (5.72 mm)
• Gas Injected

Outer Shield:

• Layer 1: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duobond II, Coverage 100%

• Layer 2: Outer Shield Type Braid, Tinned Copper (TC) Material, Coverage 95%

• Layer 3: Outer Shield Type Tape, Bi-Laminate (Alum+Poly) Material, Material Trade Name Beldfoil, Coverage 100%

• With Shorting Fold and Bonded to inside of jacket for easy preparation

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.320 in (8.13 mm)
• Overall Cable Diameter (Nominal): 0.320 in (8.13 mm)

Applications:

• Ultra-High Definition Digital Video, 4K Single-link 12 Gb/s UHDTV, 4K D-Cinema, 8K Quad-link UHDTV, HD-SDI 1080p
