Belden 1505F 22 AWG 1 Conductor 7x29 Stranding RG-59 75 Ohm SDI Coax Cable

Belden 1505F 22 AWG 1 Conductor 7x29 Stranding RG-59 75 Ohm SDI Coax Cable

SKU: NES1505F   Download PDF

Select a gauge:
  • Belden 1505F 22 AWG 1 Conductor 7x29 Stranding RG-59 75 Ohm SDI Coax Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $1.59 /FT   Web pricing policy
BEFORE   Now $1.59 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 1505F 22 AWG 1 Conductor 7x29 Stranding RG-59 75 Ohm SDI Coax Cable

Description:

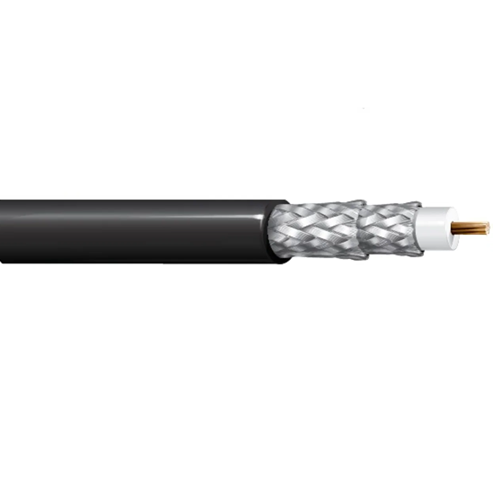

75 Ohm SDI Coax, RG-59, 22 AWG (7x29) Bare Copper Conductor, PE Insulation, Double 95% Tinned Copper Braid Shield, PVC Jacket, CM, Flexible.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.145 in (3.68 mm)

Outer Shield:

• Layer 1: Outer Shield Type Braid, Tinned Copper (TC) Material, Coverage 95%

• Layer 2: Outer Shield Type Braid, Tinned Copper (TC) Material, Coverage 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.242 in (6.15 mm)
• Overall Cable Diameter (Nominal): 0.242 in (6.15 mm)

Applications:

• Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p

Specifications:

• Size (AWG): 22
• No. of Conductor: 1
• Stranding: 7x29
• Nom. Diameter: 0.032 in
• Impedance: 75 Ohm
• RG Type: 59
• Conductor Material: BC-C - Bare Copper (Compacted)
• Part Number: 1505F
