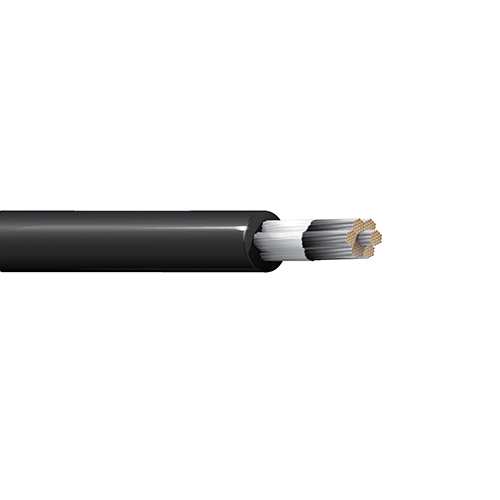

Belden 37590 1/0 AWG 1 Conductor 262x24 Stranded Tinned Copper 7500V Rubber Lead Wire Cable

Description:-

Rubber Lead Wire, 1/0 AWG (262x24) Tinned Copper, EPDM Insulation, AWM 3499 7500V 150C

Insulation:-

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.131 in (3.33 mm)
• Nom. Insulation Diameter: 0.688 in (17.5 mm)
• Overall Cable Diameter (Nominal): 0.688 in (17.5 mm)

Standards:-

• UL Voltage Rating: 7500 V (AWM 3499)
• Operating Temperature Range: -55°C To +150°C

Applications:-

• internal wiring of appliances, high voltage, and high temperature applications

Specifications:-

• Size (AWG): 1/0
• No. of Conductor: 1
• Stranding: 262x24
• Conductor Material: TC - Tinned Copper
• Part Number: 37590
