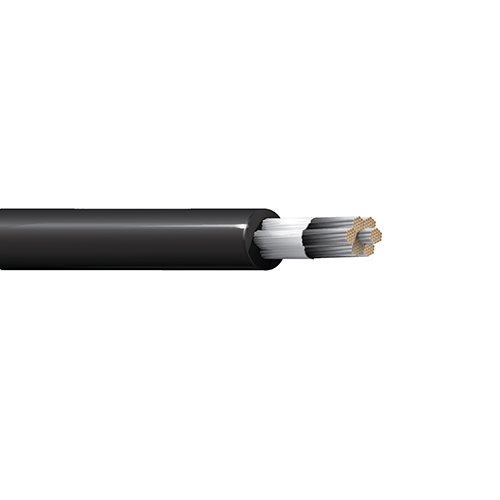

Belden 37530 3/0 AWG 1 Conductor 630x26 Stranding Tinned Copper 7500V Rubber Lead Wire
Belden 37530 3/0 AWG 1 Conductor 630x26 Stranding Tinned Copper 7500V Rubber Lead Wire
SKU: SKU: NES37530 Download PDF
gauge:
- Belden 37530 3/0 AWG 1 Conductor 630x26 Stranding Tinned Copper 7500V Rubber Lead Wire
- Belden 37530 3/0 AWG 1 Conductor 630x26 Stranding Tinned Copper 7500V Rubber Lead Wire
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Regular price
Now $55.54 /FT
Regular price
BEFORE
Sale price
Now $55.54 /FT
Unit price
per
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
Couldn't load pickup availability
Product Information
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Belden 37530 3/0 AWG 1 Conductor 630x26 Stranding Tinned Copper 7500V Rubber Lead Wire
Description:-
Rubber Lead Wire, 3/0 AWG (630x26) Tinned Copper, EPDM Insulation, AWM 3499 7500V 150C.
Insulation:-
• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.137 in (3.48 mm)
• Nom. Insulation Diameter: 0.813 in (20.7 mm)
• Overall Cable Diameter (Nominal): 0.813 in (20.7 mm)
Standards:-
• UL Voltage Rating: 7500 V (AWM 3499)
• Operating Temperature Range: -55°C To +150°C
Applications:-
• Internal wiring of appliances, high-voltage and high-temperature applications
Specifications:-
• Size (AWG): 3/0
• No. of Conductors: 1
• Stranding: 630x26
• Conductor Material: TC - Tinned Copper
• Part Number: 37530
Description:-
Rubber Lead Wire, 3/0 AWG (630x26) Tinned Copper, EPDM Insulation, AWM 3499 7500V 150C.
Insulation:-
• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.137 in (3.48 mm)
• Nom. Insulation Diameter: 0.813 in (20.7 mm)
• Overall Cable Diameter (Nominal): 0.813 in (20.7 mm)
Standards:-
• UL Voltage Rating: 7500 V (AWM 3499)
• Operating Temperature Range: -55°C To +150°C
Applications:-
• Internal wiring of appliances, high-voltage and high-temperature applications
Specifications:-
• Size (AWG): 3/0
• No. of Conductors: 1
• Stranding: 630x26
• Conductor Material: TC - Tinned Copper
• Part Number: 37530
