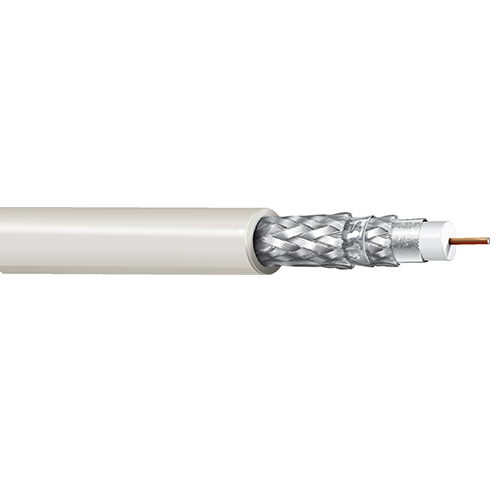

Belden 3132A 18 AWG 1 Conductor Solid Bare Copper Covered Steel 300V Coax Cable

Description:-

ControlBus, Coax RG6 18 AWG (Solid) Bare Copper Covered Steel, FEP Insulation, Overall Duofoil+ Aluminum Braid (60%)+Overall Duofoil+Aluminum Braid (40%) Shield, PVDF Outer Jacket, CMP

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nominal Diameter: 0.17 in

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duofoil

• Layer: 2
• Shield Type: Braid
• Material: Aluminum
• Coverage: 60%

• Layer: 3
• Shield Type: Braid
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duofoil

• Layer: 4
• Shield Type: Braid
• Material: Aluminum
• Coverage: 40%

Outer Jacket:-

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Diameter: 0.274 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 100 Ohms
• Operating Temperature Range: -20°C To +150°C

Specifications:-

• Size (AWG): 18
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 6
• Nominal Diameter: 0.04 in
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 3132A
