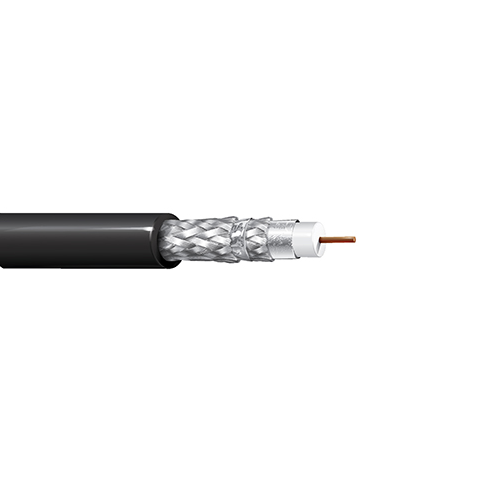

Belden 3092T 18 AWG 1 Conductor Solid Bare Copper Covered Steel 300V Coax Cable

Description:-

ControlBus, Coax RG6 18 AWG (Solid) Bare Copper Covered Steel, PO Insulation, Overall Duofoil+ Aluminum Braid (60%)+Overall Duofoil+Aluminum Braid (40%) Shield, LSZH Outer Jacket, CMG

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.180 in (4.57 mm)

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duobond II

• Layer: 2
• Shield Type: Braid
• Material: Aluminum
• Coverage: 60%

• Layer: 3
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duofoil

• Layer: 4
• Shield Type: Braid
• Material: Aluminum
• Coverage: 60%

Outer Jacket:-

• Material: PE - Polyethylene
• Nom. Diameter: 0.3 in
• Outer Jacket 1 Table Notes: Flame Retardant

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -20°C To +75°C

Applications:-

• harsh environment, factory automation, ControlNet, Modbus II, Industrial Coax, Belden ControlNet cables provide maximum signal integrity and run length exceeding the high-speed, time-critical requirements necessary for ControlNet factory floor applications

Specifications:-

• Size (AWG): 18
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 6
• Nom. Diameter: 0.040 in
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 3092T
