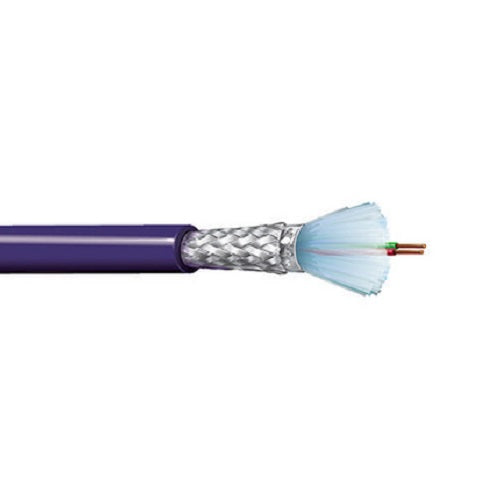

Belden 3079E 22 AWG 1 Pair 7x30 Stranding Bare Copper 300 V Profibus Cable

Description:

Profibus, 1 Pair 22AWG (7x30) Bare Copper, PE Insulation, Overall Beldfoil+Tinned Copper Braid(65%) Shield, PVC Outer Jacket, PLTC CMG SUN RES Profibus DP.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Insulation Diameter: 0.102 in (2.59 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 65%

• Outer Shield Material 1: Beldfoil (Aluminum+Polyester Bi-laminate tape) with 100% coverage.

• Outer Shield Material 2: Tinned copper braid shield with 65% coverage.

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.043 in (1.1 mm)
• Nom. Diameter: 0.314 in (7.98 mm)
• Overall Cable Diameter (Nominal): 0.314 in (7.98 mm)
• Outer Jacket1 Table Notes: Jacket OD +/- 0.007

Standards:

• Impedance: 150 Ohm
• Voltage Rating: 300 V RMS.
• Operating Temperature Range: -30°C to +75°C.

Applications:

• harsh environment, outdoors, data transmission applications such as Profibus DP or PA, Instrumentation and computer cable, etc. exposure to temperature extremes, humidity/moisture, dust, and oil.
