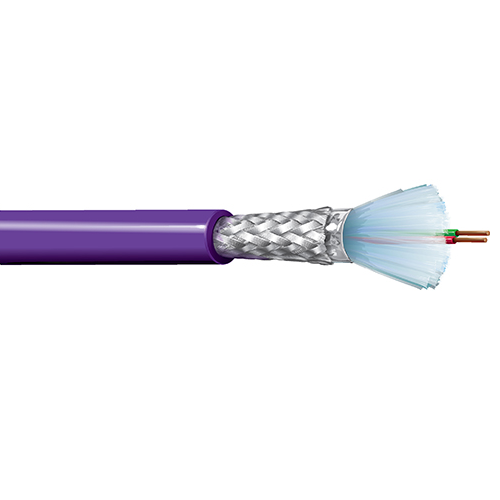

Belden 3079A 22 AWG 1 Pair Solid Bare Copper 150 Ohm Profibus Cable

Description:

Profibus, 1 Pair 22 AWG (Solid) Bare Copper, PE Insulation, Overall Beldfoil+Tinned Copper Braid(65%) Shield, PVC Outer Jacket, PLTC CMG AWM 20201 SUN RES Profibus DP.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Insulation Diameter: 0.099 in (2.5 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 65%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.043 in (1.1 mm)
• Nom. Diameter: 0.315 in (8.00 mm)
• Overall Cable Diameter (Nominal): 0.315 in (8.00 mm)
• Outer Jacket1 Table Notes: Jacket OD +/- 0.010

Standards:

• Temperature Range: Operating range from -30°C to +75°C.
• Impedance: Nominal characteristic impedance of 150 Ohms.
• Voltage Rating: 300 V (CMG, PLTC) and 600 V (UL AWM 20201).

Applications:

• harsh environment, outdoors, data transmission applications such as Profibus DP or PA, Instrumentation and computer cable, etc. exposure to temperature extremes, humidity/moisture, dust, and oil.
