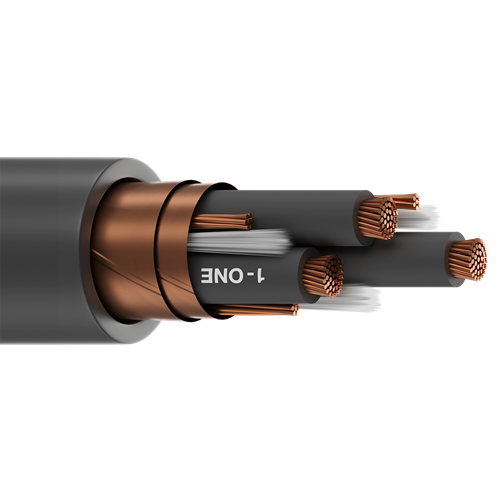

Belden 29533 250 MCM 3 Conductor Bare Copper 2000V Variable Frequency Drives Cable

Description:

Belden Basics VFD, 3 Conductor 250MCM (37x.0822") Bare Copper XLPE Insulation M4 Color Code + 3AWG Symmetrical Segmented Ground (3 of 8AWG) Bare Copper Stranded in Continuous Contact with Overall Copper Tapes Helically Applied Shield, Black PVC Outer Jacket, 2000V TC-ER 90C Dry/Wet 1000V CSA 22.2 No. 230 TC SUN RES DIR BUR Oil Resistant.

Insulation:

Element: Conductor(s):-
Material: XLPE - Cross-Linked Polyethylene (Thermoset)
Nom. Thickness: 0.105 in (2.67 mm)
Nom. Insulation Diameter: 0.768 in (19.5 mm)

Outer Shield:

• Shield Type: Helical Tape
• Material: Bare Copper (BC)
• Coverage: 100%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.110 in (2.79 mm)
• Nom. Diameter: 1.912 in (48.56 mm)
• Overall Cable Diameter (Nominal): 1.912 in (48.56 mm)

Applications:

• Variable Frequency Drives (VFD); AC Motor and Drive Systems
