7601Z-48" - Heavy-Duty 18-60 in Drawer Slides, 500 lbs Capacity
7601Z-48" - Heavy-Duty 18-60 in Drawer Slides, 500 lbs Capacity
SKU: SKU: 7601Z-48" Download PDF
- 7601Z-48" - Heavy-Duty 18-60 in Drawer Slides, 500 lbs Capacity
- 7601Z-48" - Heavy-Duty 18-60 in Drawer Slides, 500 lbs Capacity
Couldn't load pickup availability

Description:
Experience exceptional strength with this pair of drawer slides, engineered to support weights of up to 500 lbs Crafted from thick 077-inch high hardness steel, these slides are galvanized for enhanced rust and wear resistance, promising long-lasting use They are versatile enough for a variety of applications, including shelving, cabinets, industrial drawers, RVs, trucks, and vending machines With a full extension feature, you can easily access the entire drawer, maximizing your storage potential and functionality.
Features and Benefits:
•500 lbs load capacity.
•Dual lock design prevents items from slipping.

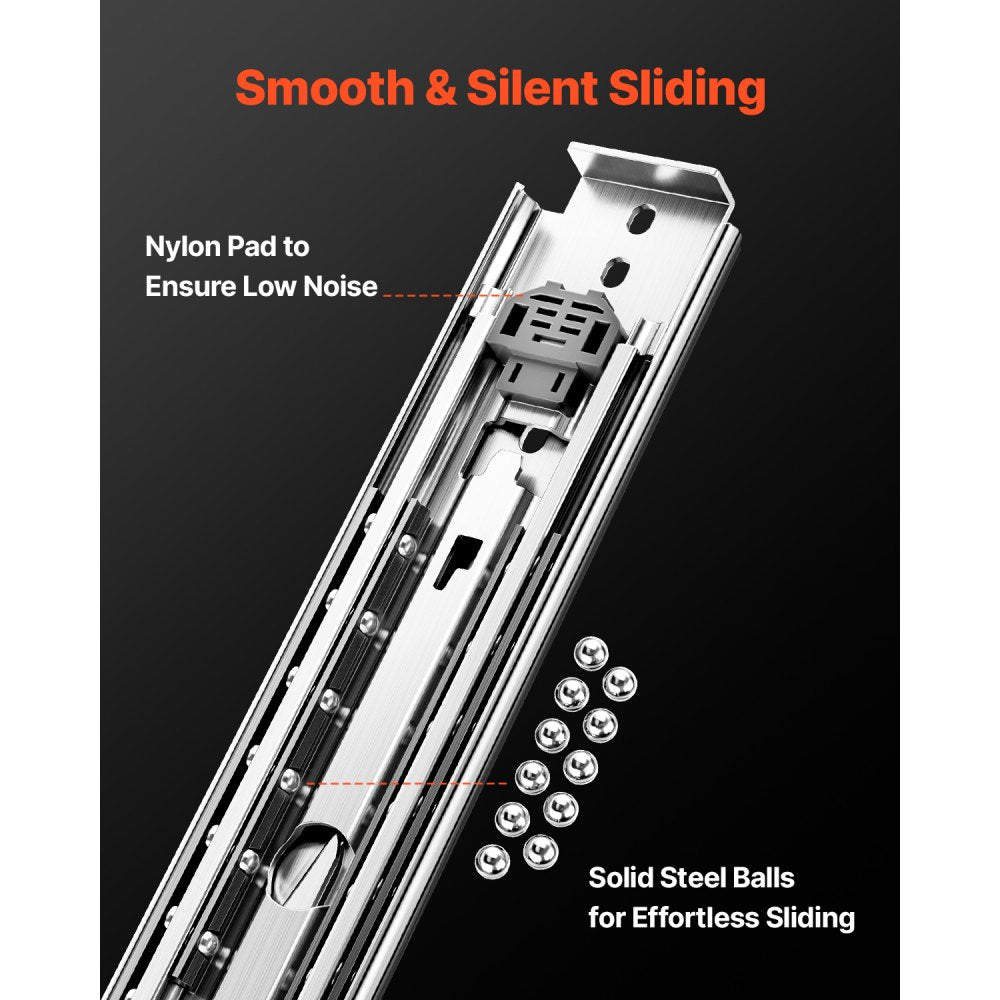

•Quiet operation with a gentle lock mechanism.
•Easily installed with provided hardware.
•Compatible with most drawer lengths and cabinets.
•Cabinet storage.
•Industrial drawers.
•Commercial gear.
•Modified vehicles.

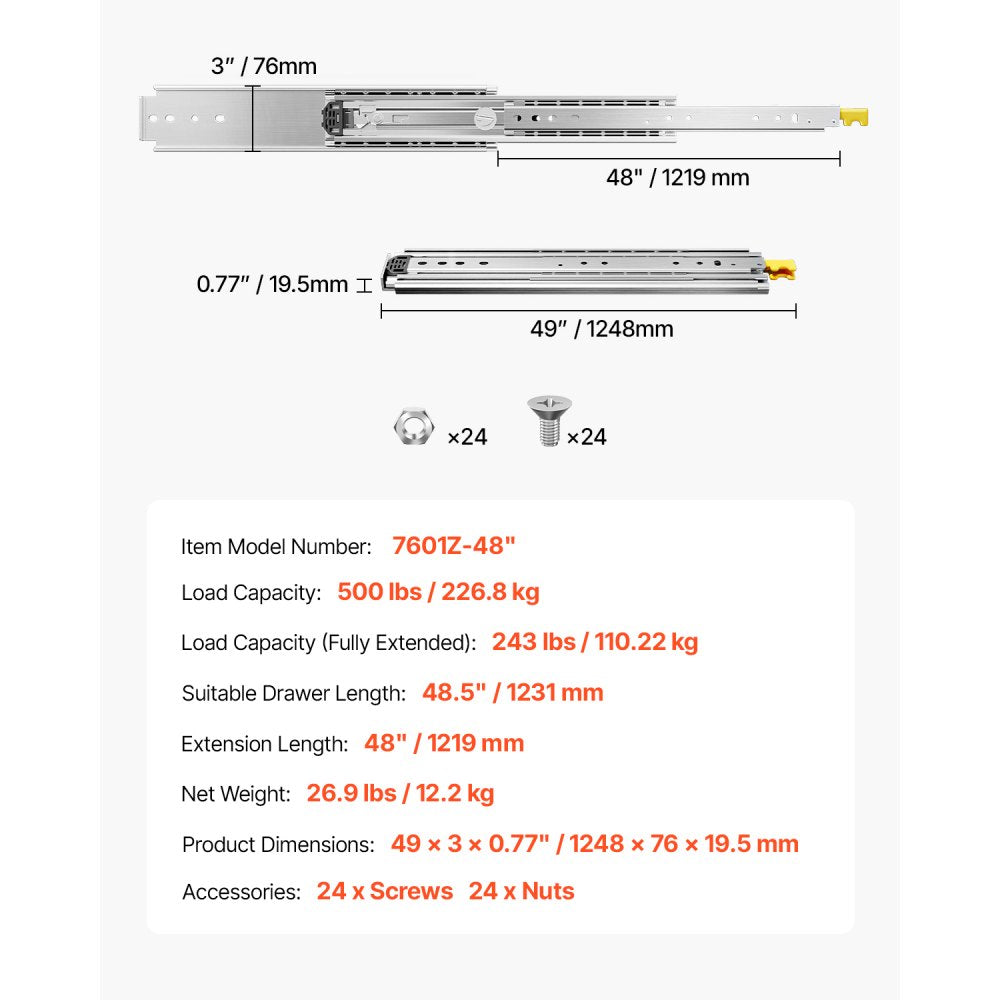

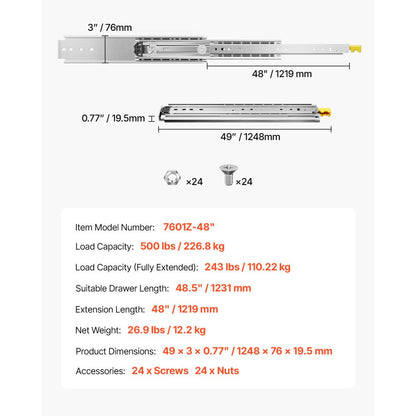

Specifications:
| Load Capacity | 500 lbs / 226.8 kg |
| Load Capacity (Fully Extended) | 243 lbs / 110.22 kg |
| Suitable Drawer Length | 48.5" / 1231 mm |
| Extension Length | 48" / 1219 mm |
| Product Dimensions | 49 x 3 x 0.77" / 1248 x 76 x 19.5 mm |
