7601Z-36" - Heavy-Duty Steel Drawer Slides, Full Extension, 500lbs Capacity
7601Z-36" - Heavy-Duty Steel Drawer Slides, Full Extension, 500lbs Capacity
SKU: SKU: 7601Z-36" Download PDF
- 7601Z-36" - Heavy-Duty Steel Drawer Slides, Full Extension, 500lbs Capacity
- 7601Z-36" - Heavy-Duty Steel Drawer Slides, Full Extension, 500lbs Capacity
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Discover the ultimate in durability and performance with these high-quality steel drawer slides Engineered for exceptional load-bearing capacity, they guarantee smooth and quiet functionality while providing reliable stability Each set includes detailed installation guides and screws, making them perfect for a range of uses, including cabinet installations, industrial drawers, and even vehicle modifications.
Features and Benefits:
•500 lbs Load Capacity.
•Dual Lock Design for enhanced security.
•Sturdy and built to last, resisting rust and corrosion.

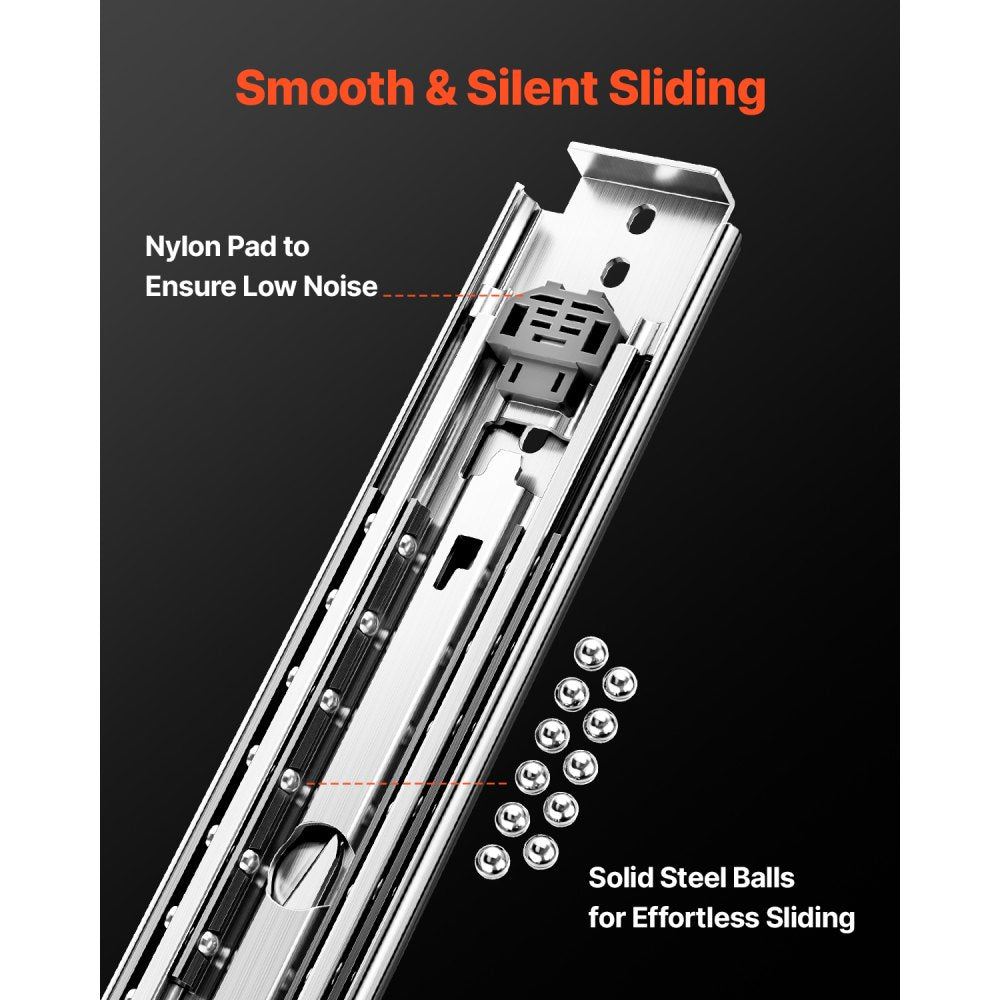

•Gentle & Quiet operation.
•3-Fold design allows full access to drawers.
•Cabinet storage.
•Industrial drawers.
•RV modifications.
•Truck modifications.
•Vending machines.

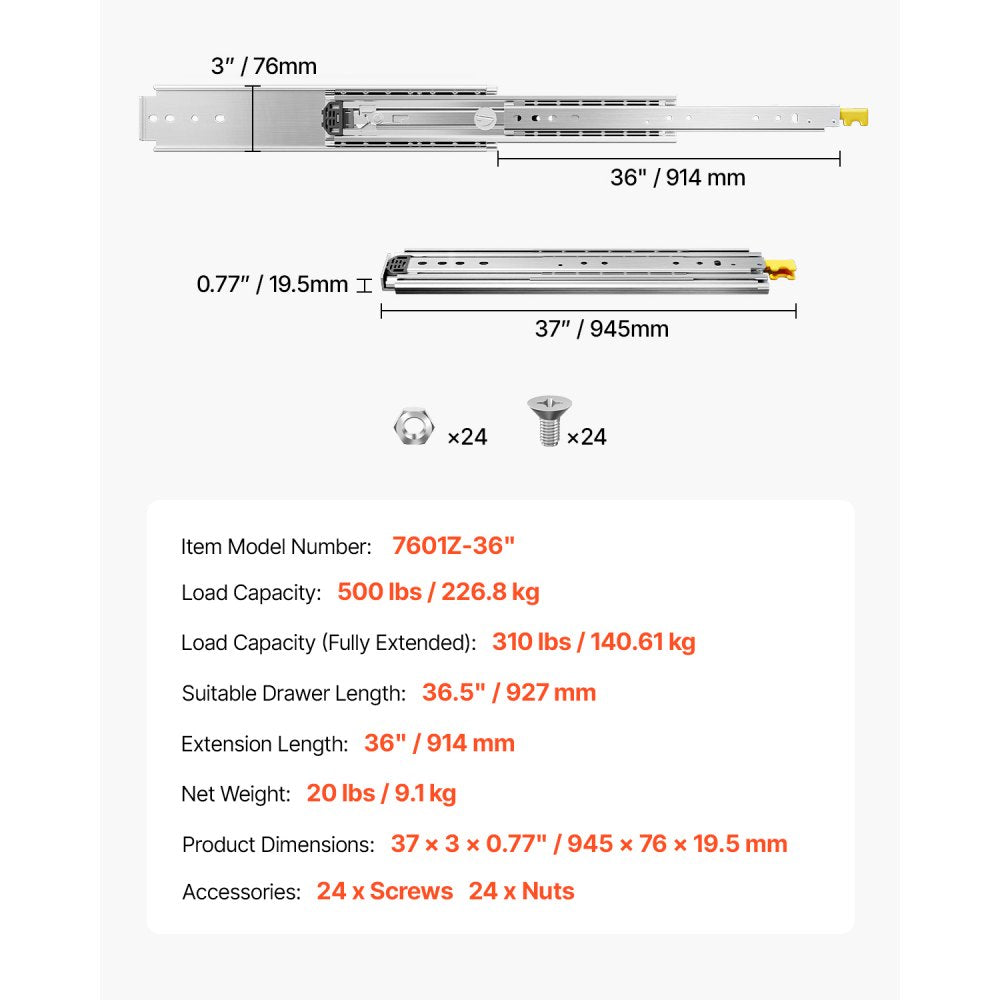

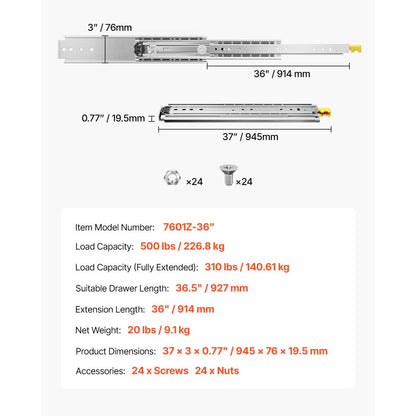

Specifications:
| Item Model Number | 7601Z-36" |
| Load Capacity | 500 lbs / 226.8 kg |
| Load Capacity (Fully Extended) | 310 lbs / 140.61 kg |
| Suitable Drawer Length | 36.5" / 927 mm |
| Extension Length | 36" / 914 mm |
| Product Dimensions | 37 x 3 x 0.77" / 945 x 76 x 19.5 mm |
