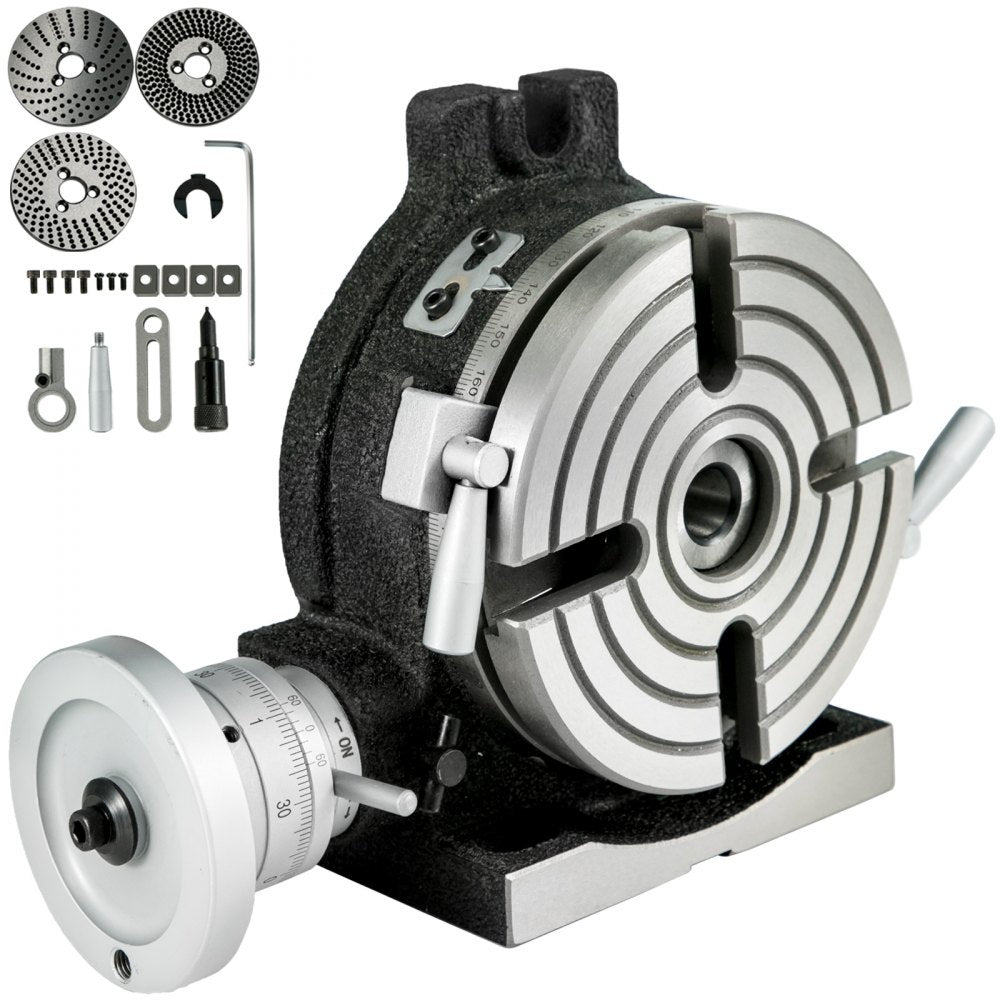

6 inch Rotary Table - Precision Milling Tool with Dual Orientation
6 inch Rotary Table - Precision Milling Tool with Dual Orientation
SKU: SKU: 6 inch Rotary Table
- 6 inch Rotary Table - Precision Milling Tool with Dual Orientation
- 6 inch Rotary Table - Precision Milling Tool with Dual Orientation
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

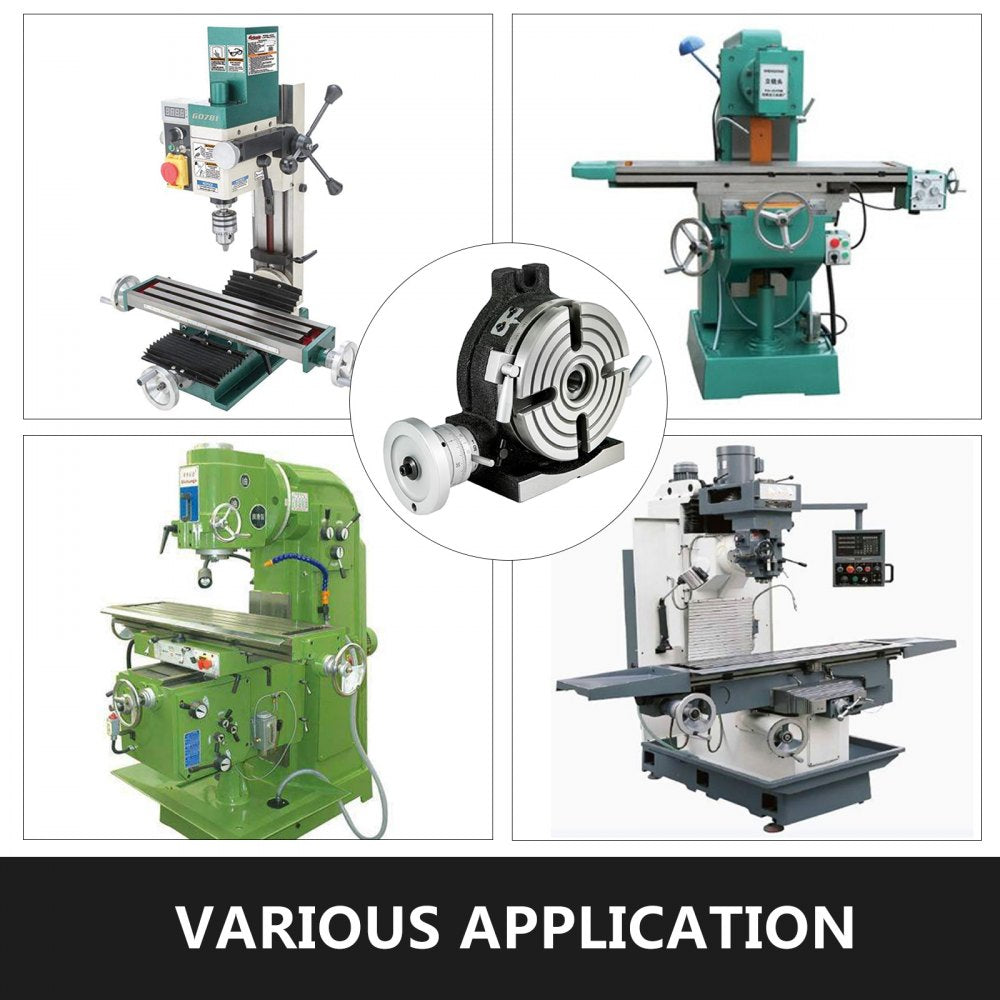

Introducing the Rotary Table, an essential companion for milling machines, renowned for its accuracy in a range of applications such as indexing drilling, milling, circumferential cutting, and boring Built from top-quality cast material, this rotary table operates flawlessly with a set of dividing plates Its versatile design allows for both vertical and horizontal positioning, guaranteeing exceptional precision and performance.
The easy-to-read scale on the dial enables effortless adjustments, ensuring a smooth and user-friendly experience.
Features and Benefits:
•Vertical and horizontal design for versatile use.

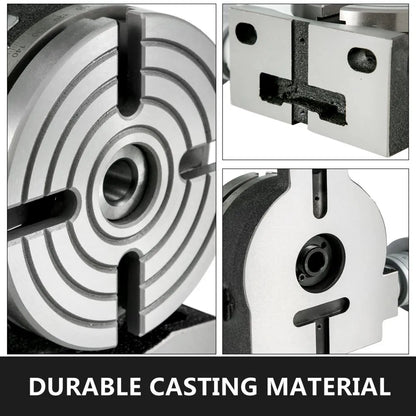

•Durable cast iron construction for shock absorption and heat resistance.

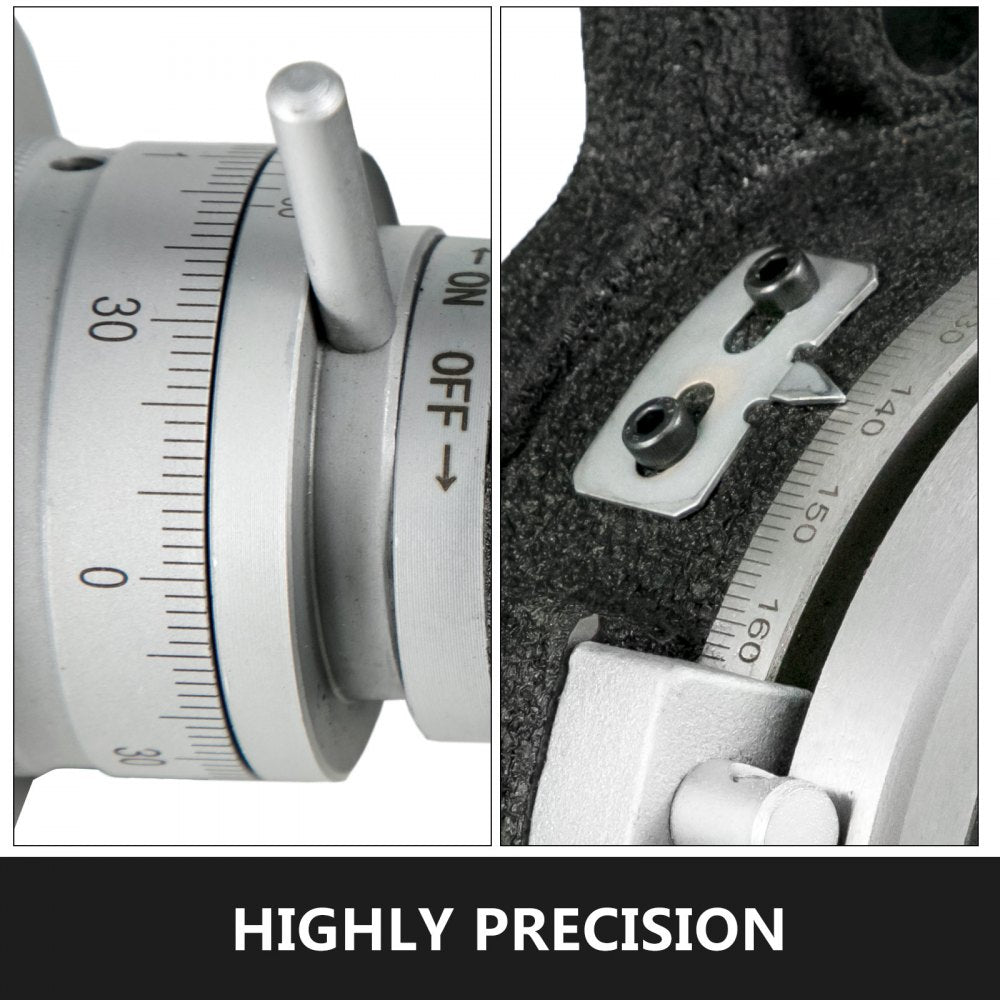

•Graduated dial for easy operation.

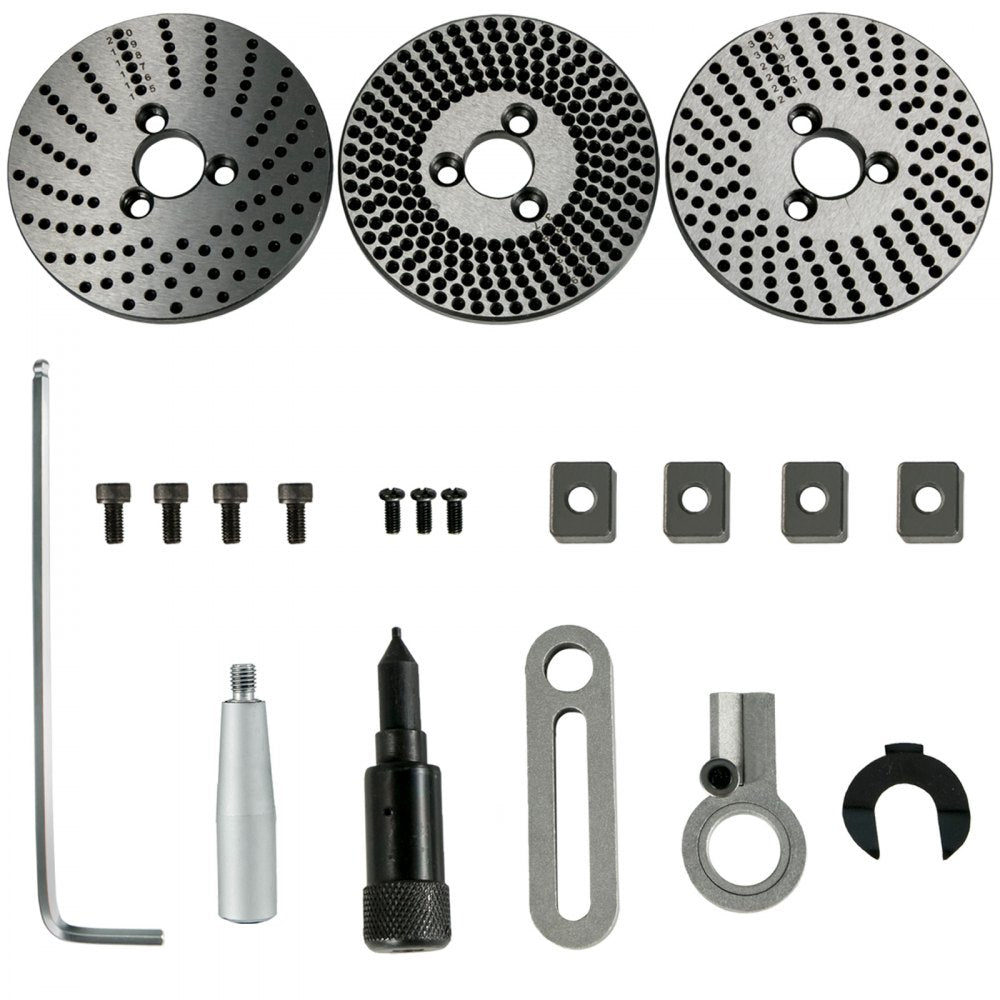

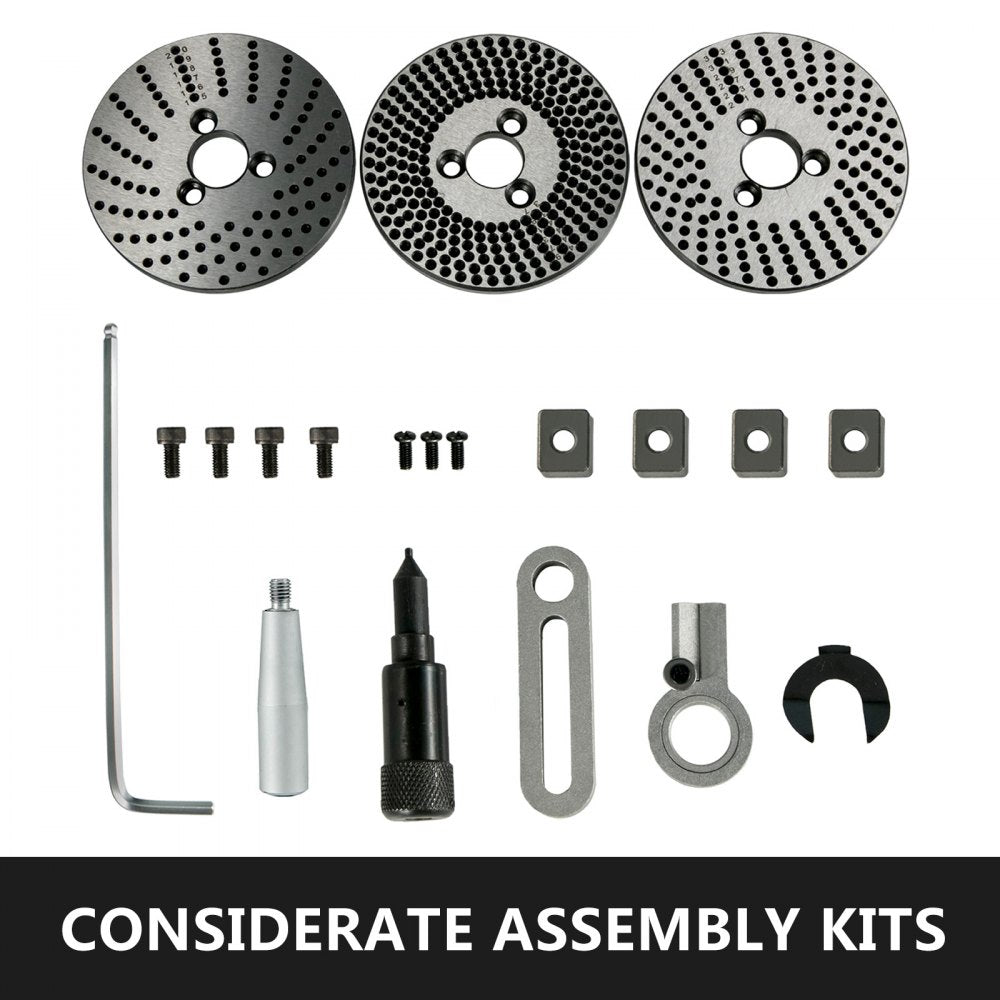

•Includes considerate assembly kits with dividing plates and tools.
•Milling, drilling, fixture boring, and various workshop tasks..
Specifications:
| Model | 6 inch Rotary Table |
| Material | Cast Iron |
| Centre Bore | MT-2 |
| T-slot Diameter | 1/2 inch / 14 mm |
| Table Dimension | 6 inch / 150 mm |
| Plates | {'Plate A': '15, 16, 17, 18, 19, 20', 'Plate B': '21, 23, 27, 29, 31, 33', 'Plate C': '37, 39, 41, 43, 47, 49'} |

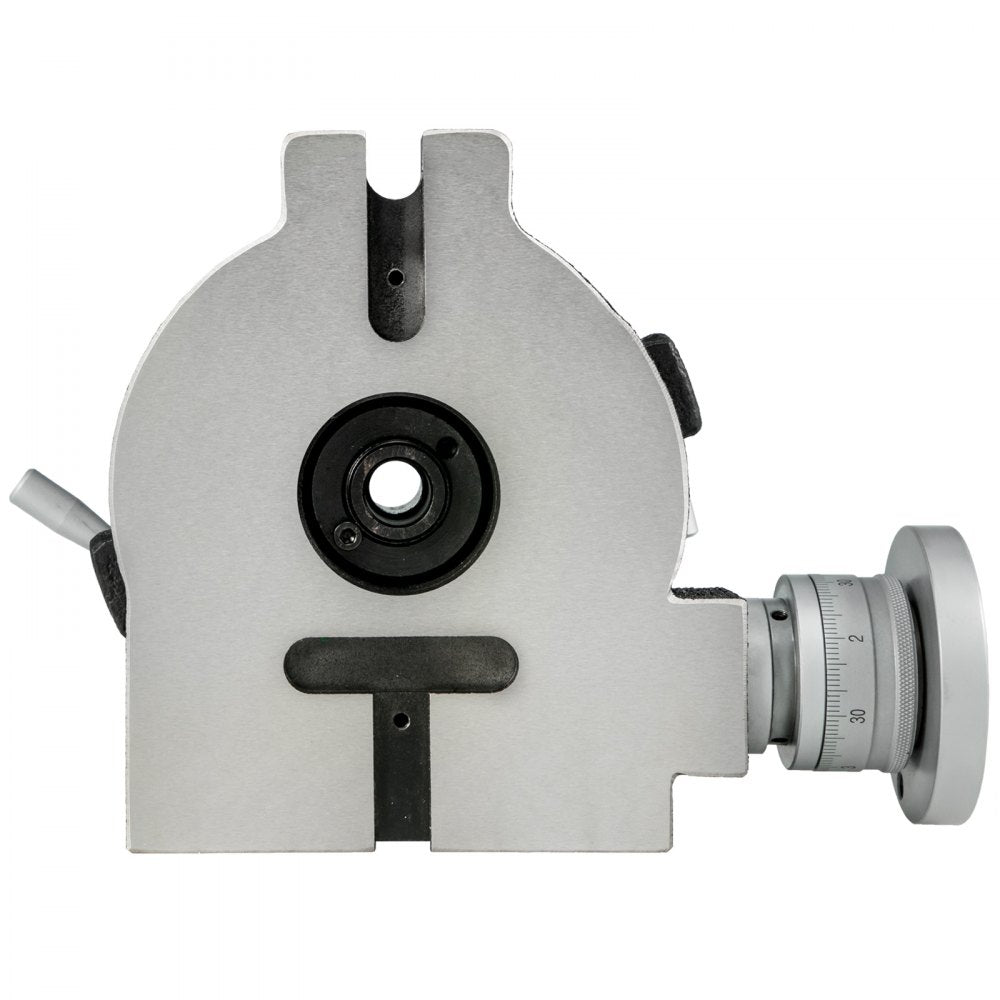

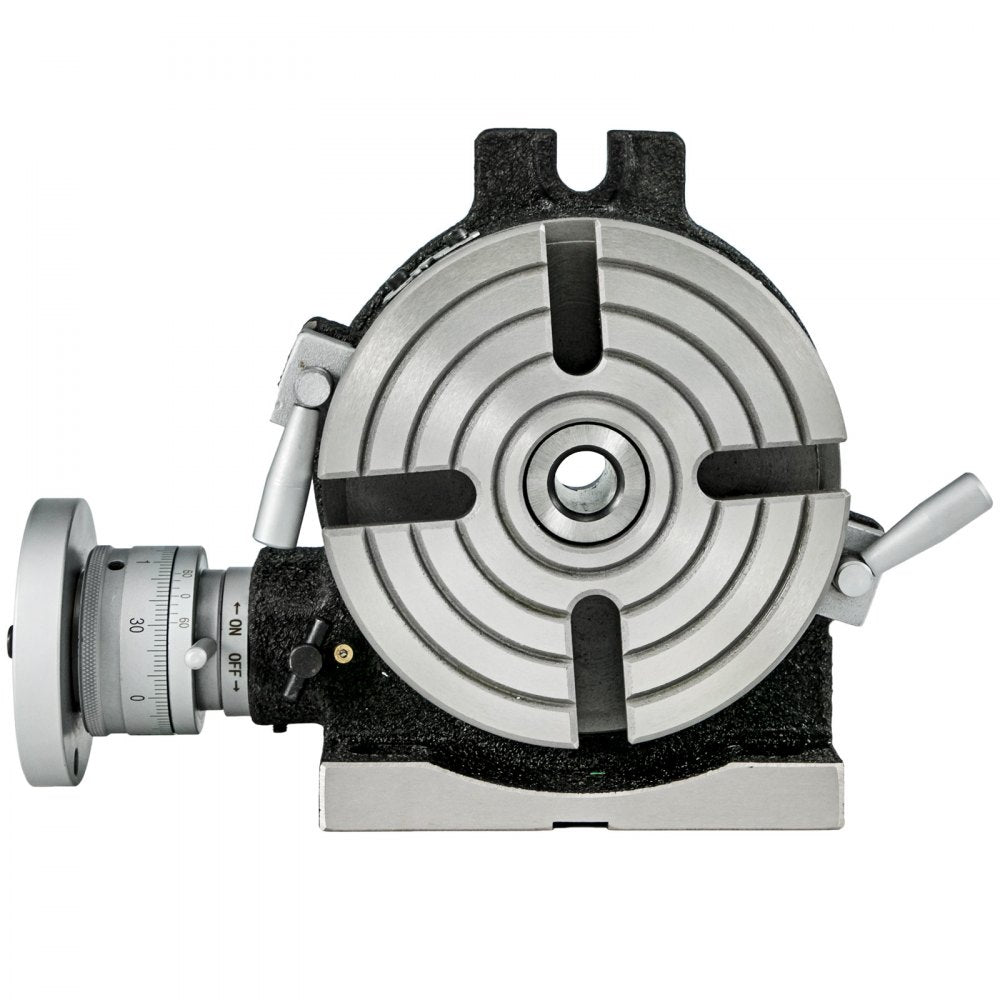

| Setting Position | Horizontal / Vertical |

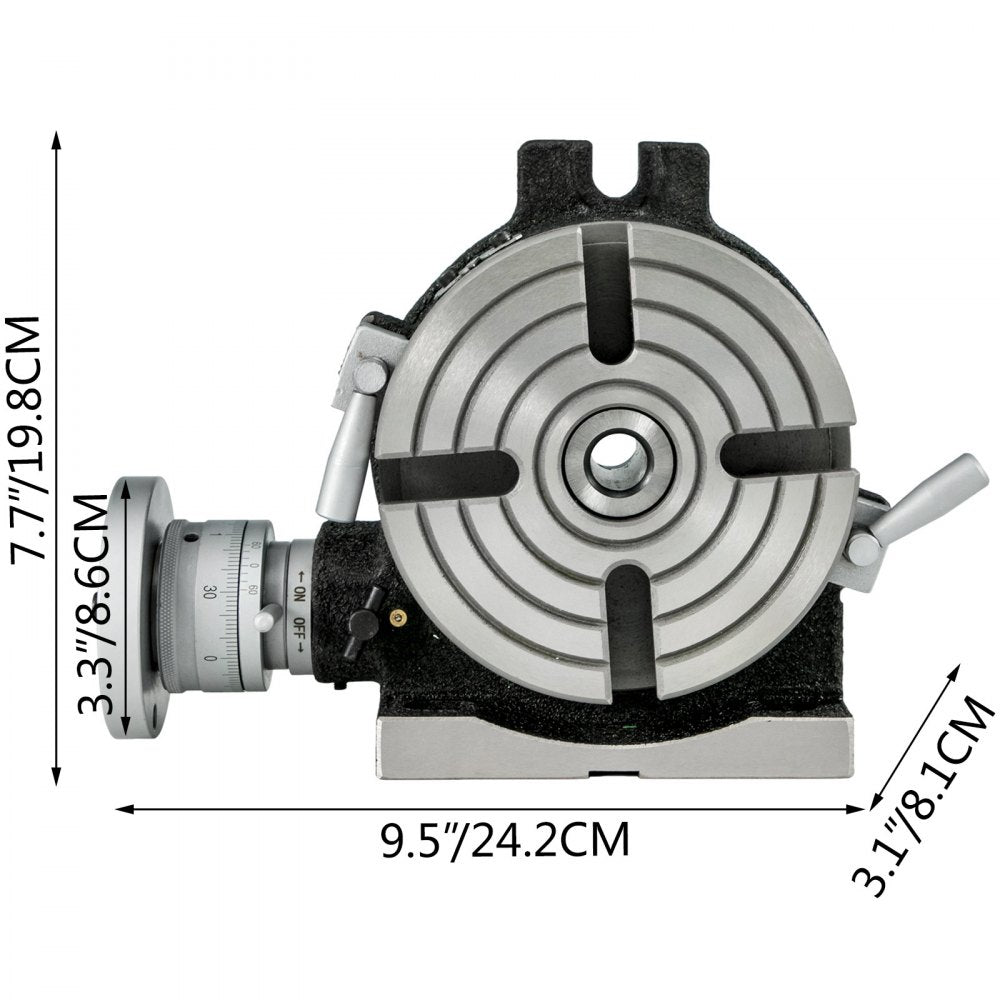

| Item Dimensions | 9.5 x 3.1 x 7.7 inch / 24.2 x 8.1 x 19.8 cm |
