Description:

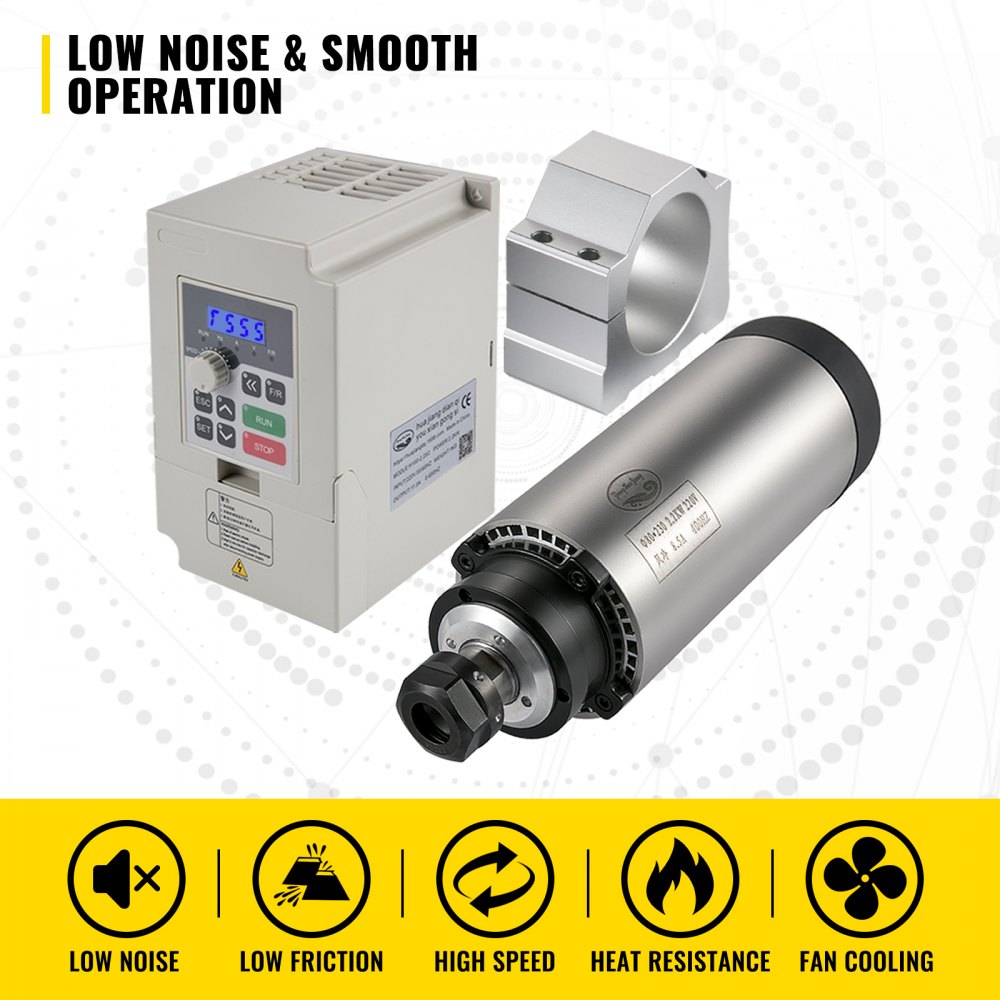

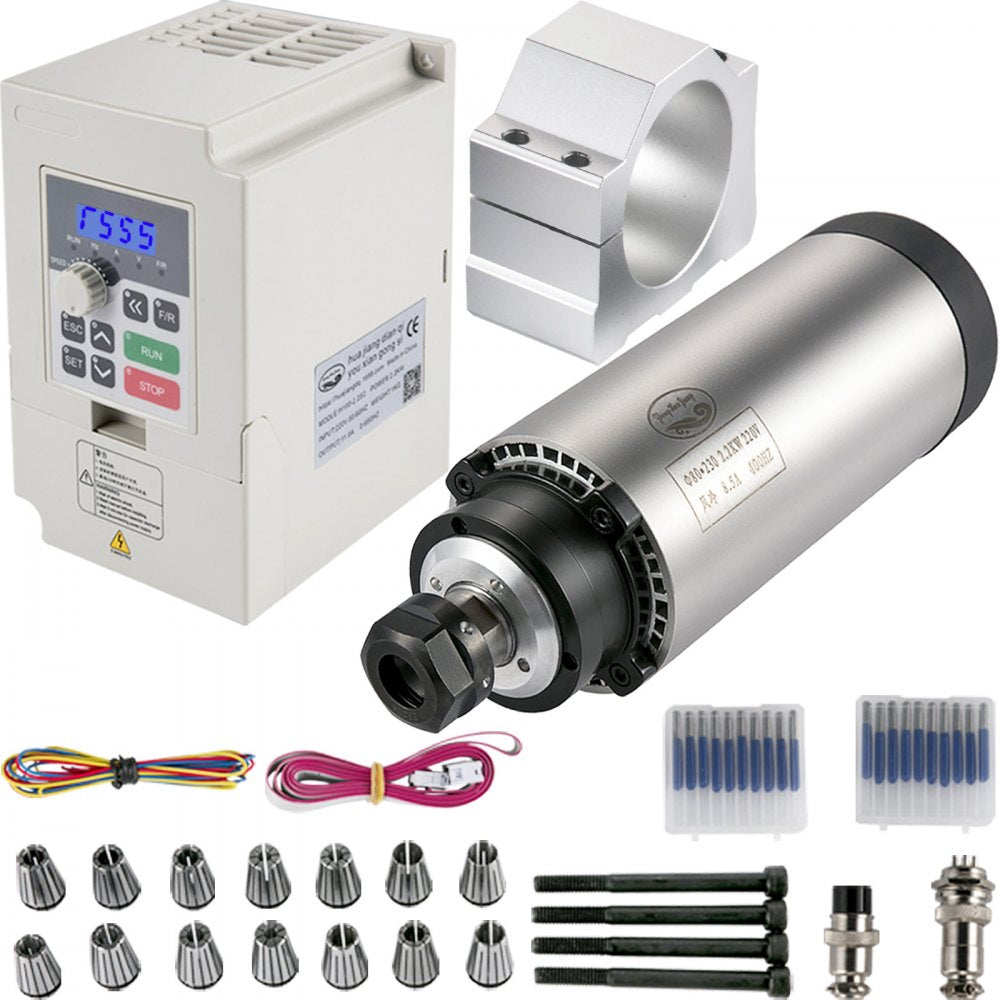

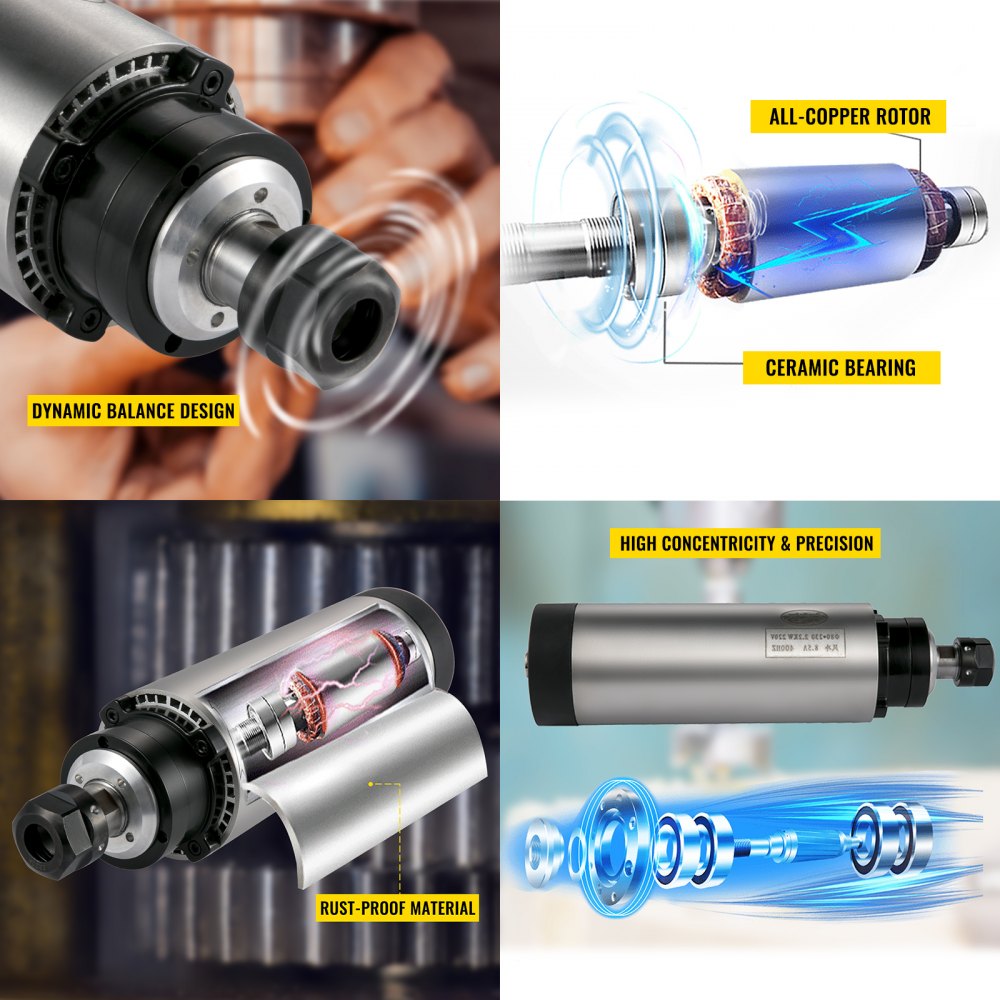

Elevate your machining projects with this premium CNC spindle motor kit, which features a high-performance spindle motor, a versatile variable frequency drive, and a durable aluminum clamp Engineered to withstand high temperatures and minimize both noise and friction, this kit excels in high-speed operations It's ideal for use in engraving machines, allowing for precision carving of diverse materials such as wood, stone, and metal.
Features and Benefits:
•Low noise and smooth operation.
•Durable aluminum spindle clamp.

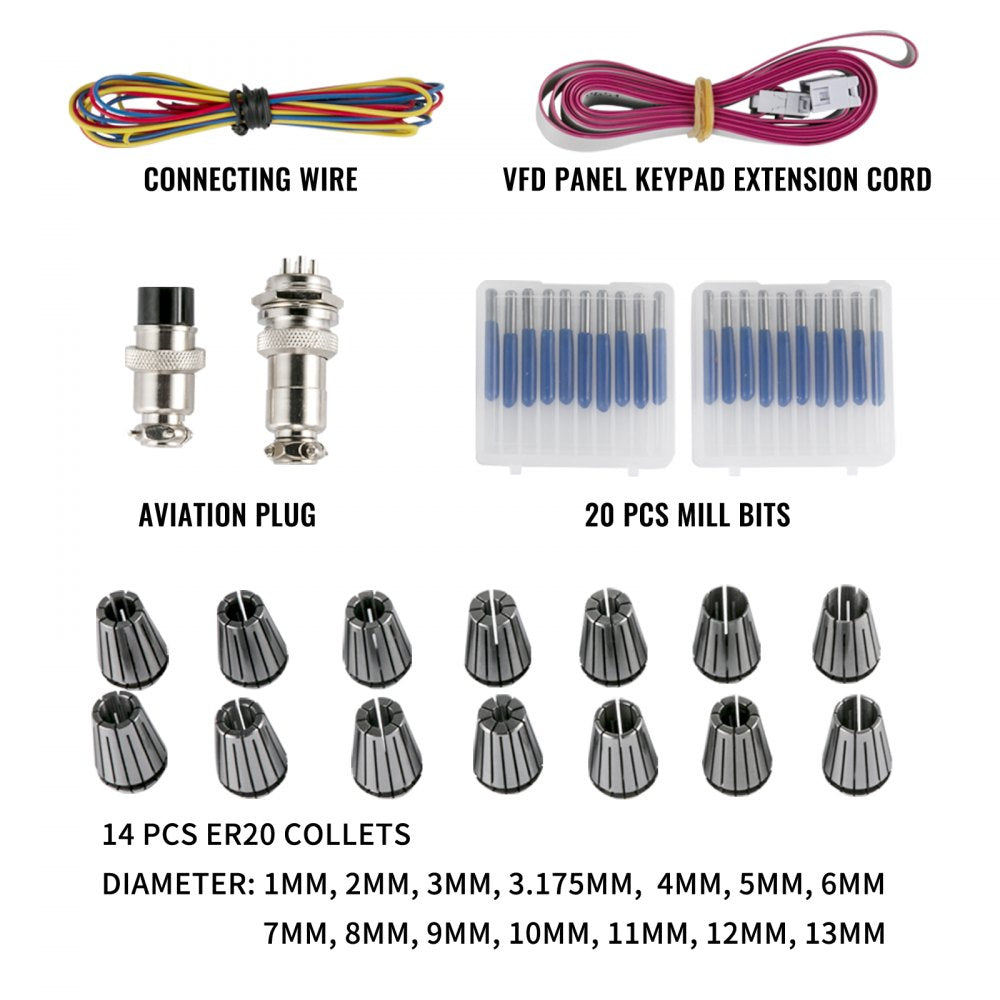

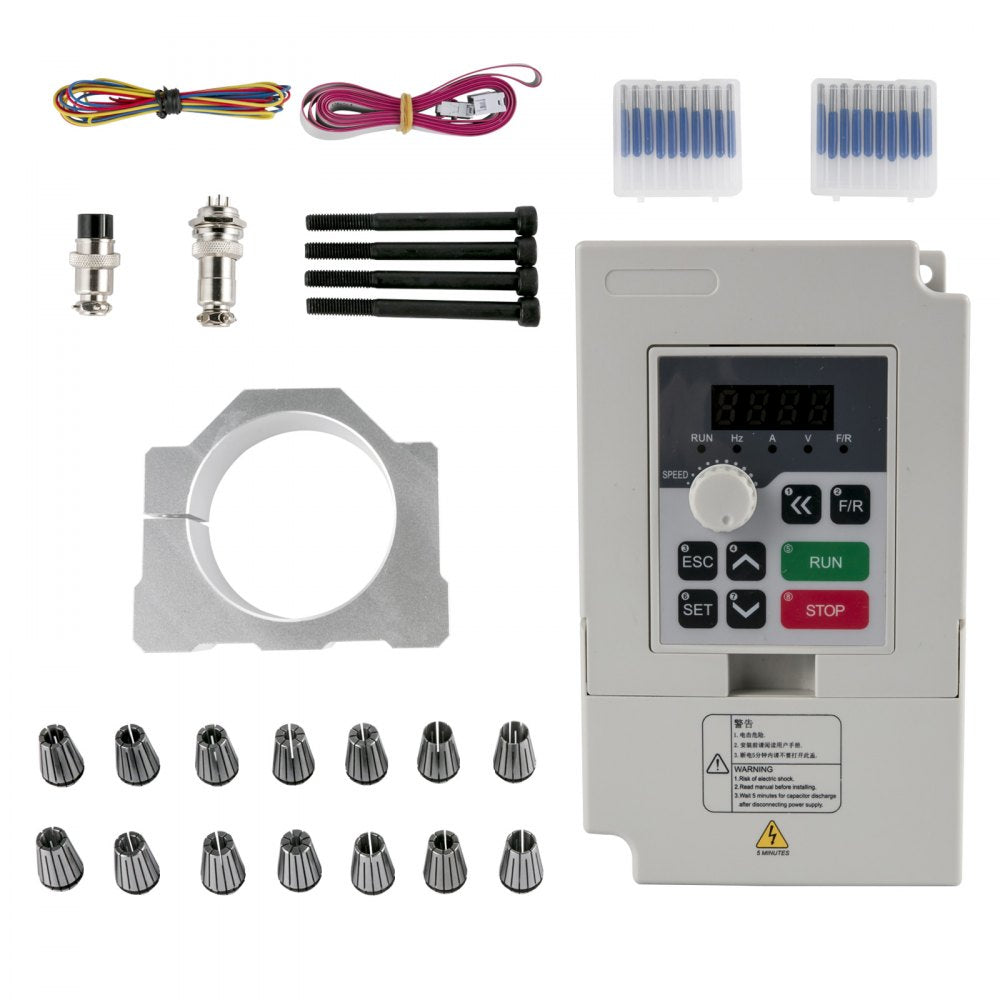

•Comes with complete accessory kit including 14 ER20 collets and 20 milling bits.
•Easy installation and removal due to lightweight construction.
•Engraving machine for carving wood, stone, metal and other materials.
Specifications:

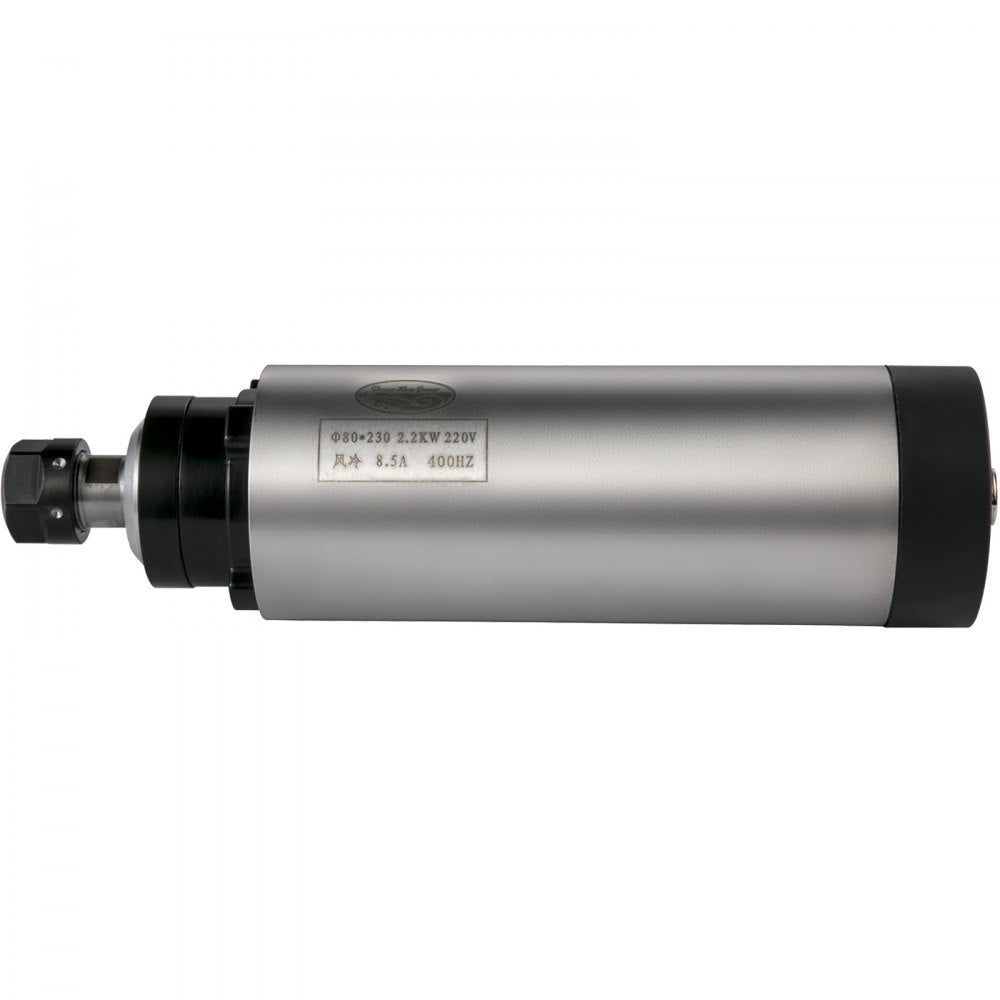

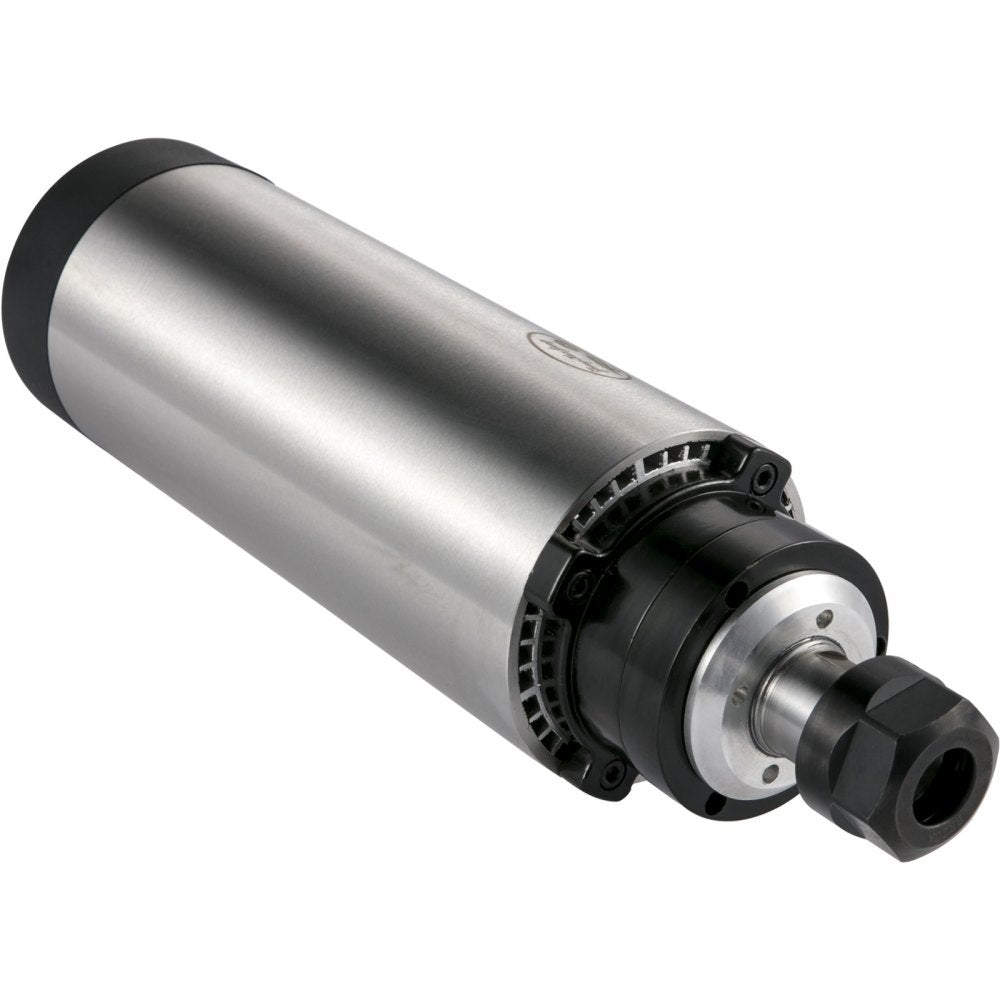

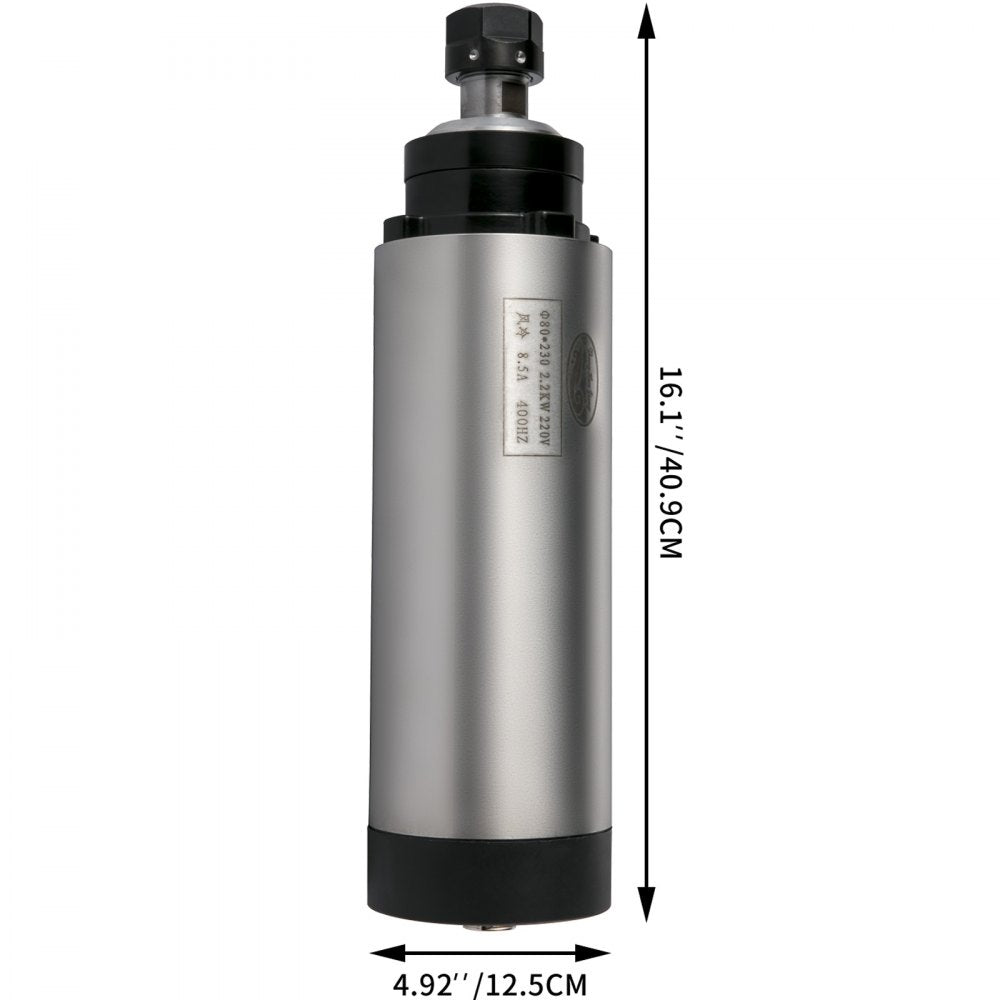

| Spindle Motor Power | 2.2KW |
| Voltage | 220V |
| Frequency | 400 Hz |
| Speed | 0-24000 RPM |
| Current | 8.5A |
| Collet Chuck | ER20 |

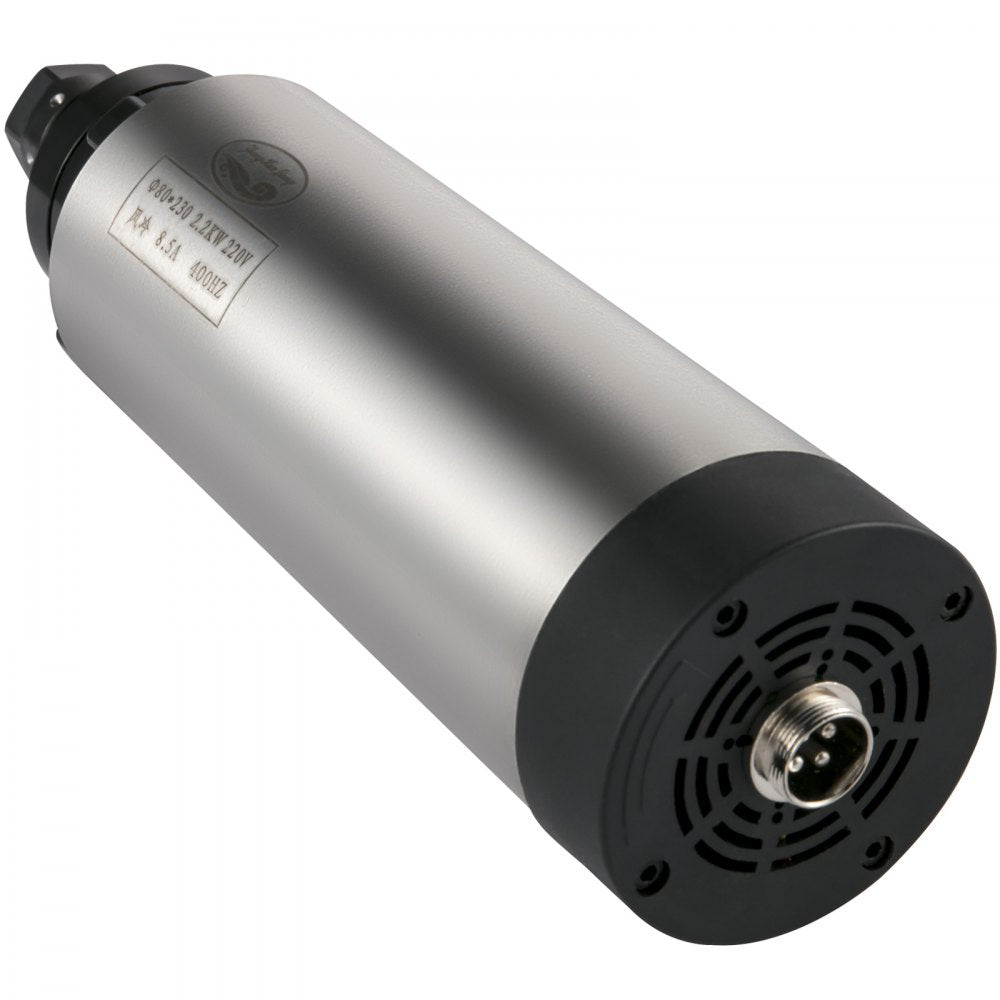

| Cooling | Air-cooled |
| Accuracy | 0.002" (0.05 mm) |
| Runout Off | 0.002" (0.05 mm) |
| Bearings | 6002/7005 |

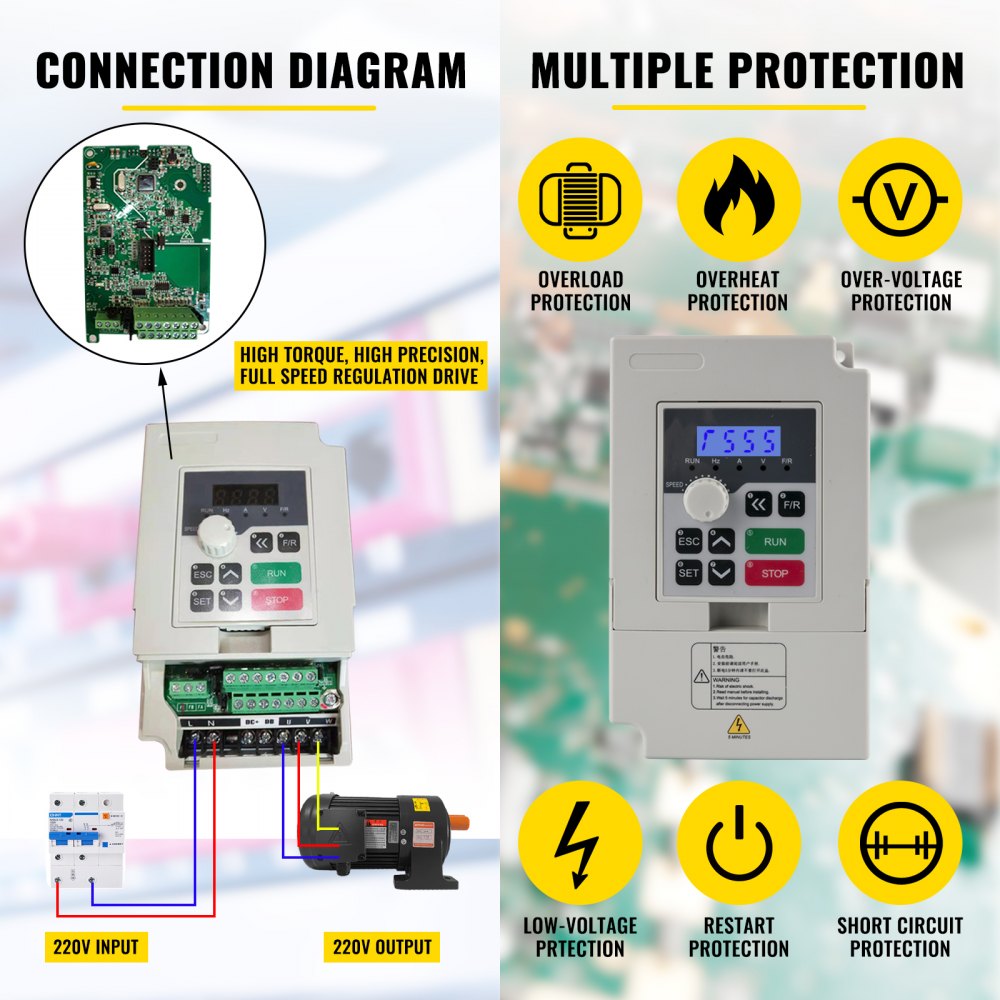

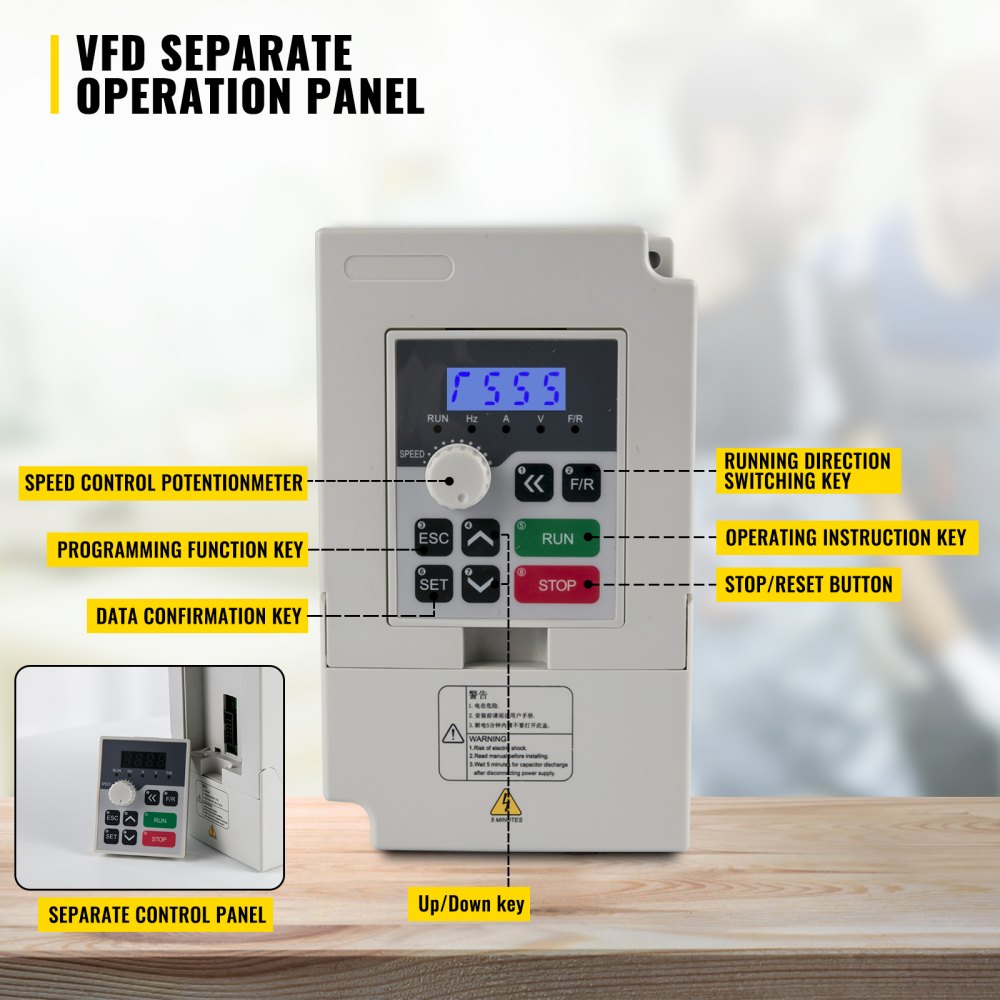

| Variable Frequency Drive Power | 2.2 KW |
| Input Voltage | 220V |
| Output Voltage | 220V |
| Input Phase | 1 Phase |
| Output Phase | 3 Phase |
| Input Frequency | 50 Hz |
| Output Frequency | 0-400 Hz |
| Output Current | 11A |
| Package Size | 3.50" x 5.83" x 4.68" (89 x 148 x 119 mm) |

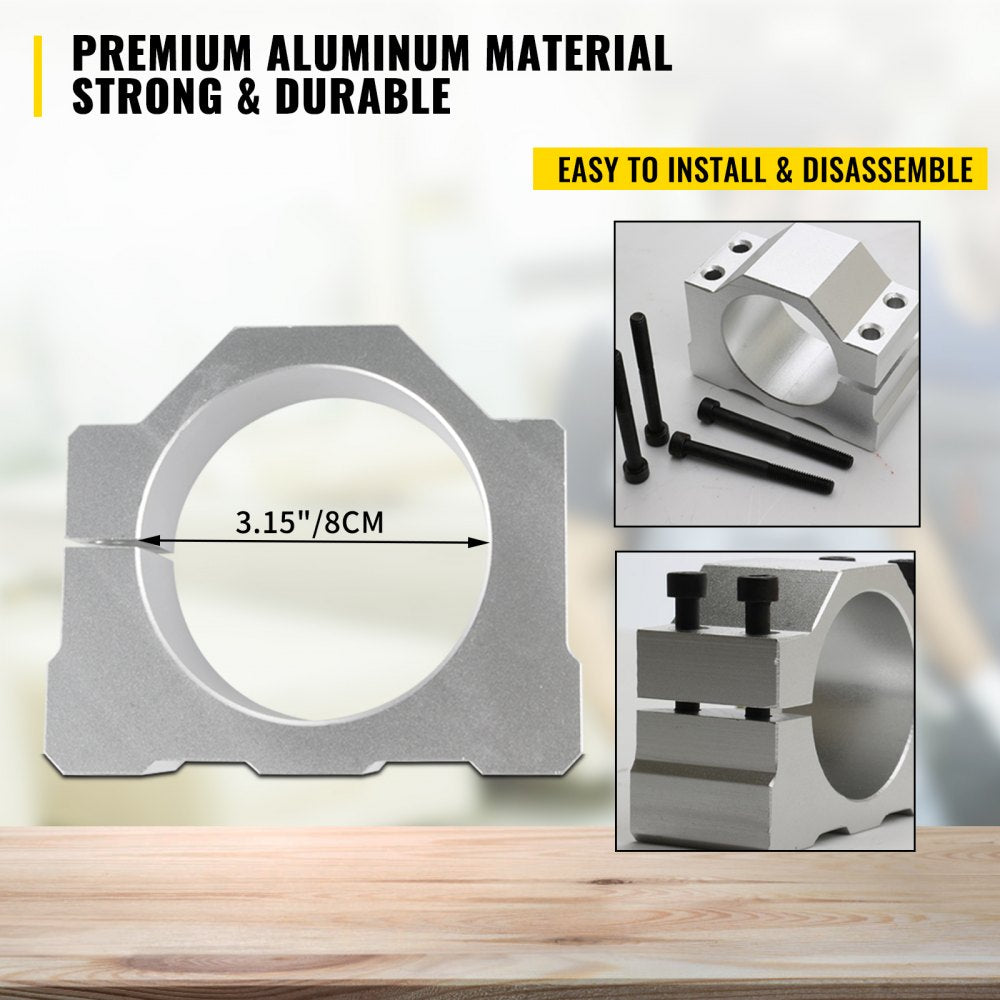

| Spindle Clamp Diameter | 3.15" (80 mm) |
| Spindle Clamp Material | Aluminum |
| ER20 Collet Diameter | 0.12/0.13/0.16/0.2/0.24/0.3/0.28/0.32/0.35/0.4/0.43/0.47/0.5/0.51-inch (3/3.175/4/5/6/6.35/7/8/9/10/11/12/12.7/13 mm) |
| ER20 Collet Outer Diameter | 0.83" (21 mm) |
| ER20 Collet Height | 1.24" (31.5 mm) |
