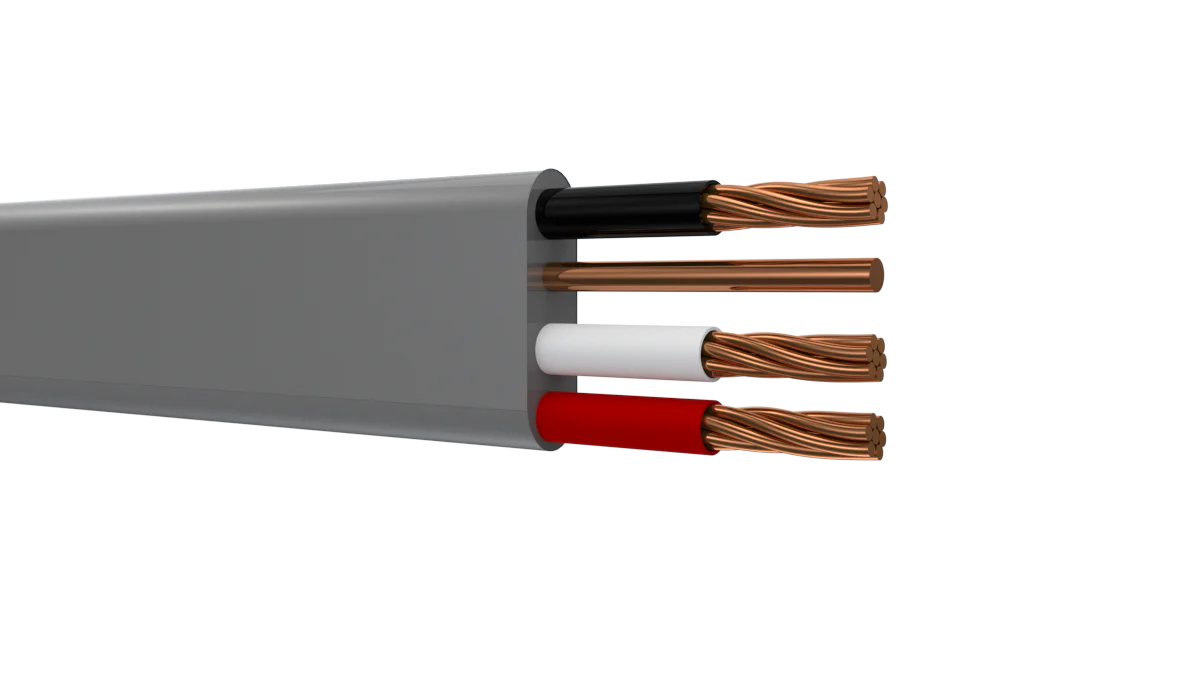

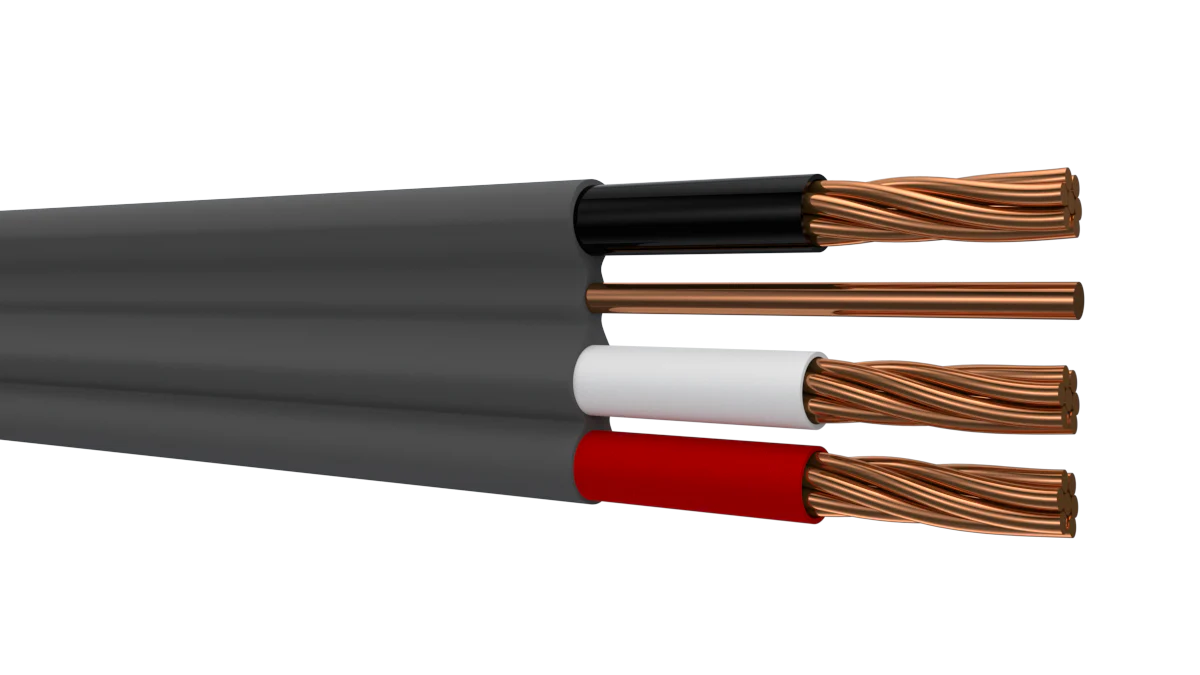

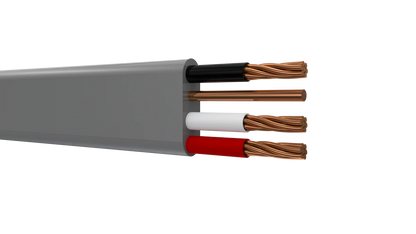

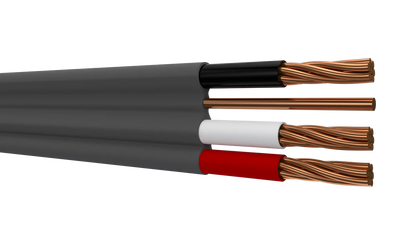

500' 8/3 UF-B Stranded Copper Underground Feeder Cable 600V

SKU: SKU: NES0101 Download PDF

Select a Variant:

500' 8/3 UF-B Stranded Copper Underground Feeder Cable 600V

SET THE QTY:

Now $1,210.00 Web pricing policy

~~BEFORE~~ Now $1,210.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Applications Features Specifications Reviews

Product Information

Also Known As:

8/3 Copper Underground Feeder Cable, 8/3 Copper Direct Burial Feeder Cable, 8/3 Branch Circuit Wiring Cable, 8/3 UF-B Wire, 8/3 Copper Direct Earth Burial Cable, 8/3 Copper Branch Circuit Cable, 8/3 UF-B Direct Burial Wire, 8/3 UF Wire, 8/3 direct burial wire, 8/3 underground wire, 8/3 outdoor wire, 8/3 underground electrical wire, 8/3 uf b wire w ground

Conductor:

UF-B wire has solid or stranded Type THHN/THWN that are laid parallel with an uninsulated grounding conductor. The conductors are made of stranded annealed bare copper.

Insulation:

The cable is insulated with a PVC jacket with a nylon covering. It is resistant to moisture, grease, corrosion, sunlight, and chemicals.

Compatible with Manufacturer
Service Wire & Co :	UFB8/3G8
Southwire :	147835

Resources

Applications

8/3 UF-B Applications:

An underground feeder cable's prime purpose is to bring the power from the residential, commercial, and industrial buildings to outdoor constructions, which include pumps and lighting constructions. The electrical cable is suitable for direct burial, as well as direct exposure to the sunlight. It is permitted for use as a feeder or branch circuit cable if provided with overcurrent protection. Copper Underground Feeder Cable UF-B has a rating of 600 volts.

UF-B Common Applications:

Underground Feeding
Outdoor Lighting
Outdoor Outlets
Direct Burial
Wet or Damp Locations
Pump Systems
HVAC Systems
Underground Branch Circuits
Indoor Applications Exposed to Moisture

Particular applications for size 8/3 UF-B:

240V Circuits With a Neutral
Subpanels
Well Pumps
Larger HVAC Systems

Features

Standards:

•Ul Standard 493 for Thermoplastic-Insulated Underground Feeder and Branch Circuit Cables
•For use in interior wiring in wet, dry or corrosive locations under recognized wiring methods of the National Electrical Code (NEC)
•Acceptable to be installed as a Non-Metallic Sheathed Cable following NEC Article 339-3 (4)
•Acceptable for use per NEC Articles 300-4(b) and 339
•ASTM - B3 and B-8
•UL Standard 83
•Federal Specification A-A-59544
•RoHS/ REACH

•Allowable Ampacity for 8/3 Underground Feeder Cable UF-B Copper 600V(Direct Burial): 40 Amps

•Allowable Ampacity 8/3 Underground Feeder Cable UF-B Copper 600V in Duct: 40 Amps

Specifications

•Size AWG: 8
•Weight per 1,000 ft: 344 lbs
•Outside Diameter: 1.059 Inch X.319 Inch
•Conductors: 3
•Number of Strands: 7
•Jacket: PVC
•Insulation and Jacket •Thickness: 35 mils
•Jacket Thickness: 45 mils
•Ground Size: 8
