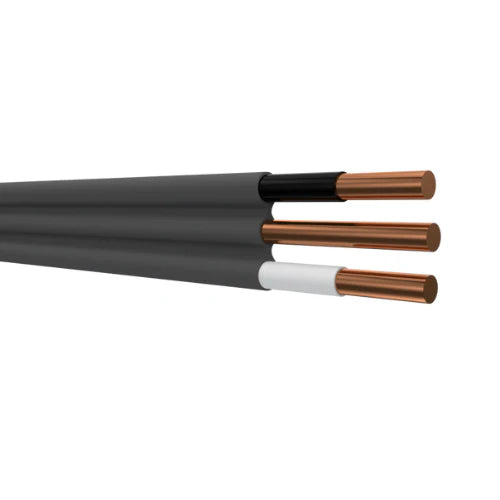

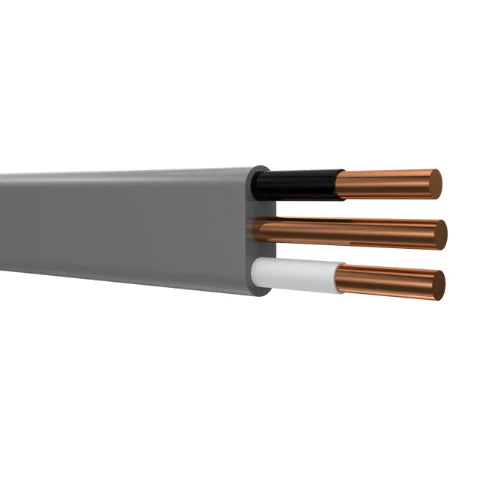

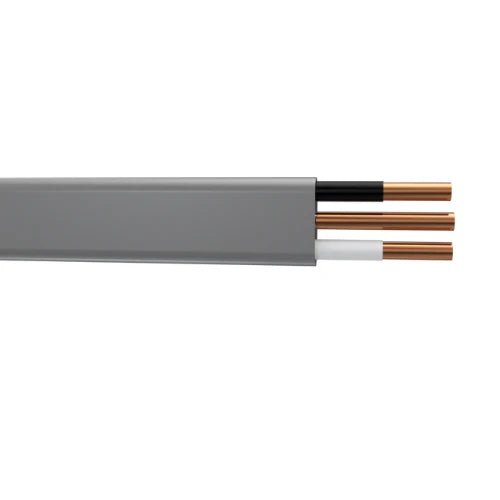

14/2 UF-B Solid Copper Underground Feeder Cable 600V

14/2 UF-B Solid Copper Underground Feeder Cable 600V

SKU: NES079   Download PDF

Select a gauge:
  • 14/2 UF-B Solid Copper Underground Feeder Cable 600V
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.48 /FT   Web pricing policy
BEFORE   Now $0.48 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

Also Known As:

14/2 Copper Underground Feeder Cable, 14/2 Copper Direct Burial Feeder Cable, 14/2 Branch Circuit Wiring Cable, 14/2 UF-B Wire, 14/2 Copper Direct Earth Burial Cable, 14/2 Copper Branch Circuit Cable, 14/2 UF-B Direct Burial Wire, copper wire, ufb wire

Conductor:

UF-B wire has solid or stranded Type THHN/THWN that are laid parallel with an uninsulated grounding conductor. The conductors are made of solid annealed bare copper.

Insulation:

The cable is insulated with a PVC jacket with a nylon covering. It is resistant to moisture, grease, corrosion, sunlight, and chemicals.



Compatible with Manufacturer
Service Wire Co : UFB14/2G
Southwire : 130542
Resources
Applications
14/2 UF-B Applications:

An underground feeder cable's prime purpose is to bring the power from the residential, commercial, and industrial buildings to outdoor constructions, which include pumps and lighting constructions. The electrical cable is suitable for direct burial, as well as direct exposure to the sunlight. It is permitted for use as feeder or branch circuit cable if provided with overcurrent protection. Copper Underground Feeder Cable UF-B has a rating of 600 volts.
Features
Standards:

•Ul Standard 493 for Thermoplastic-Insulated Underground Feeder and Branch Circuit Cables
•For use in interior wiring in wet, dry or corrosive locations under recognized wiring methods of the National Electrical Code (NEC)
•Acceptable to be installed as a Non-Metallic Sheathed Cable following NEC Article 339-3 (4)
•Acceptable for use per •NEC Articles 300-4(b) and 339
•ASTM - B3 and B-8
UL Standard 83
•Federal Specification A-A-59544
•RoHS/ REACH

•Allowable Ampacity for Direct Burial: 15

•Allowable Ampacity in Duct: 15
Specifications
•Size AWG: 14
•Weight per 1,000 ft: 70 lbs
•Outside Diameter: 423X168
•Conductors: 2
•Number of Strands:1
•Jacket: PVC
•Insulation and Jacket •Thickness: 19 mils
•Jacket Thickness: 30 mils
•Ground Size: 14
