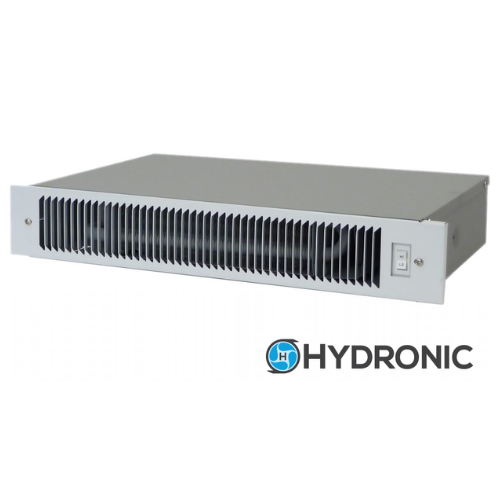

4000/5100 BTU Under Cabinet Hydronic Heater w/ Aqua & Fan SW White

About :

• The HT Series Kick space hydronic heater uses the energy from a building’s existing hot water source to offer efficient, whisper quiet operation.
• With a compact, space-saving design, it can be inconspicuously installed in the kick-space area at the base of kitchen and bathroom cabinets.

Also Known As :

King Electric Heaters, King Hydronic Heaters, Hydronic Heaters, Under-Cabinet Heater, Model MT, King Model MT Series.

Common Applications :

• Home Heating : Hydronic heating is often used to provide warmth in residential buildings.
• Radiant Floor Heating : This is a popular application of hydronic heating in which hot water is circulated through pipes or tubes installed in the floor.
• Commercial Buildings : Hydronic heating systems are suitable for heating large commercial spaces, such as offices, warehouses.

Standards :

• ISO Standards
• National and Local Building Codes
• Boiler and Radiator Standards

Specifications :

• Fins Per Inch : 8
• Ft. Of Water Pressure Drop @ 2 GPM : 0.54
• Amps : 0.51A
• Color : White
• RPM : 1800
• CFM : 76
• UPC : 093319211229

Features :

• Under Cabinet, Fan-Driven, Zone-Controlled Heat
• Heat Only The Rooms Which Need It, Borrowing Energy From What’s Already  There: The Hot Water Heater.
• Compatible With Typical Hot Potable Water sources
• Tangential Blowers For Whisper Quiet Operation
• Fast Coil Heating For Heat Transfer
• 1/2” Trade Size Copper Tubes
• Flow-Through Design
• 4 or 8 Aluminum fins per inch
• Permanently Lubricated Motor
• Hi / Off / Lo Fan Switch
• Aqua Stat Included
• For Use With HW Series Thermostats
• ETL Certified for USA and Canada
• Proudly Made in the USA with U.S. & Global Materials

Construction :

• Motor : 2 speed shaded pole impedance protected. Permanently lubricated. Bronze bearings.
• Blower : Tangential blower to provide 83 CFM or 76 CFM of air. Quiet operation of less than 53 dB.
• Grill : 20 gauge mild Steel, louvered with Nickel-plated grill screws.
• Water Connections : 5/8″ bare Copper tubes de-burred. Tested at 300 PSI for leaks.
