208V 12KW 1 Phase Electric Furnace ECM Motor

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

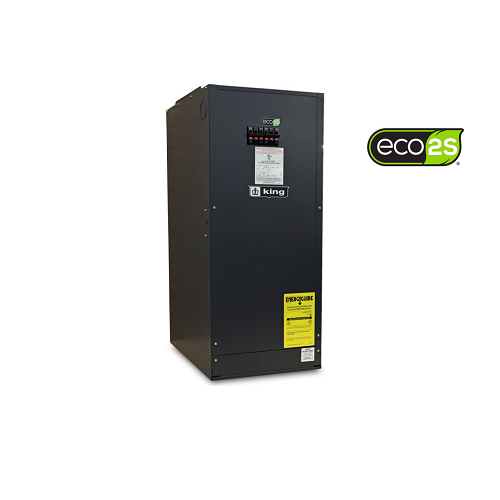

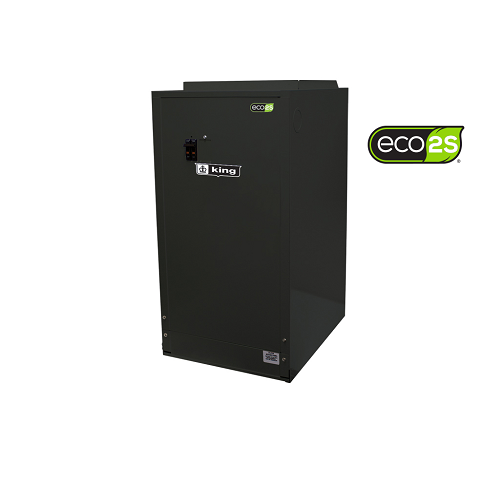

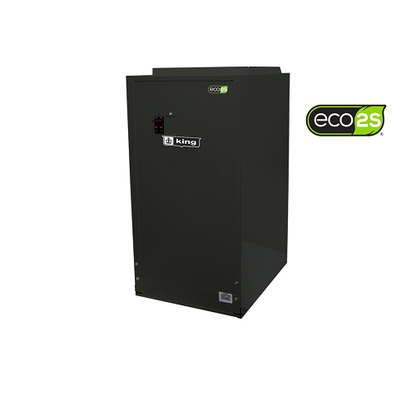

King KFS2012-1-2S1-ECM Electric Furnace 208V 12KW 1PH

Description:

ENERGY SAVINGS meets MAXIMUM COMFORT with the ECO2S Series ECM Motor 2 Stage Heating KF / KFS Furnaces. The ECO2S Series Model adds a state of the art electronically controlled motor and 2 heating stages for added comfort and Maximum Energy Savings.

Quiet operation and Multi-position mounting allows you to put it almost anywhere it will fit. Whether it is commercial, residential or process heating, this air furnace will do the job and give years of excellent maintenance-free service.

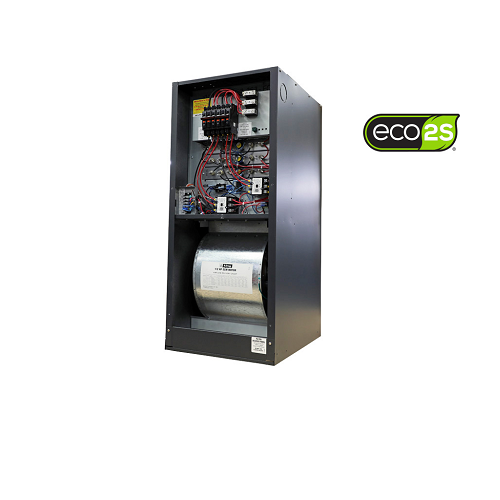

Transformer: Each furnace is equipped with a heavy duty low voltage (40 VA) transformer for the thermostat control circuit.

Time Delay Sequencer: Actuates heating element banks to minimize electrical surges in compliance with E.E.I. and N.E.M.A. standards.

Heating Elements: Quick heating, long life Ni-Chrome elements are sized to provide proper watt density for maximum heat dissipation.

Features:

• Energy Efficient ECM Motor
• 2-Stage Comfort Heating = 15% Savings (*Where Applicable)
• Heavy Duty Open Coil Element
• Sequenced Heating Elements
• Down Flow or Up Flow
• 16” x 20” x 1” Inlet Filter
• Welded Cabinet Design
• Horizontal or Vertical Mount
• Mobile Home Approved
• Breaker Disconnects
• Baked Enamel Finish
• Extended Life
• Standard 24 Volt Control
• Fan Only Relay
• Quiet Sound Insulated Cabinet
• Dual Inlet Industrial Blower
• Proudly Made in the USA with U.S. & Global Materials

Also Known as:

King Electric Heaters, Furnace, King Furnace, Model KF / KFS ECO2S
