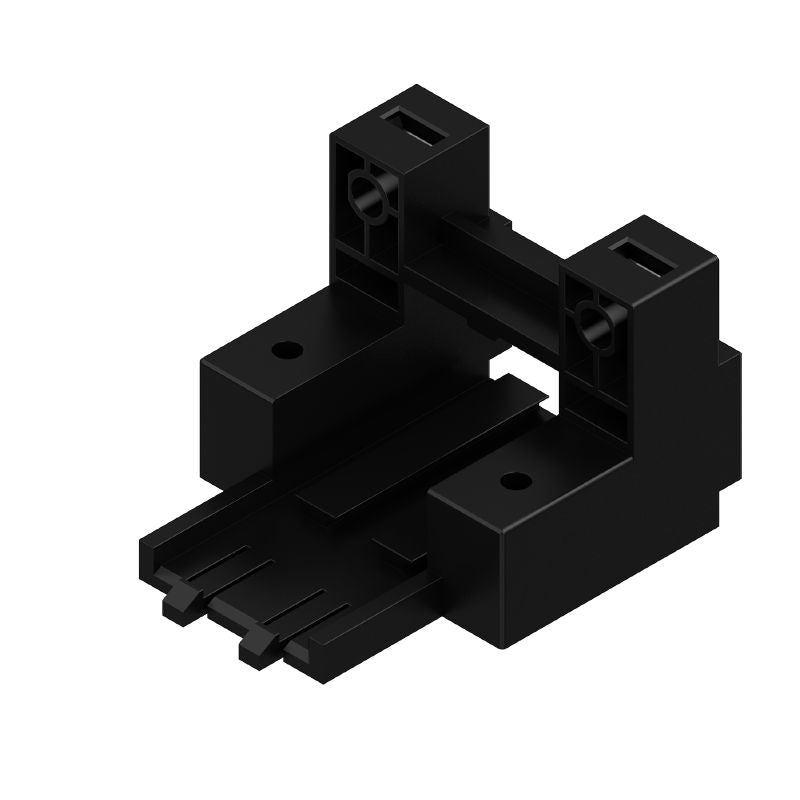

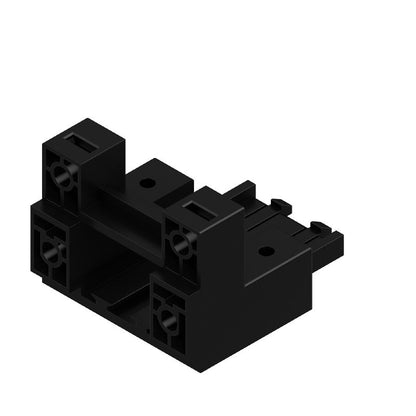

2838010000 - Black Two-Pole PCB Connector Mounting Block (Pack of 40)
2838010000 - Black Two-Pole PCB Connector Mounting Block (Pack of 40)
SKU: SKU: 2838010000 Download PDF
Select a Variant:
- 2838010000 - Black Two-Pole PCB Connector Mounting Block (Pack of 40)
- 2838010000 - Black Two-Pole PCB Connector Mounting Block (Pack of 40)
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:
Introducing a versatile PCB plug-in connector, thoughtfully crafted as a mounting block accessory This connector features a sleek black design and includes two poles, ensuring reliable performance Additionally, it adheres to RoHS regulations, confirming its environmentally friendly credentials.
Features and Benefits:
•Compliant with international standards and norms.
•Developed and manufactured under recognized guidelines.
Specifications:

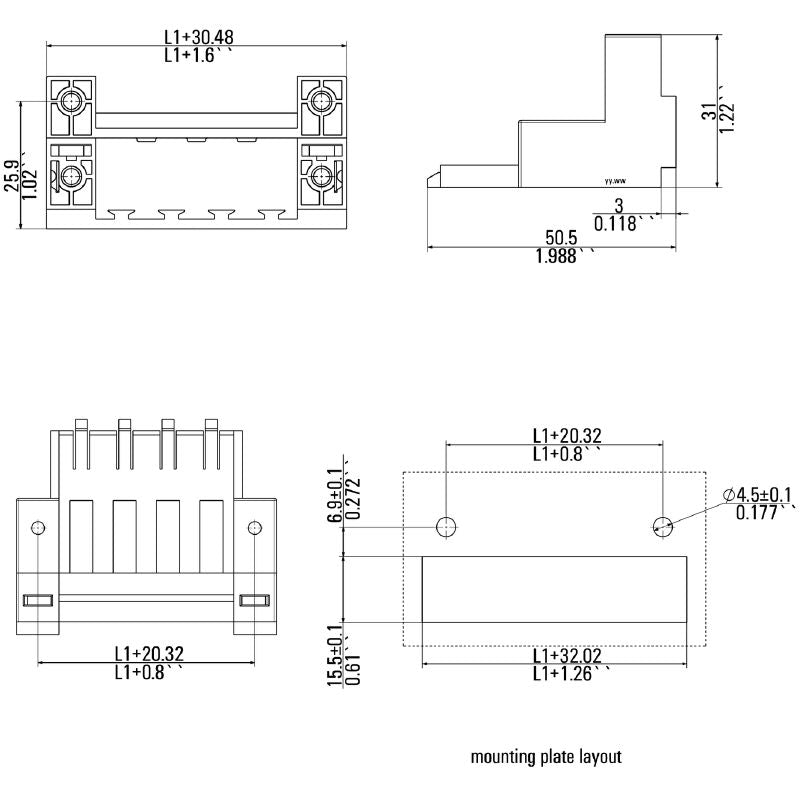

| Depth | 50.5 mm |
| Height | 31 mm |
| Width | 40.64 mm |
| Material | PA 66/6 |
| UL 94 flammability rating | V-0 |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 100 °C |
| Insulating material | PA 66/6 |
| Net weight | 13.494 g |
| GTIN (EAN) | 4064675436836 |
| Packing | Box |
| VPE length | 399 mm |
| VPE width | 219 mm |
| VPE height | 61 mm |
| Approvals | ROHS Compliant without exemption |
| Long term storage conditions | average temperature of 50 °C and maximum humidity 70%, 36 months |
| Tested standards | IEC 60664-1, IEC 61984 |
