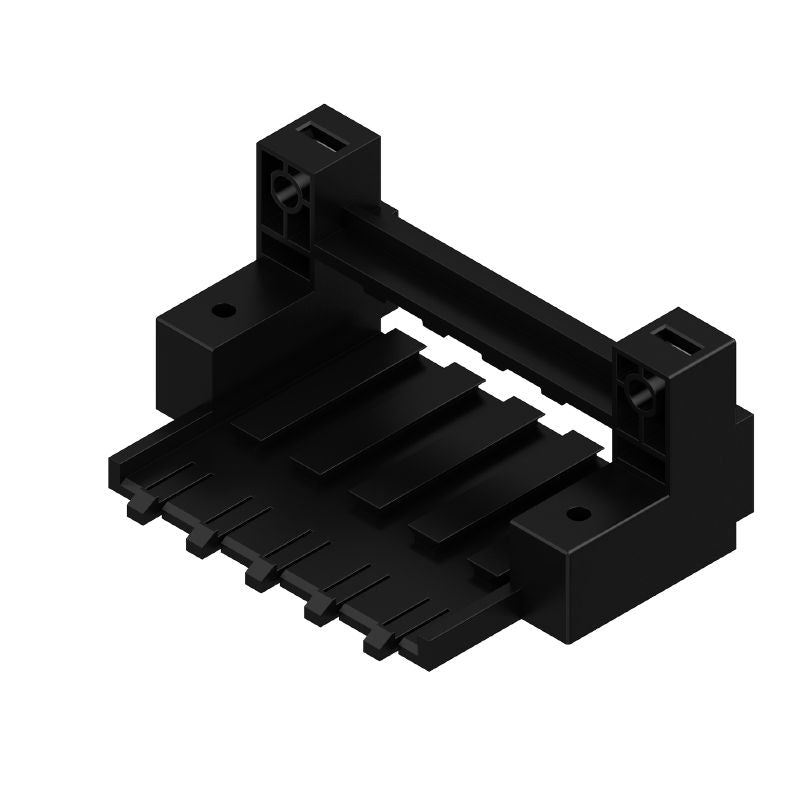

2838040000 - 5-Pole PCB Plug-In Connector with Mounting Block, Black, Box of 20 (Pack of 20)
2838040000 - 5-Pole PCB Plug-In Connector with Mounting Block, Black, Box of 20 (Pack of 20)
SKU: SKU: 2838040000 Download PDF
- 2838040000 - 5-Pole PCB Plug-In Connector with Mounting Block, Black, Box of 20 (Pack of 20)
- 2838040000 - 5-Pole PCB Plug-In Connector with Mounting Block, Black, Box of 20 (Pack of 20)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Discover this versatile PCB plug-in connector, accompanied by a black mounting block for easy installation Boasting five poles, it is packaged in sets of 20 to meet your project needs This connector is ROHS compliant and adheres to globally recognized standards, guaranteeing dependable performance while fulfilling essential specifications outlined in the data sheet Upgrade your electronic connections with this reliable and efficient component.
Features and Benefits:
•Compliant with ROHS without exemption.
•No SVHC present above 0.1 wt%.
•Insulating material made of PA 66/6.
•UL 94 flammability rating of V-0.
•Long-term storage capability at average temperatures of 50 °C and maximum humidity of 70% for up to 36 months.
Specifications:
| Depth | 50.5 mm |
| Height | 31 mm |
| Width | 71.12 mm |
| Storage temperature (min) | -40 °C |
| Storage temperature (max) | 70 °C |
| Operating temperature (min) | -50 °C |
| Operating temperature (max) | 100 °C |
| Packing dimensions (length) | 398 mm |
| Packing dimensions (width) | 220 mm |
| Packing dimensions (height) | 62 mm |
| Accepted standards | IEC 60664-1, IEC 61984 |
