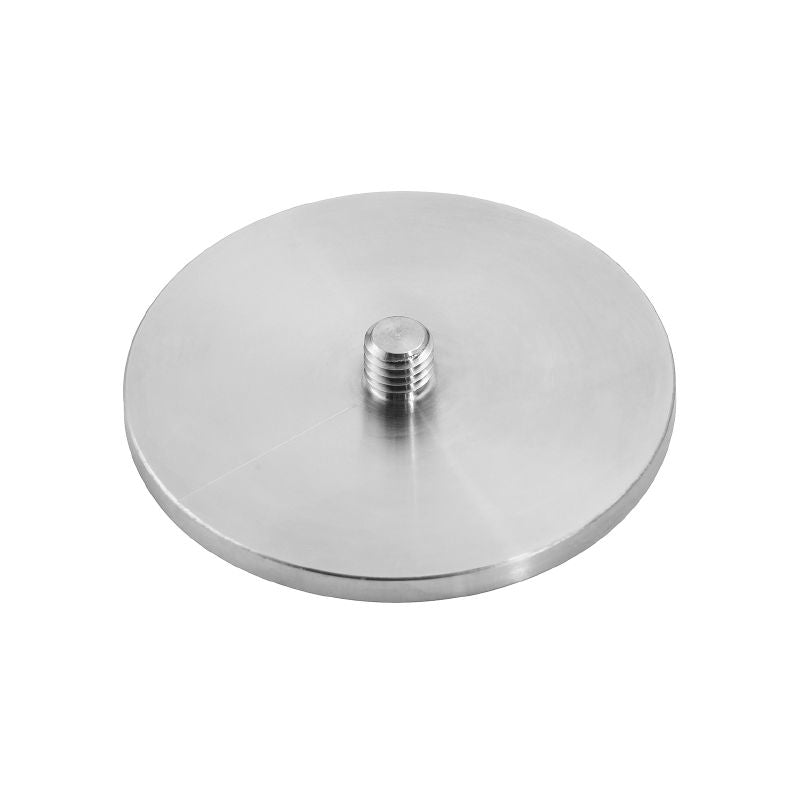

2811910000 - 64mm Mounting Adapter Plate, RoHS Compliant
2811910000 - 64mm Mounting Adapter Plate, RoHS Compliant
SKU: SKU: 2811910000 Download PDF
- 2811910000 - 64mm Mounting Adapter Plate, RoHS Compliant
- 2811910000 - 64mm Mounting Adapter Plate, RoHS Compliant
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the US67-PLATE64-STD adapter plate, a specialized accessory tailored for secure mounting This product will be available for purchase until July 30, 2025, after which it will be discontinued The plate boasts dimensions of 64 mm both in depth and width, with a height of 115 mm It adheres to RoHS compliance and contains no SVHC substances exceeding 01 wt% For installation, it utilizes a metric thread type, ensuring compatibility and ease of use in a variety of applications.
Features and Benefits:
•RoHS compliant.
•General ordering data available.

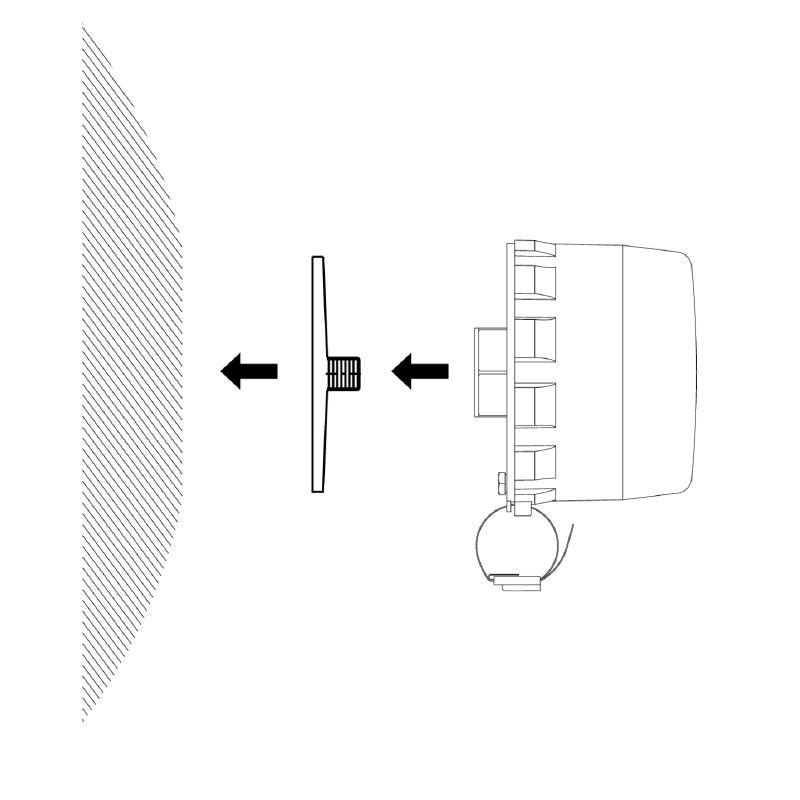

•Designed for mounting accessories.
Specifications:

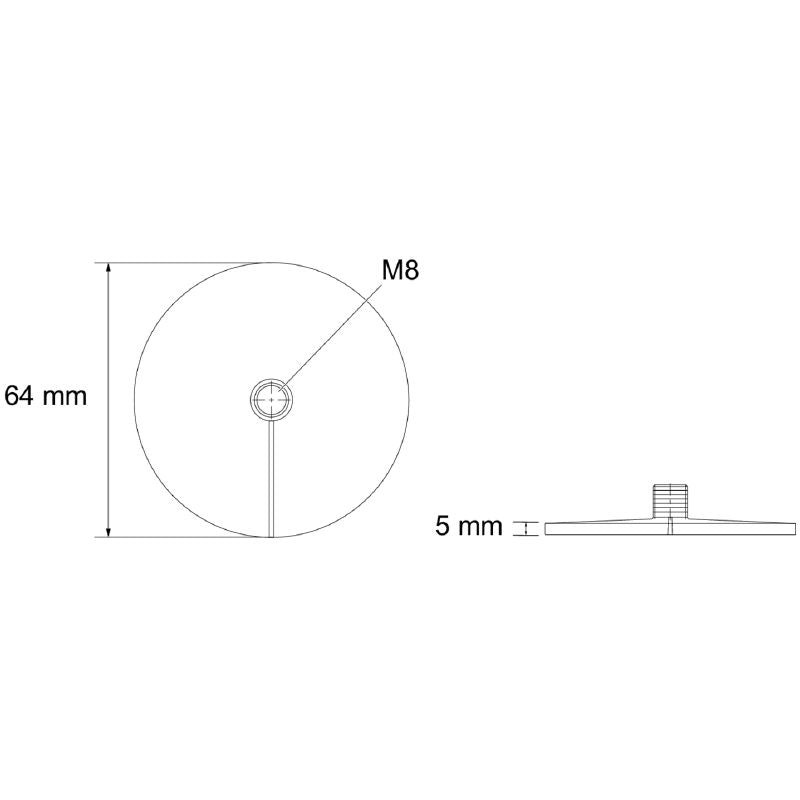

| Depth: | 64 mm (2.52 inches) |
| Height: | 11.5 mm (0.453 inches) |
| Width: | 64 mm (2.52 inches) |
| Diameter: | 64 mm |
| Net weight: | 132 g |
| Storage temperature: | -40 °C to 85 °C |
| Operating temperature: | -20 °C to 85 °C |
| Humidity at operating temperature: | 5 to 95% relative humidity, no condensation |
| Type of thread: | metric |
| ETIM 7.0: | EC003015 |
| ETIM 8.0: | EC003015 |
| ETIM 9.0: | EC003015 |
| ETIM 10.0: | EC003015 |
| ECLASS 9.1: | 27-20-14-92 |
| ECLASS 10.0: | 27-20-14-92 |
| ECLASS 11.0: | 27-20-14-92 |
| ECLASS 12.0: | 27-20-14-92 |
| ECLASS 13.0: | 27-20-14-92 |
| ECLASS 14.0: | 27-20-14-92 |
| ECLASS 15.0: | 27-20-14-92 |
