2751260000 - Wireless Vibration Sensor for Indoor/Outdoor Use
2751260000 - Wireless Vibration Sensor for Indoor/Outdoor Use
SKU: SKU: 2751260000 Download PDF
- 2751260000 - Wireless Vibration Sensor for Indoor/Outdoor Use
- 2751260000 - Wireless Vibration Sensor for Indoor/Outdoor Use
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Capture every vibration with this advanced smart vibration sensor, perfect for both indoor and outdoor use Crafted from a combination of stainless steel and plastic, it ensures durability and strong protection against environmental factors while adhering to RoHS regulations The sensor operates effectively in extreme temperature ranges and features user-friendly options such as an adjustable alarm and flexible data transmission intervals for optimal monitoring.
Features and Benefits:
•Protection degree IP67 and IP66..
•Explosion protection type Ex e..

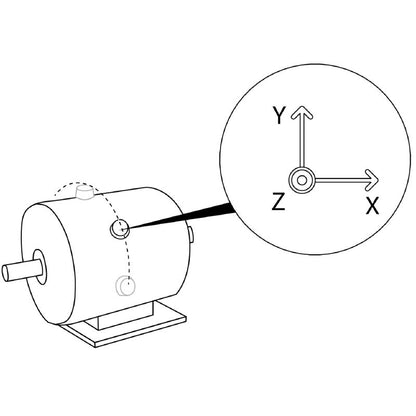

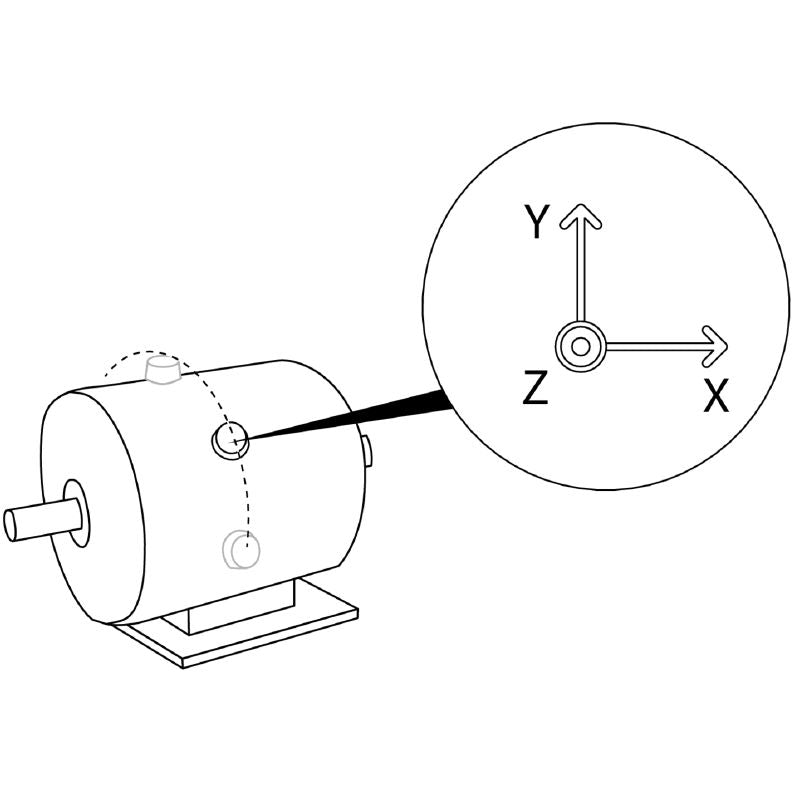

•3-axis broadband analysis for vibration monitoring..

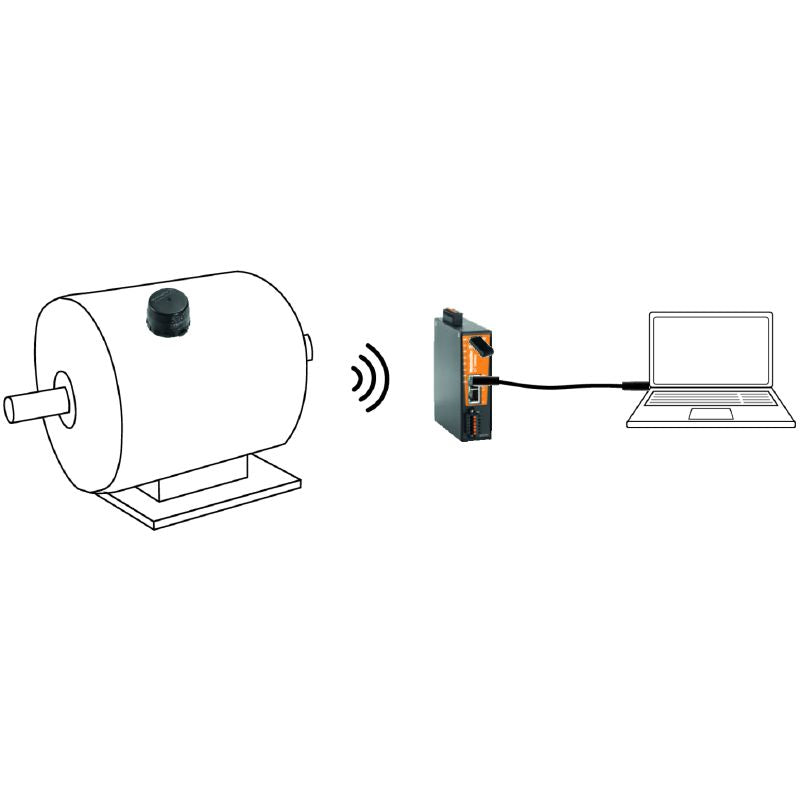

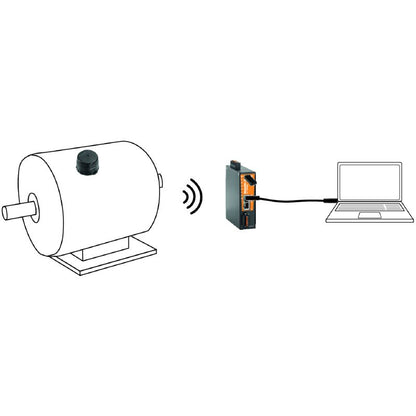

•Wireless communication with a maximum range of 90m (line-of-sight)..
•Configurable alarm function..
•Battery powered with a typical lifetime of 3 years..
•Various mounting options including screw and adhesive fastening..
•For indoor and outdoor use..
•Machine vibration assessment..
Specifications:
| Dimensions | {'Depth': '66 mm', 'Height': '55.5 mm', 'Width': '66 mm', 'Diameter': '66 mm'} |
| Operating temperature | -20 °C to 60 °C |
| Storage temperature | -40 °C to 80 °C |
| Humidity at operating temperature | 5...95 % relative humidity, no condensation |
| Vibration acceleration, max. | 16 gravity g |
| Vibration acceleration, min. | -16 gravity g |
| Frequency range | {'min': '10 Hz', 'max': '3,300 Hz'} |
| Measured temperature value | {'min': '-20 °C', 'max': '60 °C'} |
| Sampling frequency | 6.6 kHz |
| Type of sensor | {'Vibration': 'tri-axial MEMS', 'Temperature': 'Temperature MEMS'} |
| Power supply | {'Battery size': 'AA/Mignon/R6', 'Battery type': 'Lithium', 'Battery voltage': '3.6 V', 'Number of battery cells': '1'} |
| Communication | {'Bluetooth module': 'Bluetooth Low Energy', '2.4 GHz RF Transceiver': 'Yes'} |
| Material | {'Basic material': 'Stainless steel 1.4404 (V4A), AISI 316L & plastic PA 66'} |
