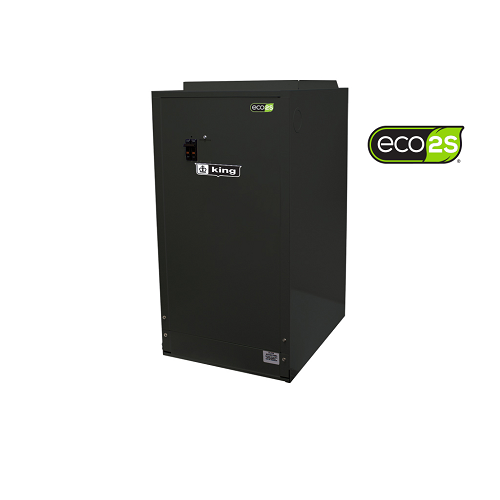

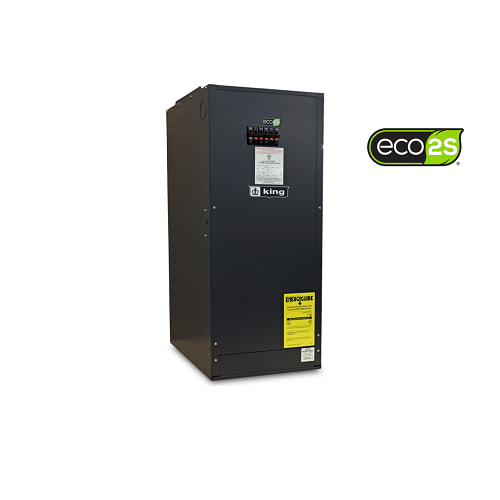

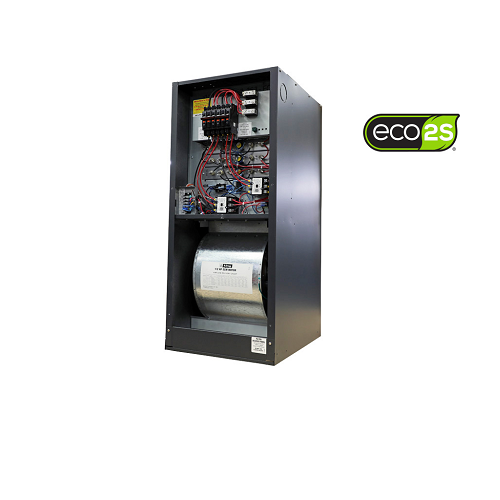

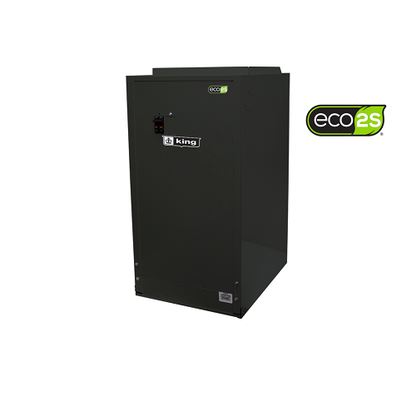

240V 15KW 1 Phase Electric Furnace ECM Motor

240V 15KW 1 Phase Electric Furnace ECM Motor

SKU: SKU: KFS2415-1-2S1-ECM Download PDF

Variant:
  • 240V 15KW 1 Phase Electric Furnace ECM Motor
Regular price Now $5,500.00
Regular price BEFORE   Sale price Now $5,500.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Type Electric Furnace
BTUH 51,195
Volts 240
Phase 1
KW 15
AMPS 63
Stage 1 10 kW
Stage 2 5 kW
Internal CB 60+60
Motor HP 1/3HP
Size 30 1/2
Weight  74 lbs
UPC 093319207109
Part Number KFS2415-1-2S1-ECM


King KFS2415-1-2S1-ECM Electric Furnace 240V 15KW 1PH

Description:

ENERGY SAVINGS meets MAXIMUM COMFORT with the ECO2S Series ECM Motor 2 Stage Heating KF / KFS Furnaces. The ECO2S Series Model adds a state of the art electronically controlled motor and 2 heating stages for added comfort and Maximum Energy Savings.

Quiet operation and Multi-position mounting allows you to put it almost anywhere it will fit. Whether it is commercial, residential or process heating, this air furnace will do the job and give years of excellent maintenance-free service.

Transformer: Each furnace is equipped with a heavy duty low voltage (40 VA) transformer for the thermostat control circuit.

Time Delay Sequencer: Actuates heating element banks to minimize electrical surges in compliance with E.E.I. and N.E.M.A. standards.

Heating Elements: Quick heating, long life Ni-Chrome elements are sized to provide proper watt density for maximum heat dissipation.

Features:

• Energy Efficient ECM Motor
• 2-Stage Comfort Heating = 15% Savings (*Where Applicable)
• Heavy Duty Open Coil Element
• Sequenced Heating Elements
• Down Flow or Up Flow
• 16” x 20” x 1” Inlet Filter
• Welded Cabinet Design
• Horizontal or Vertical Mount
• Mobile Home Approved
• Breaker Disconnects
• Baked Enamel Finish
• Extended Life
• Standard 24 Volt Control
• Fan Only Relay
• Quiet Sound Insulated Cabinet
• Dual Inlet Industrial Blower
• Proudly Made in the USA with U.S. & Global Materials

Also Known as:

King Electric Heaters, Furnace, King Furnace, Model KF / KFS ECO2S
