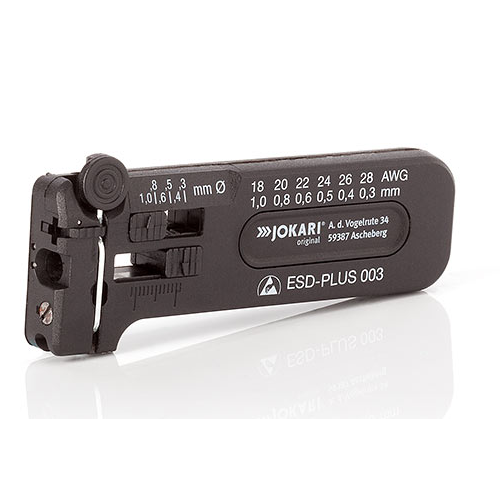

18 - 28 AWG 0.30-1.0 mm ESD Plus 003 Wire Strippers Jokari 40029
18 - 28 AWG 0.30-1.0 mm ESD Plus 003 Wire Strippers Jokari 40029
SKU: SKU: 40029
- 18 - 28 AWG 0.30-1.0 mm ESD Plus 003 Wire Strippers Jokari 40029
- 18 - 28 AWG 0.30-1.0 mm ESD Plus 003 Wire Strippers Jokari 40029
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
| Specification | |
| Part Number: | 40029 |
| Type: | ESD-PLUS 003 |
| Capacity: | 0.30 - 1.00 mm |
| Dimension(LxBxH in cm): | 10.2 x 4.2 x 1.4 |
| Body: | Dissipative Polyamide |
| Blade: | special steel, hardened and tempered |
18 - 28 AWG 0.30-1.0 mm ESD Plus 003 Wire Strippers Jokari 40029
Description:
Micro-Precision Wire Strippers. 18 - 28 AWG 0.30-1.0 mm ESD Plus 003 Wire Strippers Jokari 40029.
Usage:
• Stripping of fine wires in ESD-safe areas (EPA = electrostatic proteced areas).
Cable Types:
• Telecommunication and electronic wires with PVC-, Teflon-, Kynar-, Tefzel-, Mylar-insulation and similar.
Features:
• With adjustable length stopper up to 15 mm
• Body made from specialized conducting plastic.
• Working range 0.30-0.40-0.50-0.60-0.80-1.00 mm Ø.
• Integrated cutter for wire diameters of up to 0.8 mm Ø.
• Micro-Precision stripping tool for cable stripping of solid and stranded wires from AWG 28 to 18.
