26 - 36 AWG 0.12-0.40 mm PWS Plus 001 Wire Strippers Jokari 40024
26 - 36 AWG 0.12-0.40 mm PWS Plus 001 Wire Strippers Jokari 40024
SKU: SKU: 40024
- 26 - 36 AWG 0.12-0.40 mm PWS Plus 001 Wire Strippers Jokari 40024
- 26 - 36 AWG 0.12-0.40 mm PWS Plus 001 Wire Strippers Jokari 40024
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
| Specification | |
| Part Number: | 40024 |
| Type: | High Strip |
| AWG: | 26,28,30,32,34 |
| Dimension(LxBxH in cm): | 10,2 x 4,2 x 1,4 |
| Capacity | 0.12,0.16,0.20,0.25,0.30,0.40 |
| Blade: | Special steel, hardened and tempered |
26 - 36 AWG 0.12-0.40 mm PWS Plus 001 Wire Strippers Jokari 40024
Description:

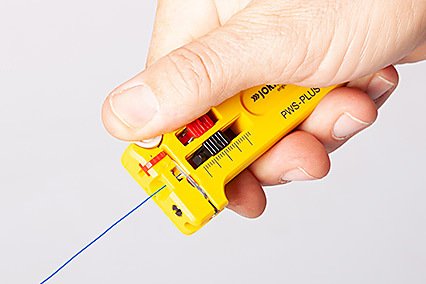

The 40024 (PWS-PLUS 001) Mini-Precision stripping tool for cable stripping of solid and stranded wires from AWG 36 to 26 | 0.12 - 0.40mm
Usage:
Automatic wire stripper for conductors with problematic isolations AWG 26 – 36 (0.12 to 0.40 mm²)
Cable Types:
• Soft or tough conductor insulation materials such as rubber, silicone, TPE etc.
Features:
• With adjustable length stopper up to 15 mm.
• Working range 0.12-0.16-0.20-0.25-0.30-0.40 mm Ø.
• Integrated cutter for wire diameters of up to 0.8 mm Ø.
• Micro-Precision stripping tool for cable stripping of solid and stranded wires from AWG 36 to 26.
