1774530000 - 108mm Stainless Steel Cable Markers, 50 Pcs, RoHS Compliant (Pack of 50)

1774530000 - 108mm Stainless Steel Cable Markers, 50 Pcs, RoHS Compliant (Pack of 50)

SKU: SKU: 1774530000 Download PDF

Variant:
  • 1774530000 - 108mm Stainless Steel Cable Markers, 50 Pcs, RoHS Compliant (Pack of 50)
Regular price Now $116.38
Regular price BEFORE   $0.00 Sale price Now $116.38
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

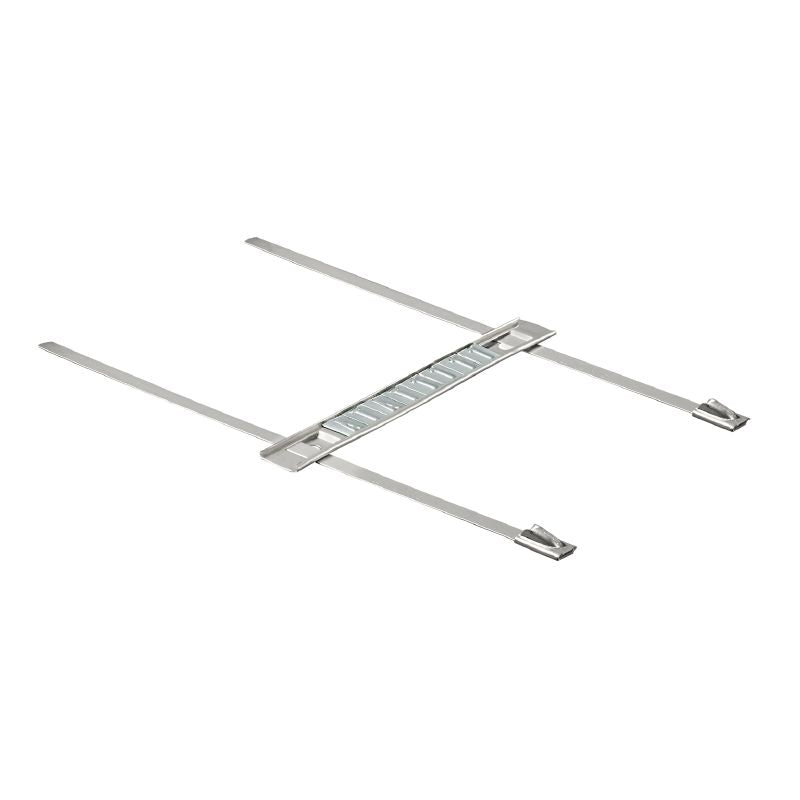

Introducing the WSMH 108MM stainless steel markers, ideal for marking conductors and cables ranging from 14 to 79 mm Each marker measures 108 x 11 mm and showcases a modern silver finish Packaged in sets of 50, these markers also meet RoHS compliance standards, ensuring they are safe and environmentally friendly Perfect for all your identification needs!.

Features and Benefits:

    •Made of stainless steel 1.4404.

    •Suitable for conductor diameters from 14 to 79 mm.

    •Compliant with RoHS without exemptions.

    •Operating temperature range of up to 250 °C.

    •16 characters can be printed on the marker.

Specifications:

 Depth: 0.3 mm
 Height: 108 mm
 Width: 11 mm
 Net weight: 3.5 g
 Conductor cross-section, max.: 500 mm²
 Conductor cross-section, min.: 16 mm²
 Cross-section for connected wire: 16 - 500 mm²
 Number of markers per roll: 50
 Printed characters: without
 Type of printing: neutral
 Operation temperature range max.: 250 °C
 ETIM 6.0: EC001530
 ETIM 7.0: EC001530
 ECLASS 9.0: 27-40-04-01
