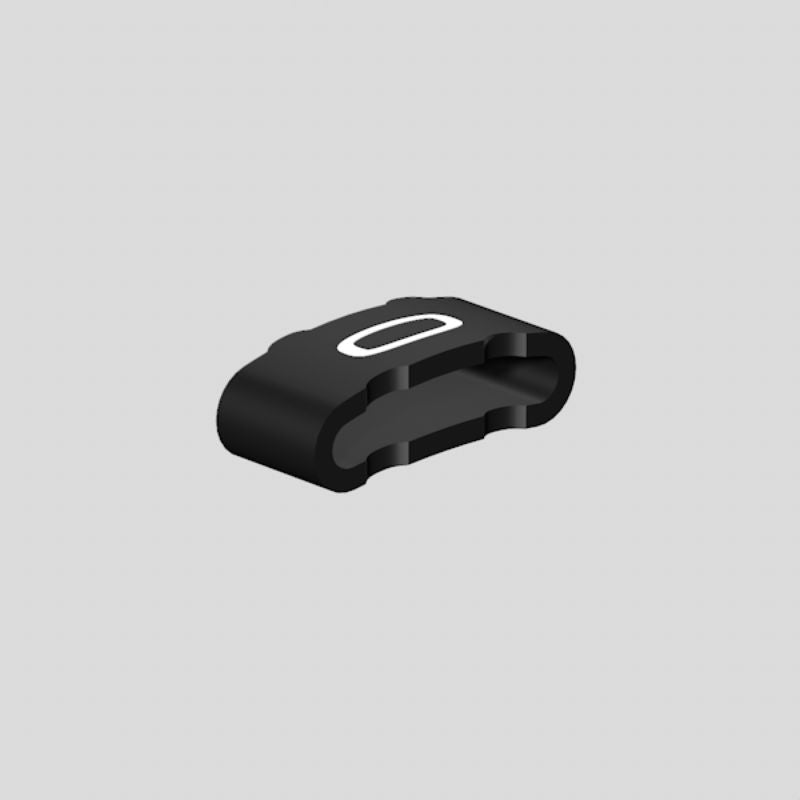

1568301503 - Black PVC Cable Marker for 10-317mm Conductors (Pack of 500)

1568301503 - Black PVC Cable Marker for 10-317mm Conductors (Pack of 500)

SKU: SKU: 1568301503 Download PDF

Variant:
  • 1568301503 - Black PVC Cable Marker for 10-317mm Conductors (Pack of 500)
Regular price Now $36.17
Regular price BEFORE   $0.00 Sale price Now $36.17
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CLI M 2-4 SW/WS 0 CD marker, perfect for identifying cables and conductors ranging from 10 mm to 317 mm in size, with an 113 mm width Crafted from soft PVC free of Cadmium and containing halogen, this durable marker is engineered to perform in tough conditions It can withstand temperatures between -30°C and 80°C, making it an ideal choice for challenging environments.

Features and Benefits:

    •RoHS compliant without exemption.

    •Soft PVC construction.

    •Horizontal printing with numbers.

    •Hot-embossing as printing method.

    •Available in a reel for easy handling.

    •UL 94 flammability rating of V-0.

    •Recommended for industries such as Process and Machinery.

Specifications:

 Depth 3 mm
 Height 4 mm
 Width 11.3 mm
 Operating temperature range -30...80 °C
 Conductor cross-section, max 500 mm²
 Conductor cross-section, min 16 mm²
 Conductor O.D. 10 - 317 mm
 Cross-section for connected wire 16 - 500 mm²
 Material PVC, soft, without Cadmium
 Number of markers per combination 1 Reel = Conductor and cable markers
 Orientation of print horizontal
 Imprint 0
