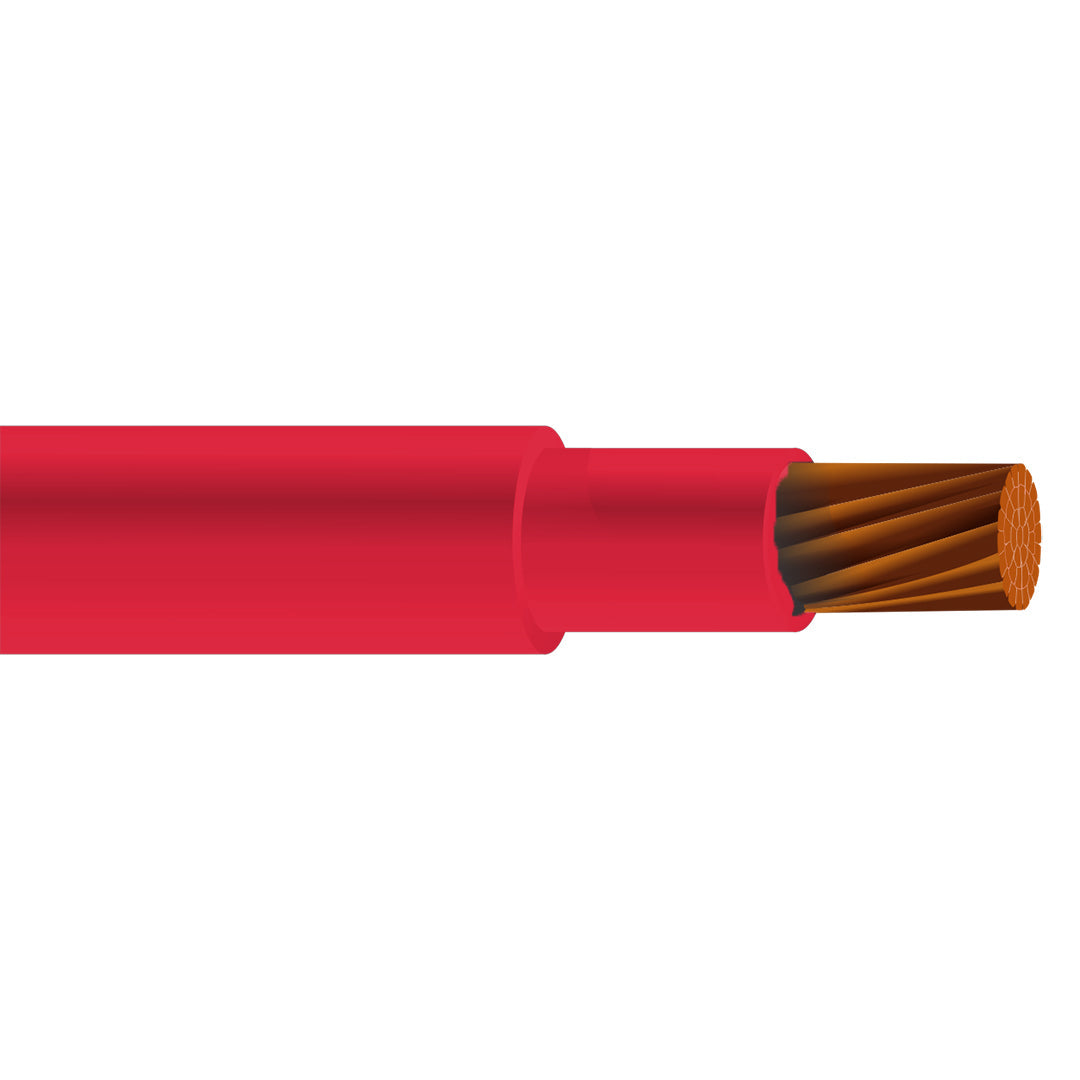

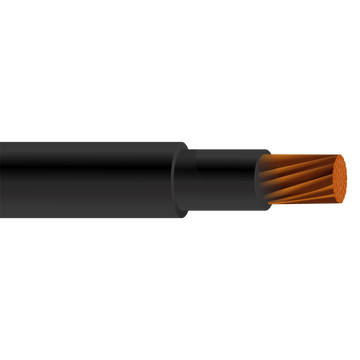

12 AWG 19 Strands Copper Building Solar Photovoltaic PV Wire 600V UL 4703

12 AWG 19 Strands Copper Building Solar Photovoltaic PV Wire 600V UL 4703

SKU: NES32167X-3 Download PDF

Color:
gauge:
  • 12 AWG 19 Strands Copper Building Solar Photovoltaic PV Wire 600V UL 4703
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.51 /FT
BEFORE   Now $0.51 /FT
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Also Known As:

12 Solar PV Wire, 12 Photovoltaic Wire, 12 Solar Wire, 12 Solar Panel Wire.

Conductors:

The wire has a single stranded copper conductor per ASTM B8.

Insulation:

Solar PV wire is insulated with moisture, sunlight, gasoline, oil, and heat resistant XLPE cross-linked polyethylene insulation.



Resources
Applications
Copper Building Solar Photovoltaic PV Wire is designed primarily for power supply solar panel systems in industrial buildings and agricultural constructions. The electrical wire is suitable for outdoor and indoor applications and can be buried outside in specialized construction systems. PV wire is the best choice for underground systems. The electrical wire is rated at 600 V.
Features
Standards:
•ASTM B8
•Can be used as Type USE-2 per UL 854
•Can be used as RHH/RHW-2 per UL 44 for direct burial
•Can be used as type PV per UL 4703
•RoHS Compliant
•UL VW-1 Flame Test Approved

•Allowable Ampacity for 12 AWG 19 Strands Copper Building Solar Photovoltaic PV Wire 600V UL 4703: 40 Amps at 90°C Wet/Dry
Specifications
•Size AWG: 12
•Weight: 0.030 lbs per ft
•Number of Strands: 19
•Outside Diameter: 0.060 inches
•Insulation: XLPE
•Insulation Thickness: 0.125 inches
•Voltage: 600V
•Ampacity: 40 Amps
