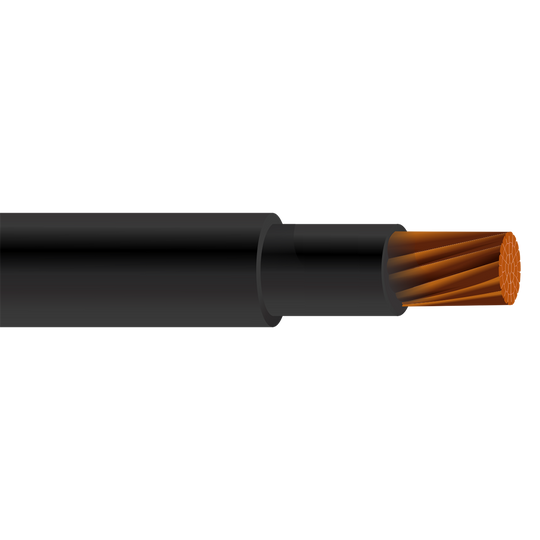

250 MCM 37 Strands Copper Building Solar Photovoltaic PV Wire 2KV UL 4703

SKU: SKU: NES32169X10 Download PDF

Color Black

Select a gauge:

250 MCM 37 Strands Copper Building Solar Photovoltaic PV Wire 2KV UL 4703

Set the Length:

Length:

Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.

Sold out

Shipping calculated at checkout.

Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Applications Features Specifications Reviews

Product Information

Also Known As:

250 Solar PV Wire, 250 Photovoltaic Wire, 250 Solar Wire, 250 Solar Panel Wire.

Conductors:

The wire has a single stranded copper conductor per ASTM B8.

Insulation:

Solar PV wire is insulated with moisture, sunlight, gasoline, oil, and heat resistant XLPE cross-linked polyethylene insulation.

Resources

Applications

Copper Building Solar Photovoltaic PV Wire is designed primarily for power supply solar panel systems in industrial buildings and agricultural constructions. The electrical wire is suitable for outdoor and indoor applications and can be buried outside in specialized construction systems. PV wire is the best choice for underground systems. The electrical wire is rated at 600 V.

Features

Standards:
•ASTM B8
•Can be used as Type USE-2 per UL 854
•Can be used as RHH/RHW-2 per UL 44 for direct burial
•Can be used as type PV per UL 4703
•RoHS Compliant
•UL VW-1 Flame Test Approved

Allowable Ampacity for 250 MCM 37 Strands Copper Building Solar Photovoltaic PV Wire 2KV UL 4703: 455 Amps at 90°C Wet/Dry

Specifications

•Size AWG:250MCM
•Weight: 0.9660 lbs per ft
•Number of Strands:37
•Outside Diameter: 0.815 inches
•Insulation: XLPE
•Insulation Thickness: 0.120 inches
•Voltage: 1kV/ 2kV
•Ampacity: 455 Amps
