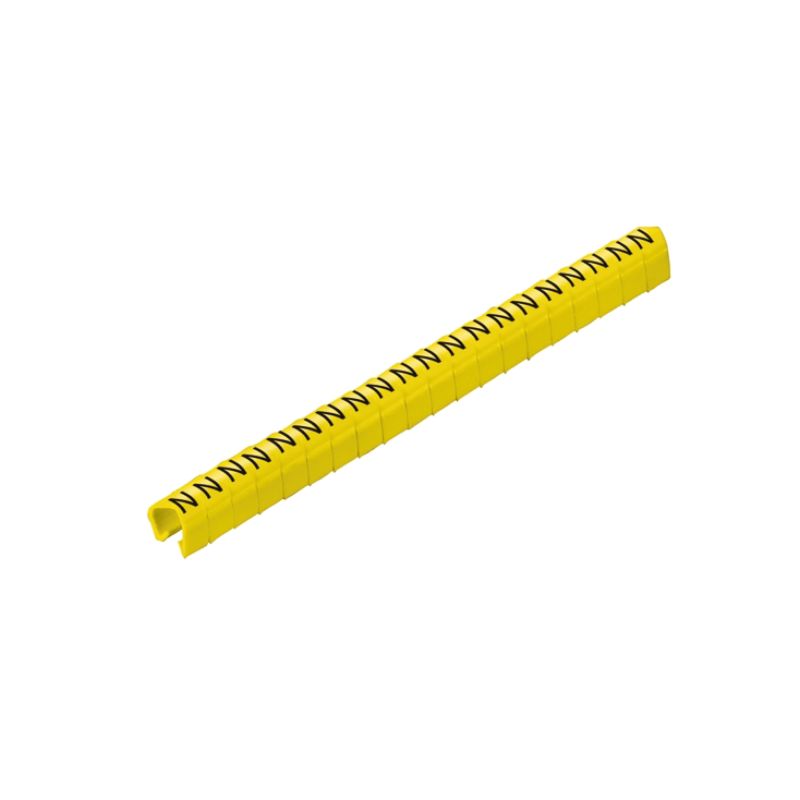

0648201657 - CableLine MultiPack 3x6mm Markers for 4-5mm Conductors (Pack of 200)

0648201657 - CableLine MultiPack 3x6mm Markers for 4-5mm Conductors (Pack of 200)

SKU: SKU: 0648201657 Download PDF

Variant:
  • 0648201657 - CableLine MultiPack 3x6mm Markers for 4-5mm Conductors (Pack of 200)
Regular price Now $13.21
Regular price BEFORE   $0.00 Sale price Now $13.21
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CableLine series, tailored specifically for marking conductors and cables This MultiPack contains markers sized at 3 x 6 mm, ideal for cables with a diameter of 4 to 5 mm Plus, it meets RoHS compliance standards without any exceptions, ensuring an environmentally friendly choice for your marking needs.

Features and Benefits:

    •Manufactured using soft PVC material that is free from Cadmium.

    •Contains a hot-embossing printing method.

    •Features a horizontal print orientation with upper-case letters.

    •Suitable for environments within a temperature range of -30 to 80 °C.

    •UL 94 flammability rating of V-0.

    •Includes halogen content verified as yes.

    •Recommended for use in the process and machinery industries.

Specifications:

 Depth 6 mm
 Height 3 mm
 Width 6 mm
 Operating temperature range -30...80 °C
 Conductor cross-section, max. 4 mm²
 Conductor cross-section, min. 3 mm²
 Conductor O.D. (max) 5 mm
 Conductor O.D. (min) 4 mm
 Cross-section for connected wire 3 - 4 mm²
 RoHS Compliance Status Compliant without exemption
 REACH SVHC No SVHC above 0.1 wt%
 Imprint K
 Printing method hot-embossing
 ETIM 6.0 EC001530
 ETIM 7.0 EC001530
 ETIM 8.0 EC001530
 ETIM 9.0 EC001530
 ETIM 10.0 EC001530
 ECLASS 9.0 27-40-04-01
 ECLASS 10.0 27-40-04-01
 ECLASS 11.0 27-28-11-02
 ECLASS 12.0 27-28-11-02
 ECLASS 13.0 27-28-11-02
 ECLASS 14.0 27-28-11-02
 ECLASS 15.0 27-28-11-02
