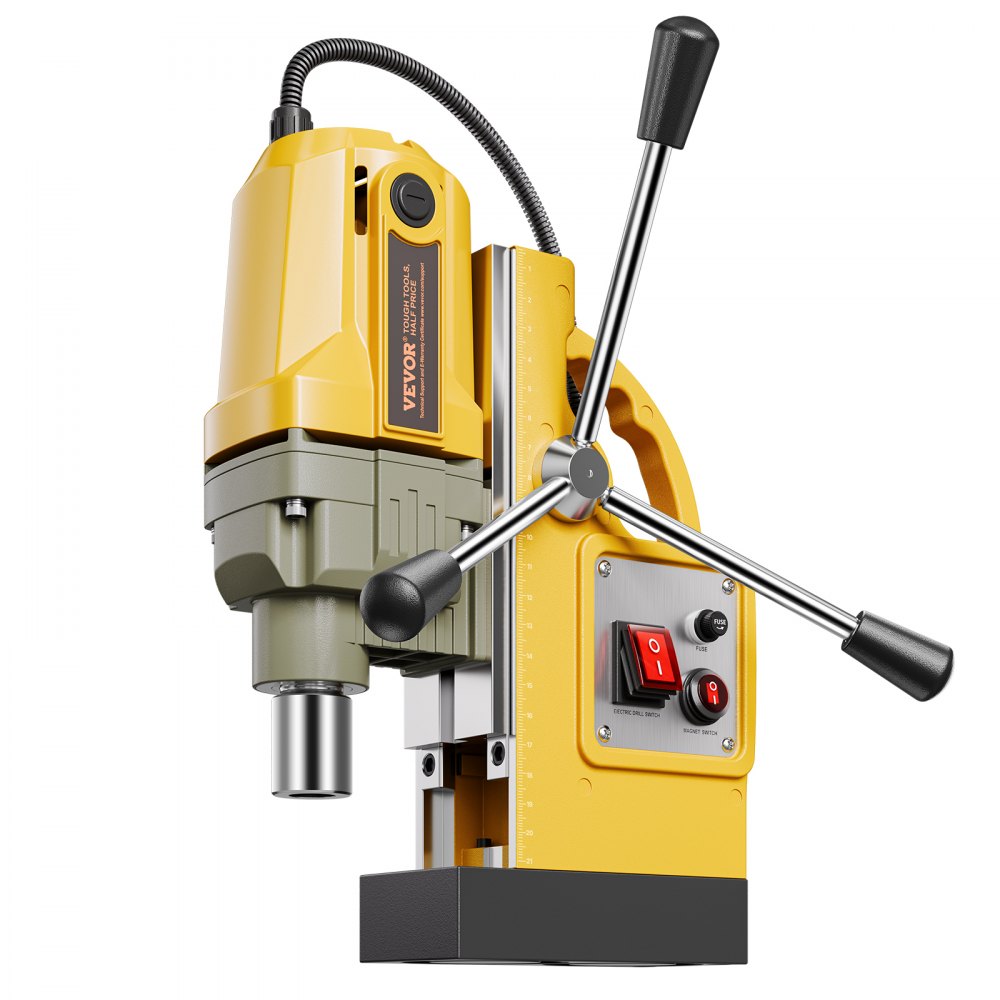

ZT-40HA - 1400W Magnetic Drill with Precision Depth Control and 800 RPM
ZT-40HA - 1400W Magnetic Drill with Precision Depth Control and 800 RPM
SKU: SKU: ZT-40HA Download PDF
- ZT-40HA - 1400W Magnetic Drill with Precision Depth Control and 800 RPM
- ZT-40HA - 1400W Magnetic Drill with Precision Depth Control and 800 RPM
Couldn't load pickup availability

Description:
Experience the ultimate in magnetic drilling technology with our advanced magnetic drill press Engineered to firmly attach to steel or iron surfaces, this tool creates precise, burr-free holes with ease Constructed from high-quality alloy, it serves as a reliable choice for home projects, industrial applications, and metalworking tasks
Harness the power of a robust 1400W motor that operates at an impressive 800rpm, vastly improving your drilling efficiency for extensive projects.
Enjoy enhanced stability, accuracy, and comfort during use, making long drilling sessions much more manageable
The integrated precision depth scale provides a straightforward way to precisely monitor and adjust the drilling depth, ensuring consistent results that meet your exact specifications This feature is especially beneficial for applications that demand stringent depth control, such as machining and construction jobs.

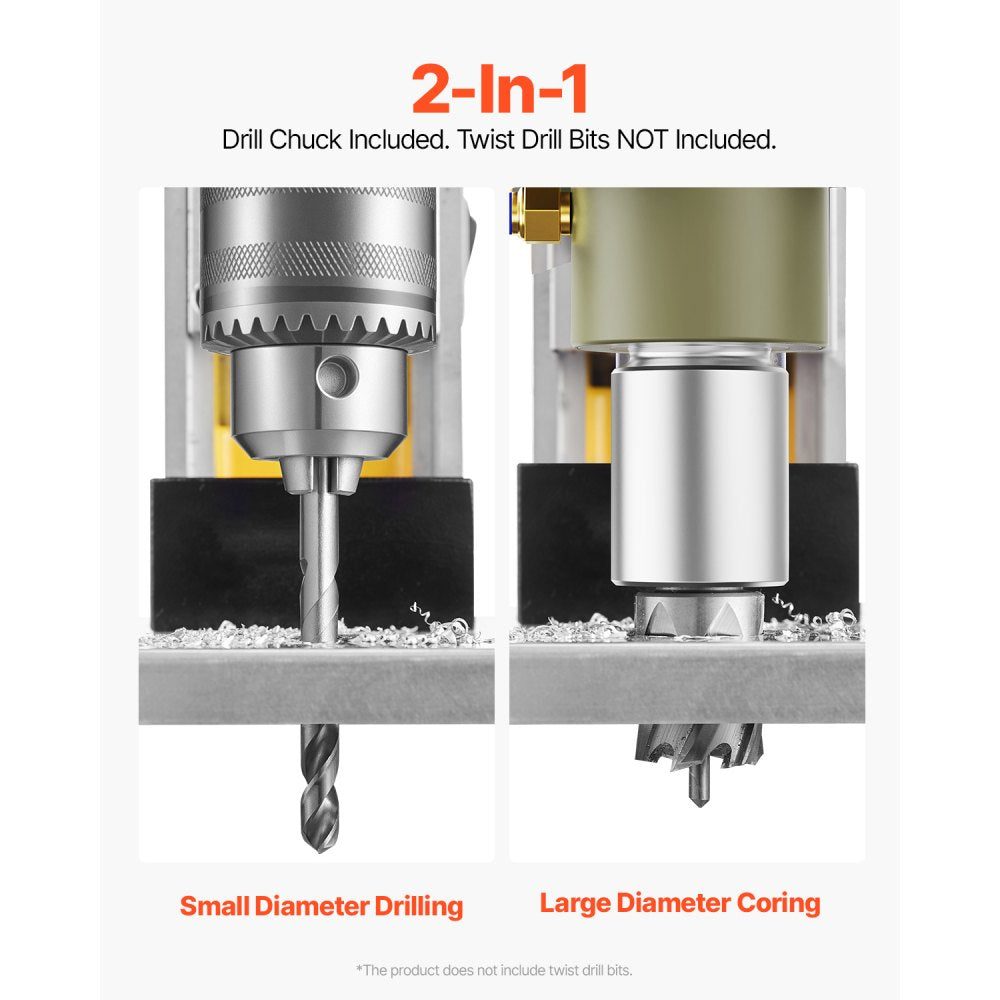

Designed for versatility, our magnetic drill press includes a professional-grade twist drill chuck, making it suitable for a wide range of drilling requirements Whether you're working with twist drill bits for smaller holes or larger openings using annular cutters, this tool has everything you need for any drilling task.
Features and Benefits:
•Top-level Magnet: Get ready for unstoppable power with its 1400W copper motor capable of drilling into tough materials at 800 RPM..
•Understand the Power: Generates 2810 lbf of robust force, ensuring solid work stability during drilling..

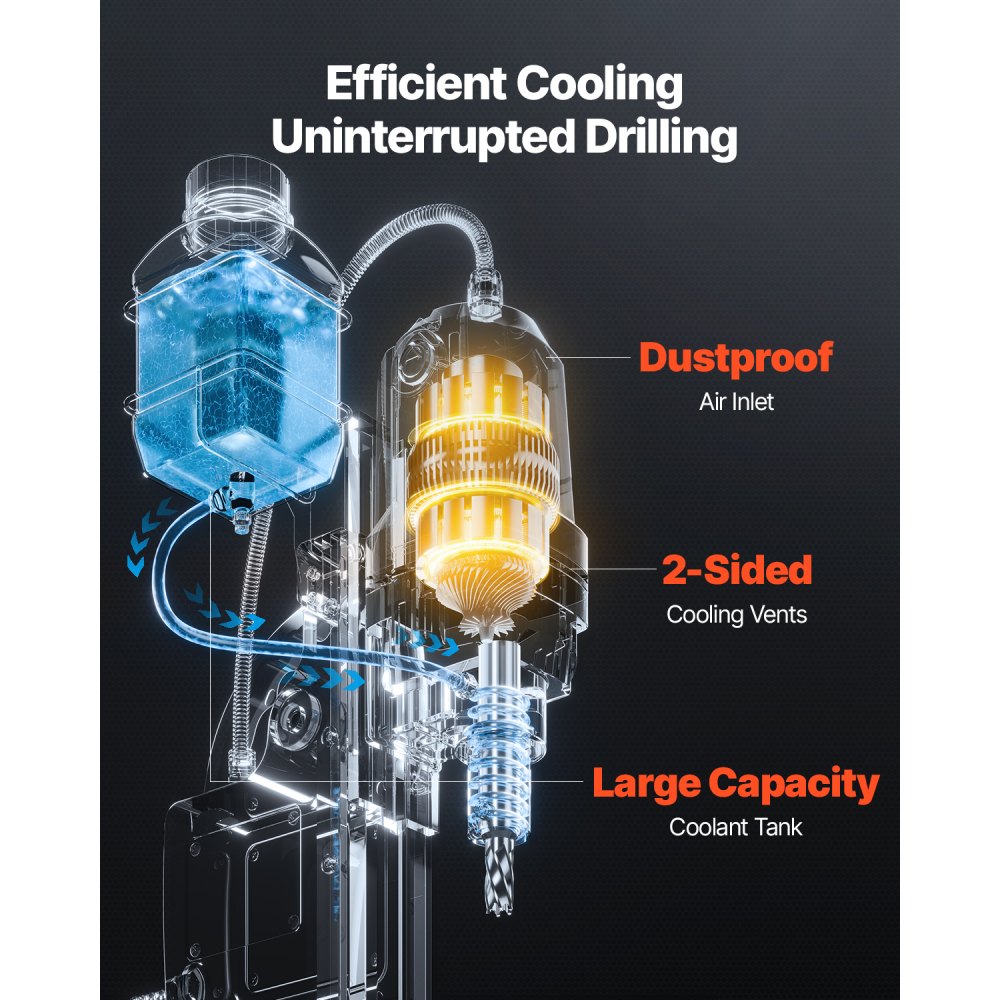

•Security and Durability: Overload protection and cooling system to prevent overheating and protect operators..
•User-friendly design: Features a scale for precise drilling depth control and ergonomically designed handle for comfortable grip..
•Wide Applications: Ideal for home improvement, equipment installation, and various industrial applications..
•Home improvement.
•Equipment installation.
•Industrial and steel fabrication.
•Ship and bridge building.
•Railway manufacture.
•Windmill & power-plant construction.

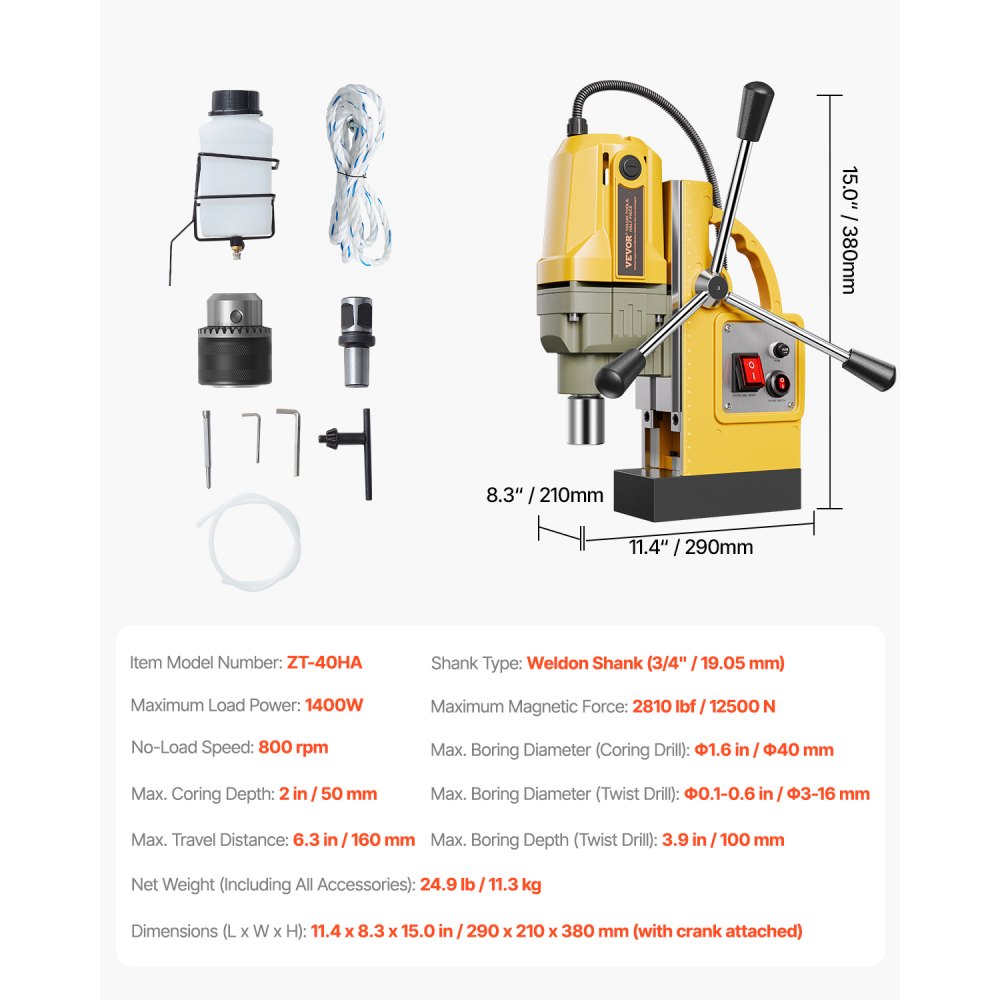

Specifications:
| Item Model Number | ZT-40HA |
| Shank Type | Weldon Shank (3/4" / 19.05 mm) |
| Maximum Load Power | 1400W |
| Maximum Magnetic Force | 2810 lbf / 12500 N |
| No-Load Speed | 800 rpm |
| Max. Boring Diameter (Coring Drill) | Φ1.6 in / Φ40 mm |
| Max. Coring Depth | 2 in / 50 mm |
| Max. Boring Diameter (Twist Drill) | Φ0.1-0.6 in / Φ3-16 mm |
| Max. Boring Depth (Twist Drill) | 3.9 in / 100 mm |
| Max. Travel Distance | 6.3 in / 160 mm |
| Net Weight (Including All Accessories) | 24.9 lb / 11.3 kg |
