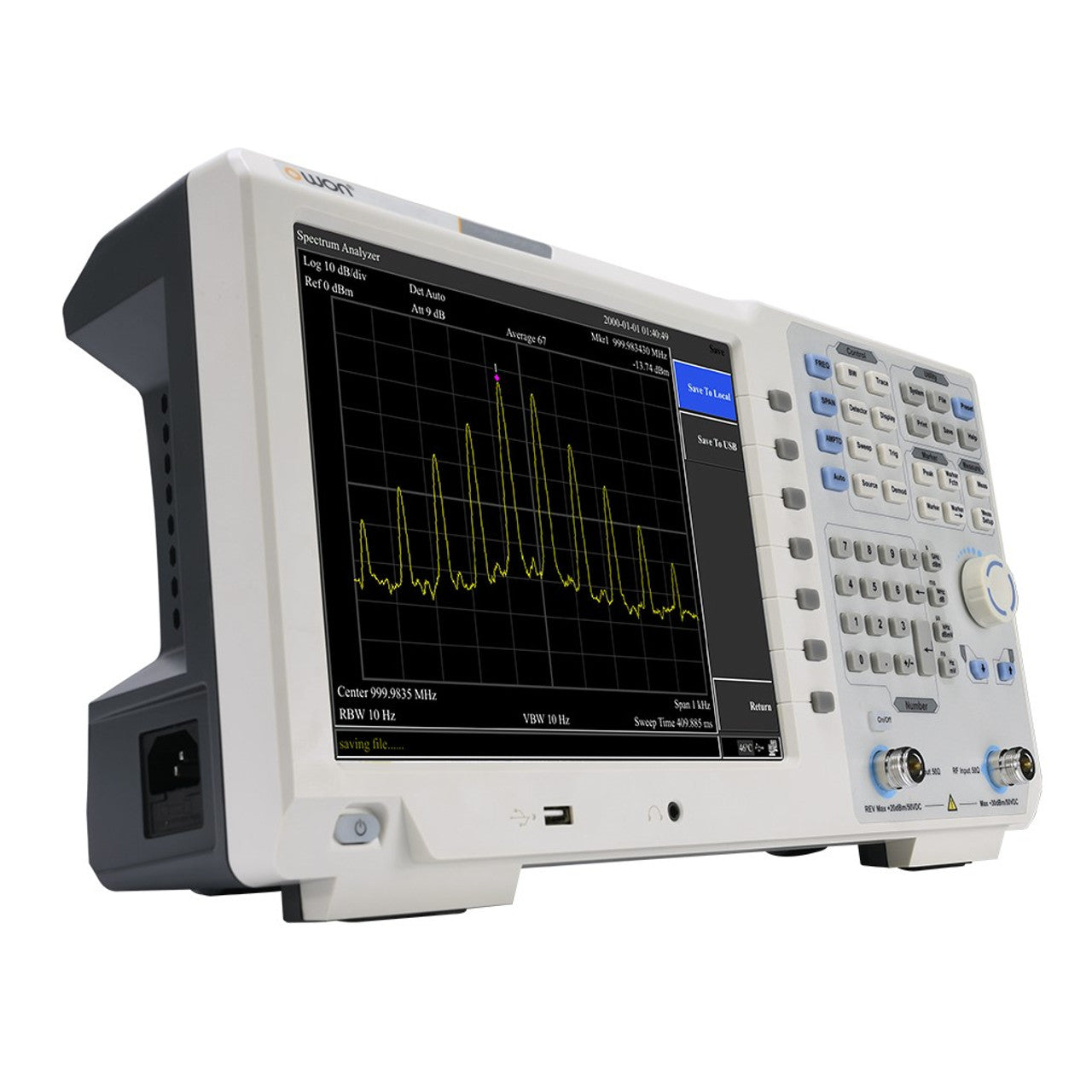

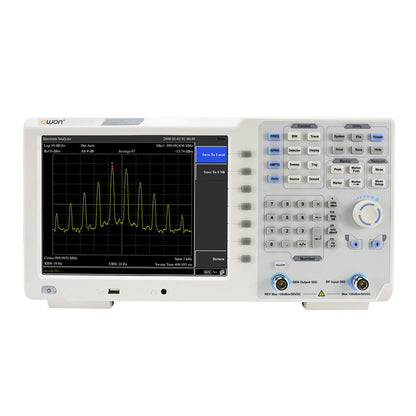

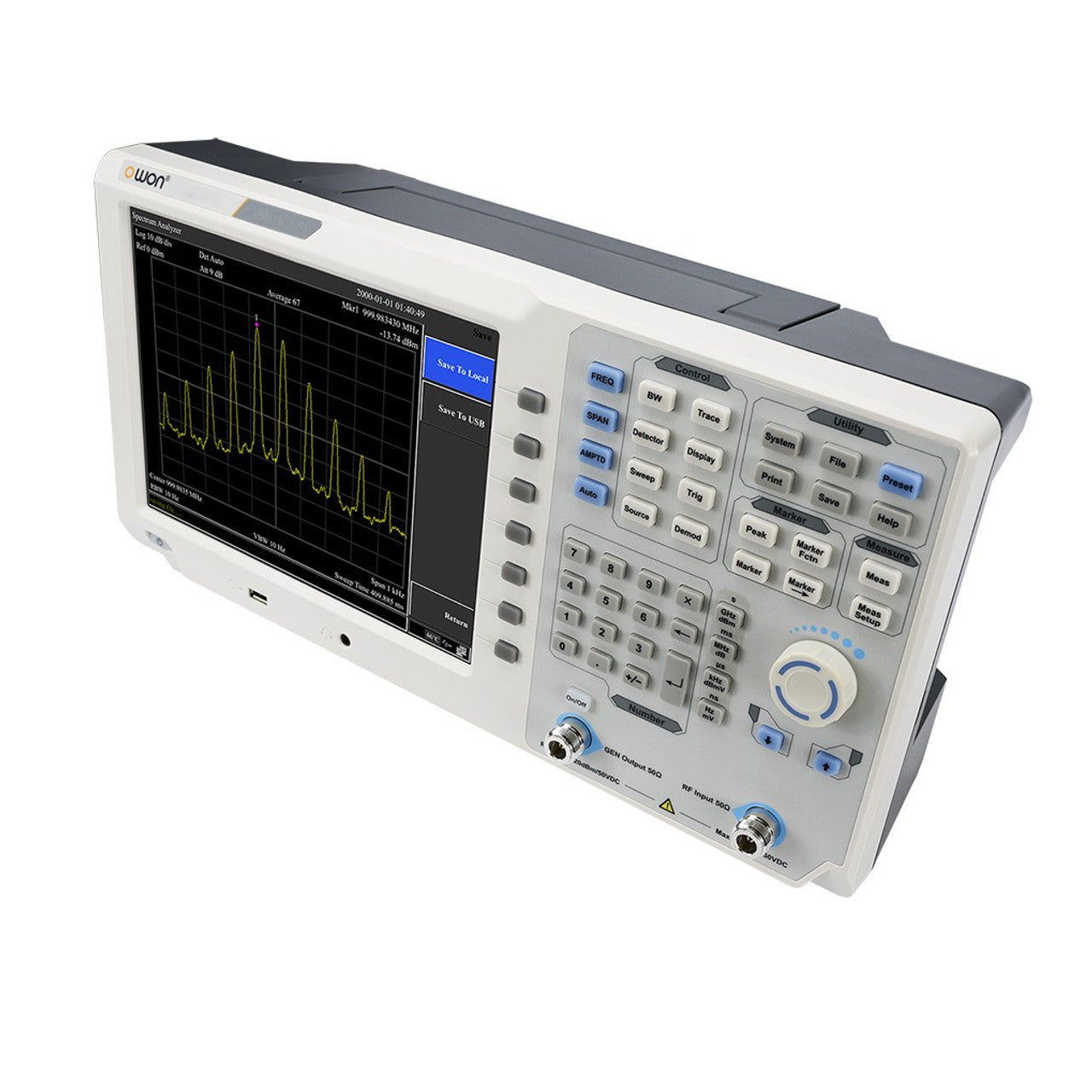

XSA1036-TG Spectrum Analyzer
XSA1036-TG Spectrum Analyzer
SKU: SKU: XSA1036-TG
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
XSA1036-TG Spectrum Analyzer 1 10 Hz Minimum Resolution Bandwidth (RBW) Digital IF technology offers a minimum bandwidth of 10Hz, allowing excellent signal resolution when separation of closely spaced signals is required 2 Measure -130dB small signal at 10Hz RBW Offers a DANL (displayed average noise level) down to -130 dBm, which is able to measure smaller signals 3 Phase noise:<-80 dBc/Hz @1 GHz @ 30 KHz offset Excellent phase noise performance - <-80dBc/Hz @30KHz enables users to evaluate most synthesizers and signal generators.
4 EMI filter and quasi-peak detector kit OWON offers an EMI filter and quasi-peak detector kit to help evaluating EMI levels for pre-compliance testing.
Features and Benefits:
•10 Hz Minimum Resolution Bandwidth (RBW).
•Measure -130dB small signal at 10Hz RBW.
•Excellent phase noise performance.
•EMI filter and quasi-peak detector kit.
Specifications:
| Minimum Resolution Bandwidth (RBW): | 10 Hz |
| DANL: | -130 dBm |
| Phase noise: | <-80 dBc/Hz @1 GHz @ 30 KHz offset |
| EMI filter and quasi-peak detector kit: | Available for pre-compliance testing |
| Accessories: | Power Cord, CD Rom, Quick Guide, N-N Cable (optional), N-SMA Cable (optional), SMA-SMA Cable (optional), SMA Adaptor (optional), N-SMA Adaptor (optional), Near Field Probe (optional) |
