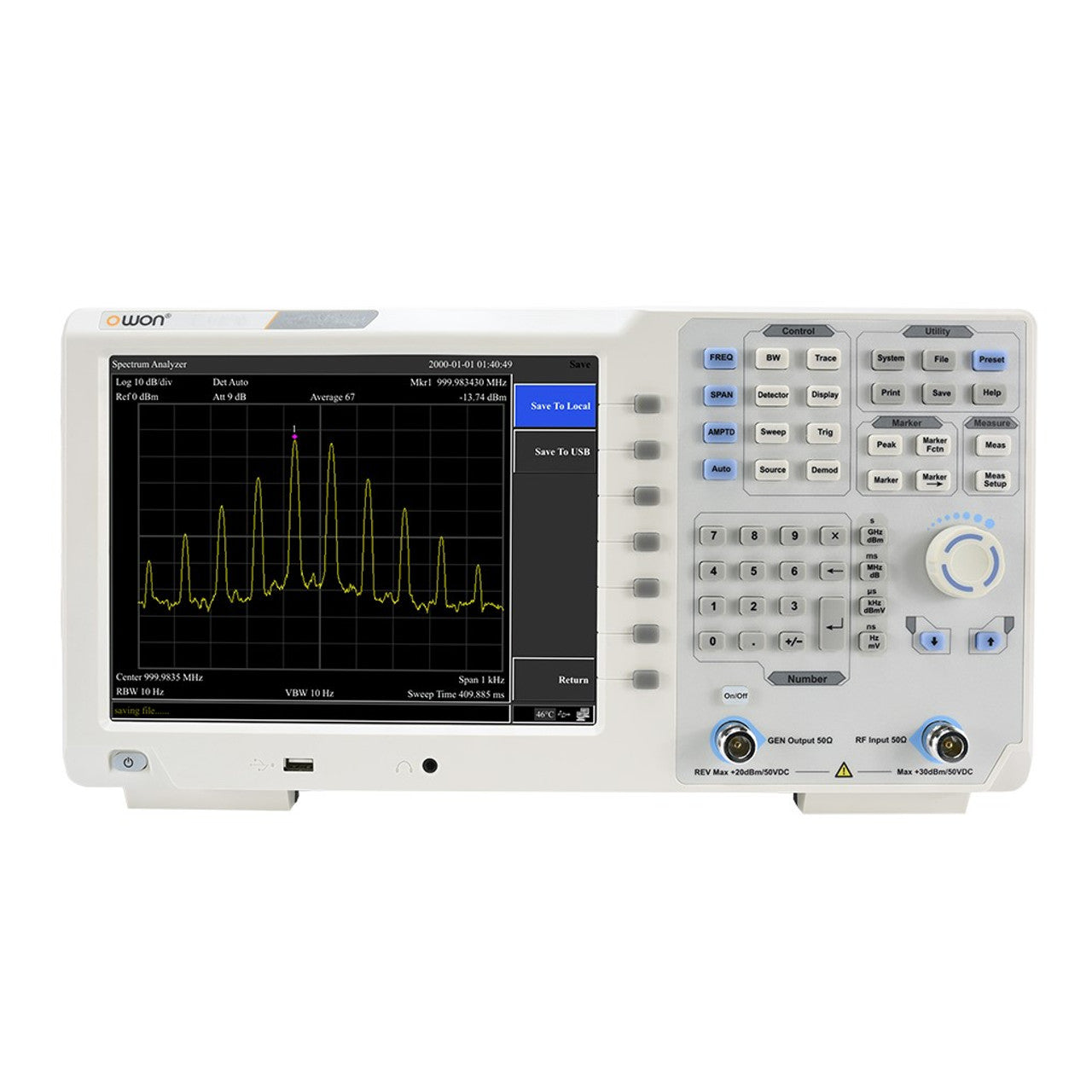

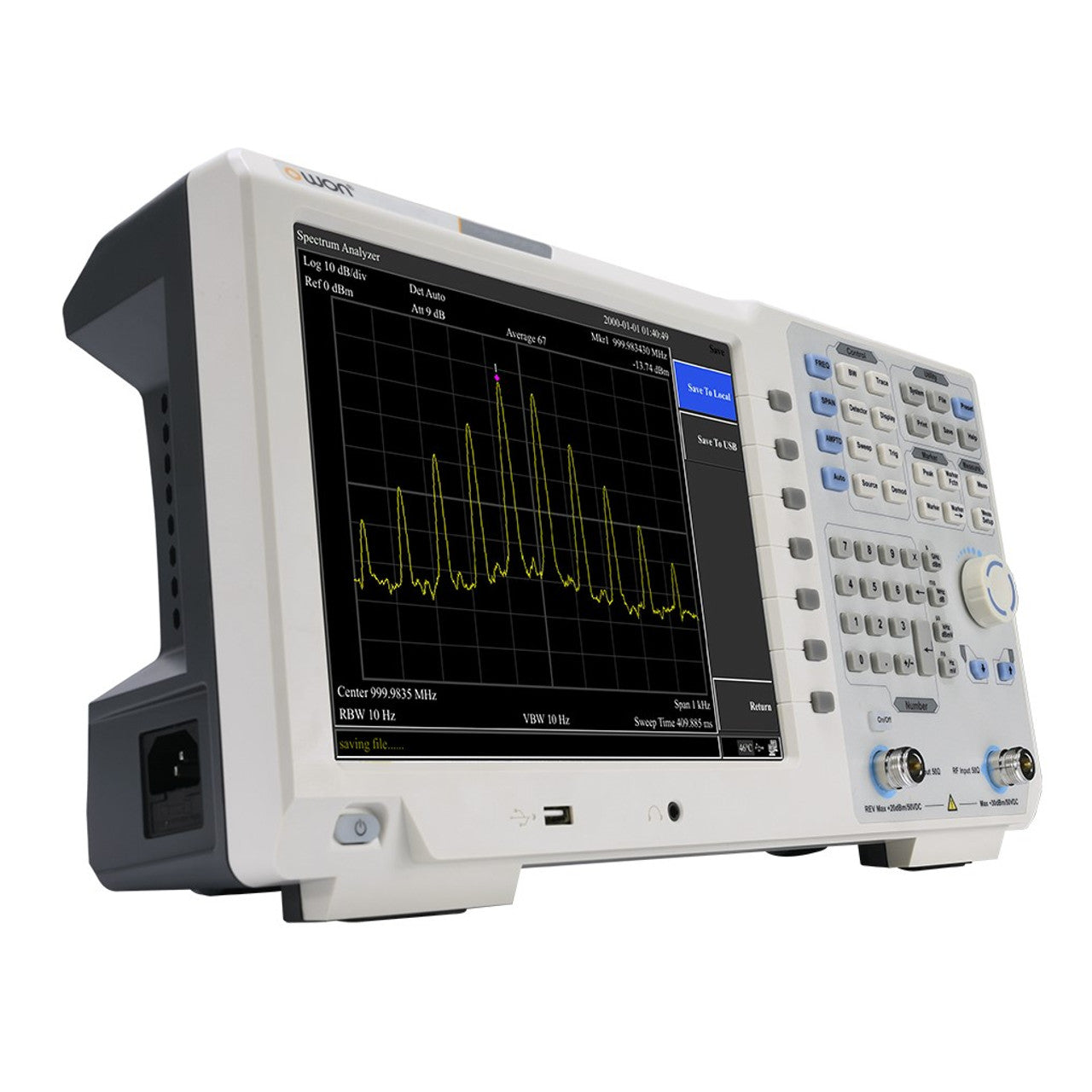

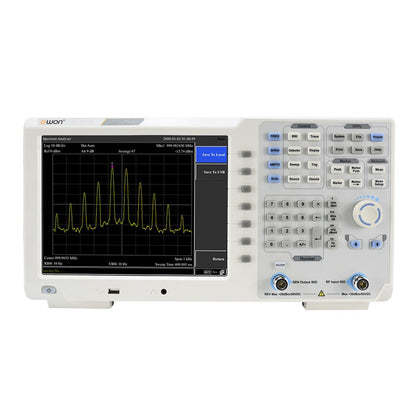

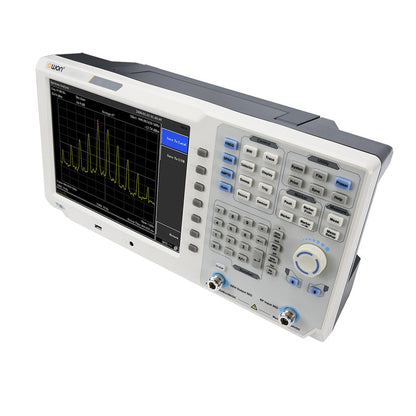

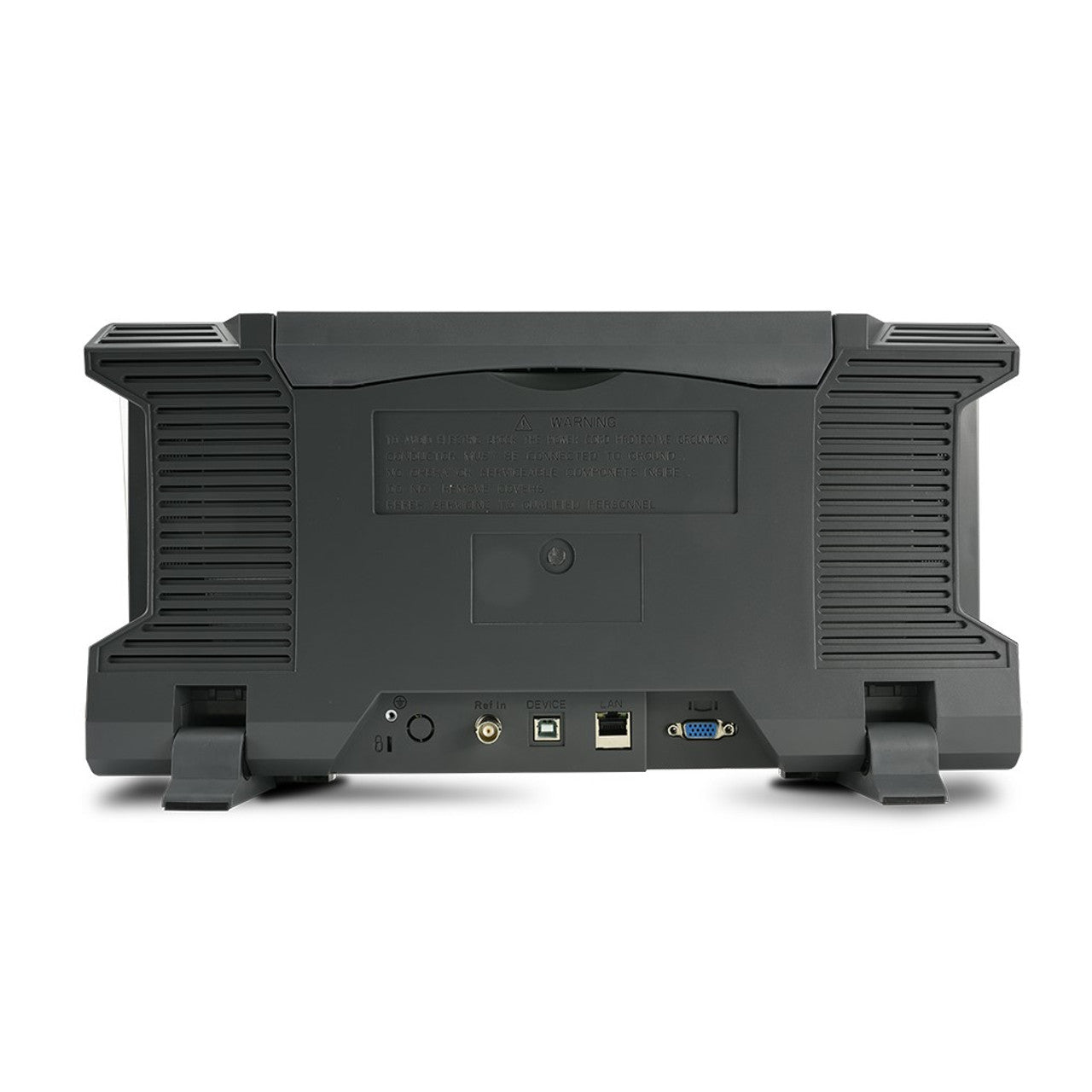

XSA1036-TG Spectrum Analyzer

Description:

XSA1036-TG Spectrum Analyzer features digital IF technology that grants a minimum bandwidth of 10Hz, ensuring excellent signal resolution needed for closely spaced signals It can measure down to -130 dBm using a small signal at 10Hz RBW, providing superior capability in tracking smaller signals A noteworthy aspect of this device is its outstanding phase noise performance, which is less than -80dBc/Hz at 1 GHz with a 30KHz offset, enabling thorough evaluations of most synthesizers and signal generators.

Moreover, the product includes an EMI filter and quasi-peak detector kit designed to assess EMI levels pertinent for pre-compliance testing Accessories such as a power cord, CD Rom, quick guide, and optional N-N cables, N-SMA cables, SMA-SMA cables, and adaptors are provided to enhance its functionality.

Features and Benefits:

•10 Hz Minimum Resolution Bandwidth (RBW) for excellent signal resolution.

•Ability to measure -130dB small signal at 10Hz RBW.

•Phase noise performance of <-80 dBc/Hz @1 GHz @ 30 KHz offset.

•Includes EMI filter and quasi-peak detector kit for EMI evaluation.

Specifications:
