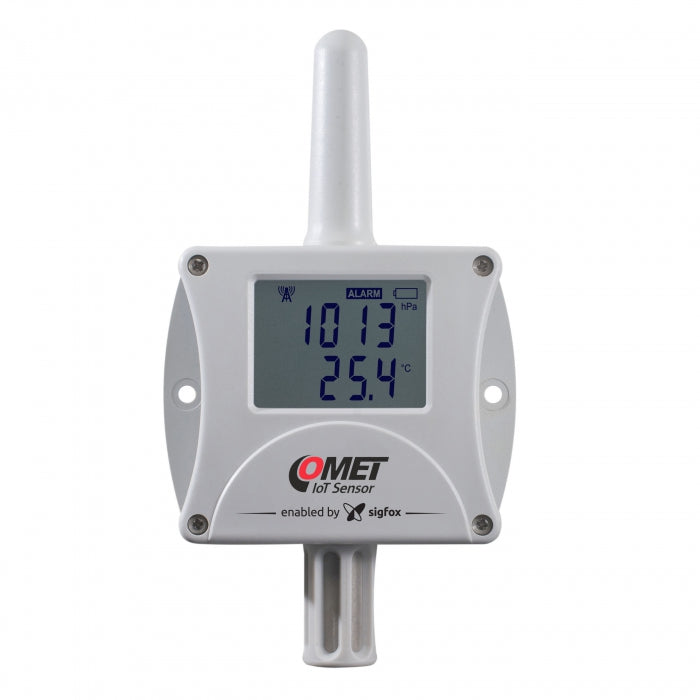

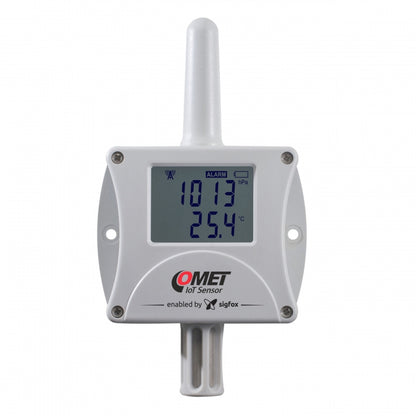

Wireless Thermometer Hygrometer Barometer Sigfox IoT

Wireless Thermometer Hygrometer Barometer Sigfox IoT

SKU: W7810 Download PDF

Sold out
Web pricing policyShipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

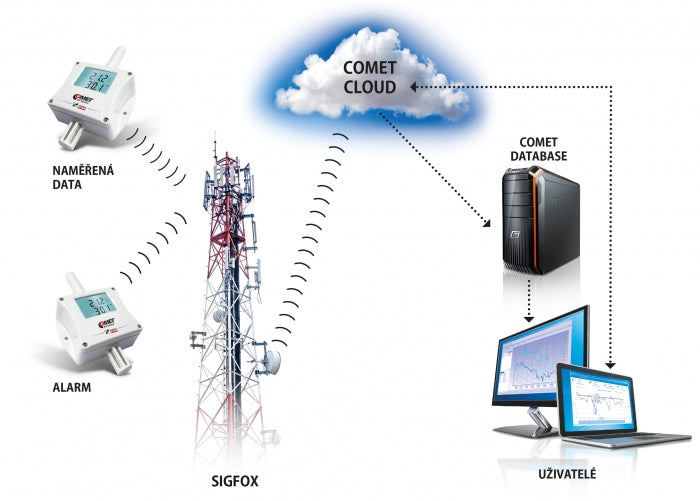

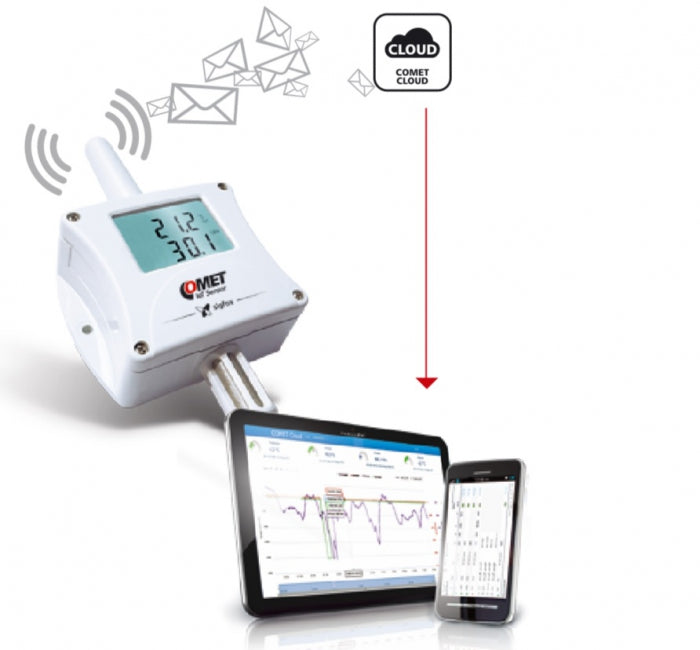

The device measures the temperature, humidity and atmospheric pressure from the built-in internal sensors It is characterized by a simple compact design with the possibility of installation directly into the measured space The sensor can be used with a suitable sensor cap even in more demanding conditions The measured values are sent in an adjustable time interval (10 min to 24 h) by radio transmission in the Sigfox network to the COMET Cloud, from which the user can view them using a personal computer or mobile device.

The instrument can monitor up to 2 alarm limits of the measured variable Exceeding these limits is indicated by sending an emergency message COMET Cloud transmits this alarm message via e-mail to the selected user The device is suitable for applications that tolerate the delay of information delivered by Sigfox (max 10 min) Wireless transmission of measured values and alarm states, battery power with low battery indication (battery life 4 months to 7 years), external power with optional accessories, remote setting of the device from COMET Cloud (maximum once a day), IP65, traceable calibration certificate in accordance with EN ISO / IEC 17025.

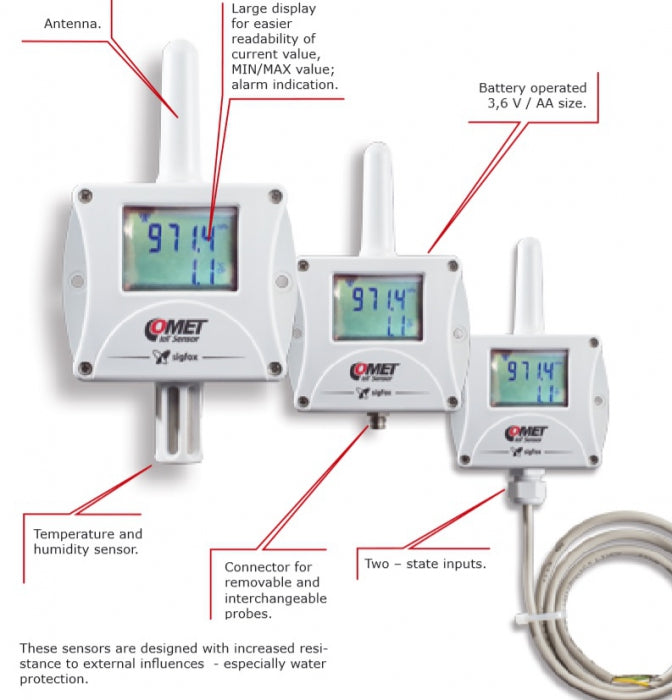

Features and Benefits:

    •Wireless transmission of measured values and alarm states.

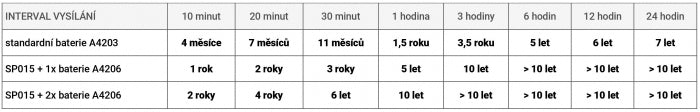

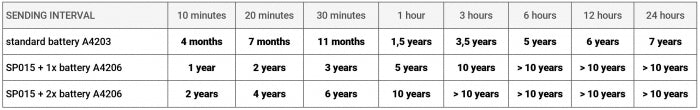

    •Battery power with low battery indication (battery life 4 months to 7 years).

    •External power with optional accessories.

    •Remote setting of the device from COMET Cloud (maximum once a day).

    •IP65 protection class.

    •Traceable calibration certificate in accordance with EN ISO / IEC 17025.

Specifications:

 Temperature Measuring Range -30 to +60 °C
 Temperature Accuracy ±0.4 °C
 Temperature Resolution 0.1 °C
 Humidity Measuring Range 0 to 100 % RH
 Humidity Accuracy ±1.8 % RH from 0 to 90 % at 23 °C
 Humidity Resolution 0.1% RH
 Dew Point Measuring Range -60 to +60 °C
 Dew Point Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution 0.1 °C
 Atmospheric Pressure Measuring Range 600 to 1100 hPa
 Atmospheric Pressure Accuracy ±1.3 hPa at 23 °C from 800 to 1100 hPa
 Atmospheric Pressure Resolution 0.1 hPa
 Operating Temperature -30 to +60 °C
 Channels Internal sensor of temperature, humidity sensor and atmospheric pressure
 Message Transmission Interval Adjustable 10 minutes, 20 minutes, 30 minutes, 1 hour, 3 hours, 6 hours, 12 hours, 24 hours
 Alarm Message Sending Interval 10 minutes
 Operating Frequency 868 MHz
 Maximum Transmission Power 25mW
 Sigfox Radiation Class 0U
 Radio Configuration Zone RC1 (operation is possible in Europe, Iran, Oman and South Africa)
 Typical Range of Transmitter 50 km in the field, 3 km in the city
 Power Lithium battery 3.6 V, AA size
 Protection Class IP65

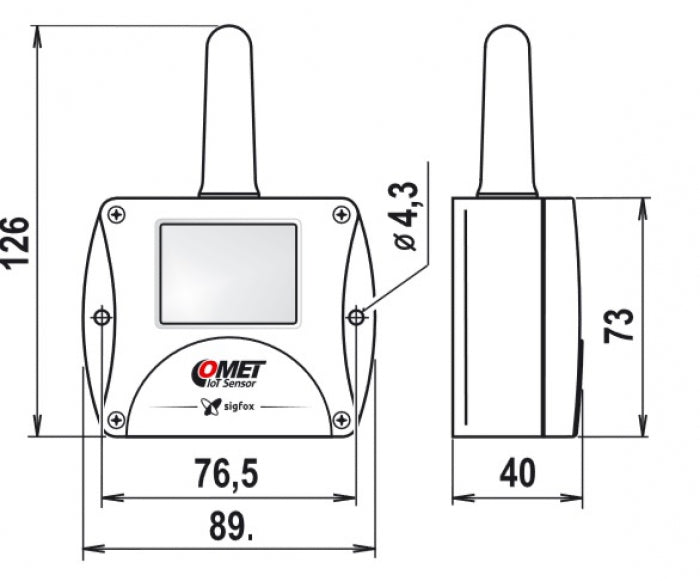

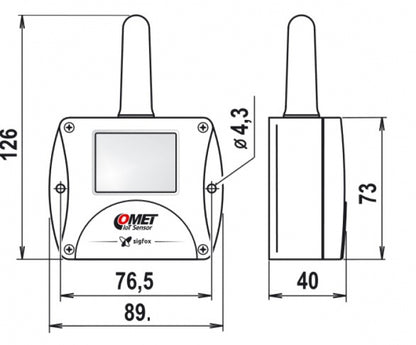

 Dimensions 126 x 89 x 40 mm
