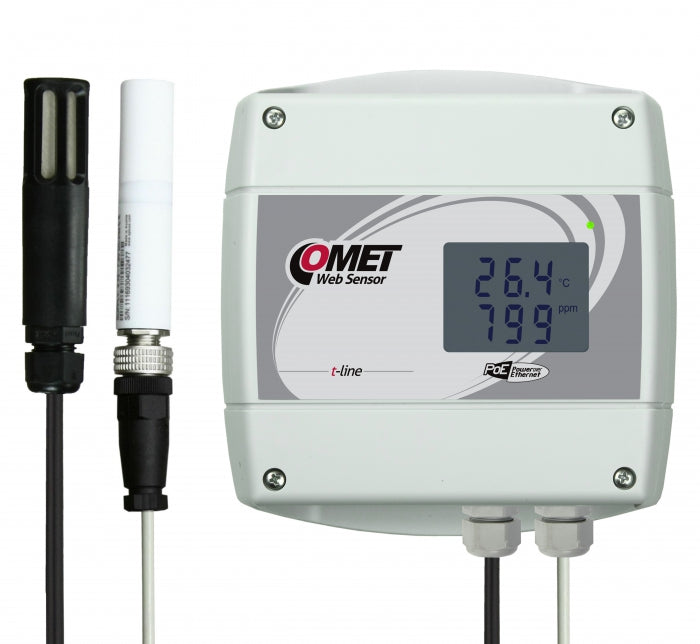

WebSensor with PoE - remote temperature, humidity, CO2 concentration with Ethernet interface

WebSensor with PoE - remote temperature, humidity, CO2 concentration with Ethernet interface

SKU: T6641   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

This is a temperature, humidity, and carbon dioxide ambient web sensor that incorporates Power over Ethernet (PoE) capabilities The device features remote alarm functionality with probes for temperature and humidity measurements An integrated multiple point CO2 and temperature adjustment procedure ensures superior CO2 measurement accuracy across the entire operational temperature range, making it an essential tool for process control and outdoor applications.

The NDIR dual wavelength CO2 sensing technology automatically compensates for aging effects The CO2 module is designed to be resistant to pollution, enabling maintenance-free operations and providing exceptional long-term stability The device is supplied with 1-meter cable probes for measuring temperature and humidity, with options to extend cable lengths to 2 or 4 meters.

Features and Benefits:

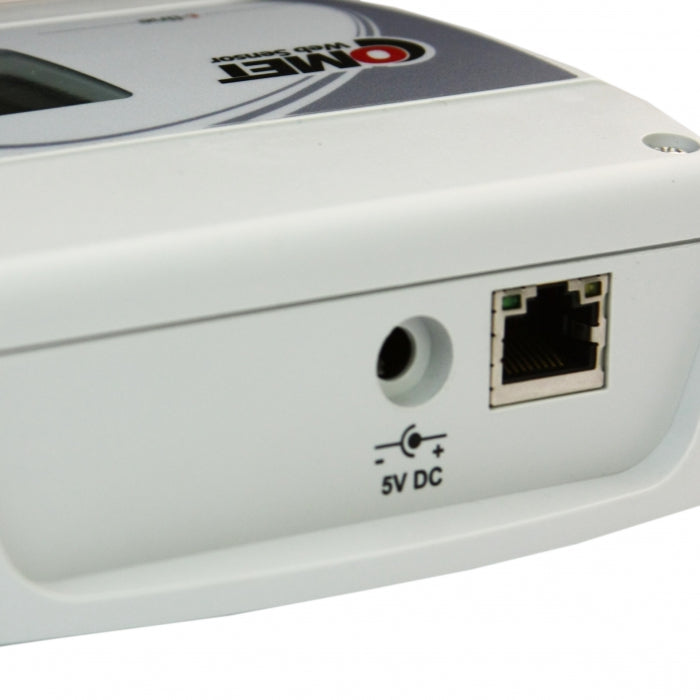

    •Power over Ethernet feature for enhanced connectivity.

    •Remote alarm functionality.

    •Excellent CO2 measurement accuracy across the temperature range.

    •Maintenance-free operation with long-term stability.

    •Multiple probe options for flexible installation.

    •Process control.

    •Outdoor environmental monitoring.

    •Climate control systems.

    •Indoor air quality assessment.

Specifications:

 Measuring range (Temperature) -30 to +105 °C
 Accuracy (Temperature) ±0.4 °C
 Resolution (Temperature) 0.1 °C
 Measuring range (Humidity) 5 to 95 % RH
 Accuracy (Humidity) ±2.5 % RH
 Resolution (Humidity) 0.1 % RH
 Measuring range (Dew Point) -60 to +80 °C
 Accuracy (Dew Point) ±1.6°C at ambient temperature T<25°C and RH>30%
 Resolution (Dew Point) 0.1 °C
 Measuring range (CO2) 0 to 10,000 ppm
 Accuracy (CO2) ±(100ppm +5% from reading) at 25°C and 1013hPa
 Resolution (CO2) 1 ppm
 Operating temperature -20 to +60 °C
 Channels 1x connectable temperature+humidity probe, 1x external CO2 sensor
 Output Ethernet
 Measuring interval 2 s; CO2 15 s
 Protection class IP30 electronics; IP40 temperature+humidity sensor; IP65 CO2 sensor
 Dimensions 136 x 117 x 45 mm
 External probe T+RH cable length 1 meter (optionally 2 or 4 meters)
 External probe cable length CO2 1 meter (optionally 2 or 4 meters)
