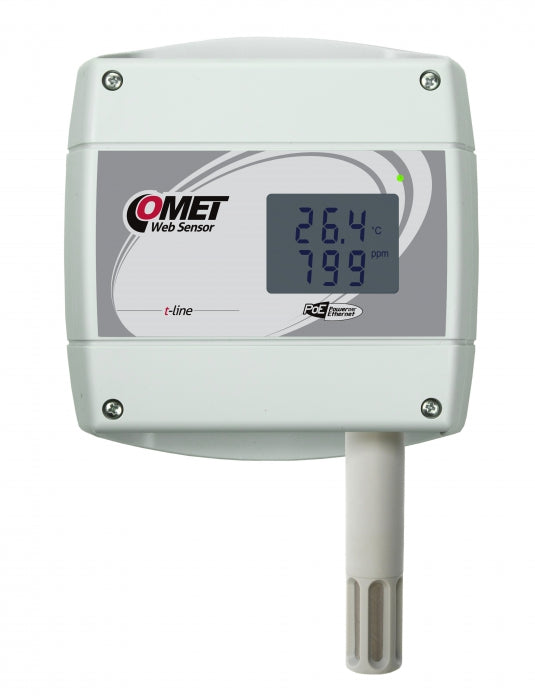

WebSensor with PoE - remote temperature, humidity, CO2 concentration with Ethernet interface

WebSensor with PoE - remote temperature, humidity, CO2 concentration with Ethernet interface

SKU: T6640   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

Temperature, humidity, carbon dioxide t-line Web sensor with Power over Ethernet feature Remote alarm Web Sensor with built-in temperature, humidity, CO2 sensor with PoE function A multiple point CO2 and temperature adjustment procedure leads to excellent CO2 measurement accuracy over the entire temperature working range; this is a must for process control and outdoor applications The dual wavelength NDIR CO2 sensing procedure compensates automatically for ageing effects.

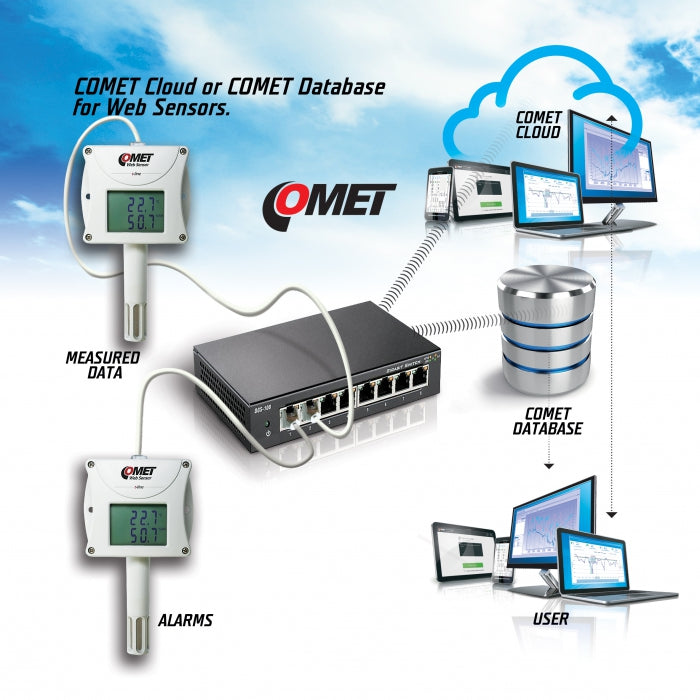

The CO2 module is highly resistant to pollution and offers maintenance free operation and outstanding long term stability The CO2 concentration is shown on the display or signaled by a color LED Processing and analysis of measured data: online in COMET Cloud, COMET Database software integration into 3-party systems Possibility to extend the measuring range for an additional charge: Measuring range: 0 to 10 000 ppm.

Accuracy: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa.

Specifications:

 Measuring range (Temperature) -30 to +80 °C
 Accuracy (Temperature) ±0.6 °C
 Resolution (Temperature) 0.1 °C
 Measuring range (Humidity) 0 to 100 % RH
 Accuracy (Humidity) ± 2.5 % RH
 Resolution (Humidity) 0.1% RH
 Measuring range (Dew Point) -60 to +80 °C
 Accuracy (Dew Point) ±1.6°C at ambient temperature T<25°C and RH>30%
 Resolution (Dew Point) 0.1 °C
 Measuring range (CO2) 0 to 2000 ppm
 Accuracy (CO2) ±(50ppm +2% from reading) at 25°C and 1013hPa
 Resolution (CO2) 1 ppm
 Operating temperature -30 to +60 °C
 Channels internal temperature, humidity and CO2 sensor
 Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
 Output Ethernet
 Measuring interval 2 s; CO2 15 s
 Range of humidity sensor temperature compensation all temperature range
 Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
 Alarm protocols E-mail, SNMP Trap, Syslog

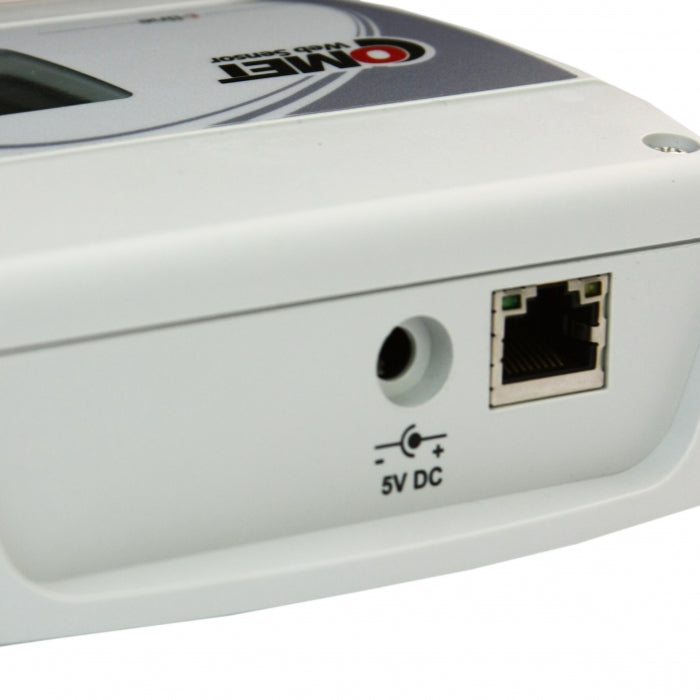

 Power Power over Ethernet according to IEEE 802.3af or 5Vdc
 Protection class IP30 electronics, IP40 sensors
 Dimensions 136 x 117 x 45 mm
