Web Sensor - two channels with binary inputs

Web Sensor - two channels with binary inputs

SKU: P8552   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

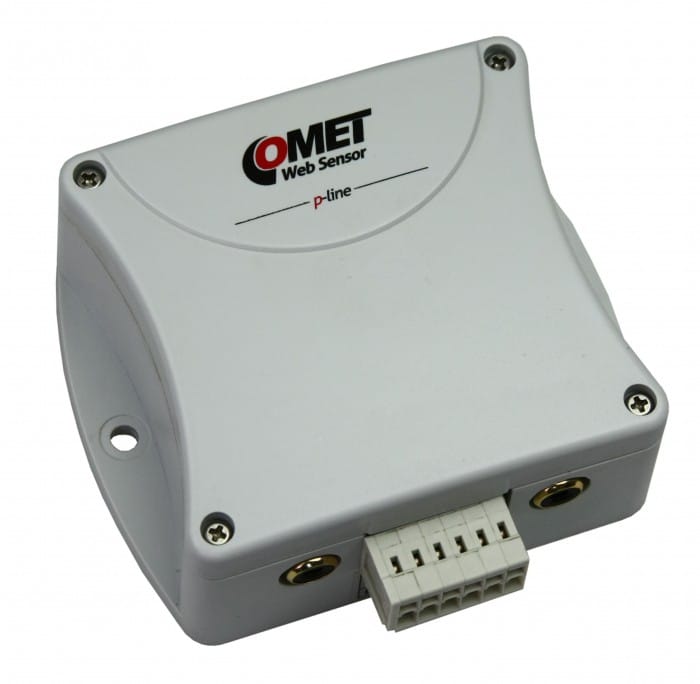

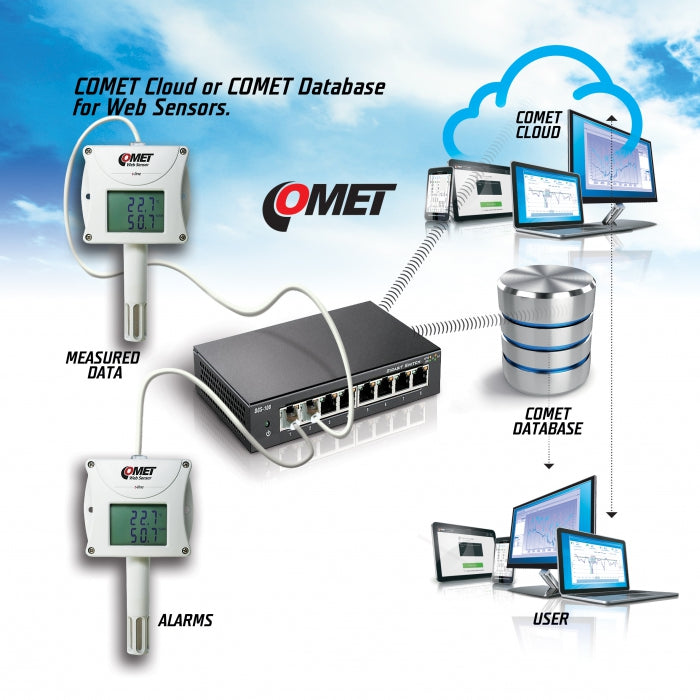

P-line Web Sensor for measuring temperature, relative humidity and three binary inputs for two-states signals Remote alarm The devices are equipped with two connectors for connection of the temperature and humidity external probes and three binary inputs for two-states signals The dry contact or two-state voltage signal can be connect to the binary input Processing and analysis of measured data: online in COMET Cloud COMET Database software integration into 3-party systems.

Features and Benefits:

    •Two channels with binary inputs.

    •Remote alarm functionality.

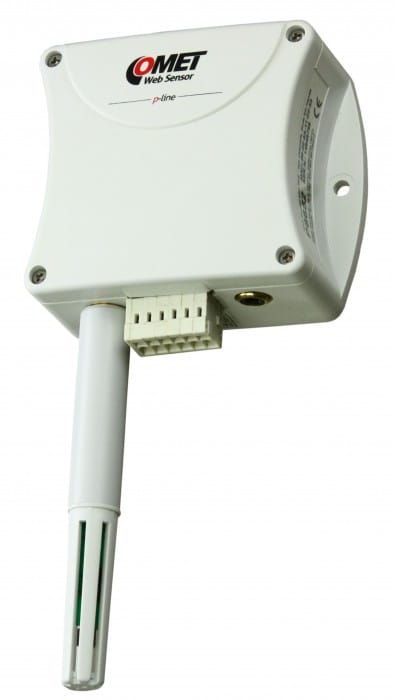

    •Connectivity for temperature and humidity probes.

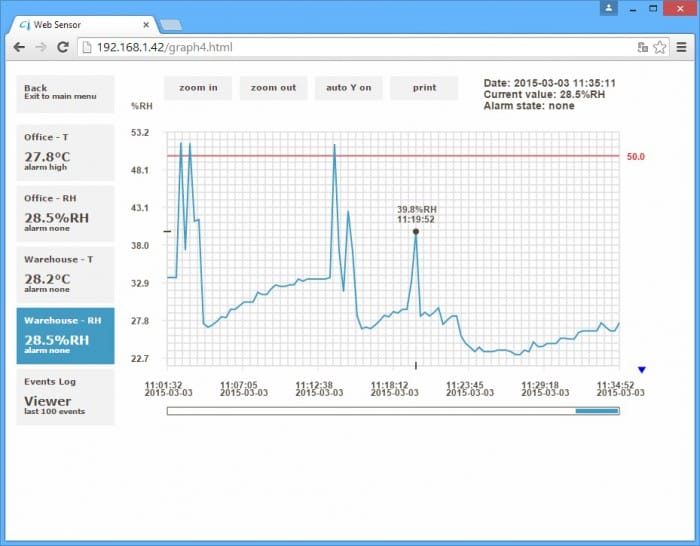

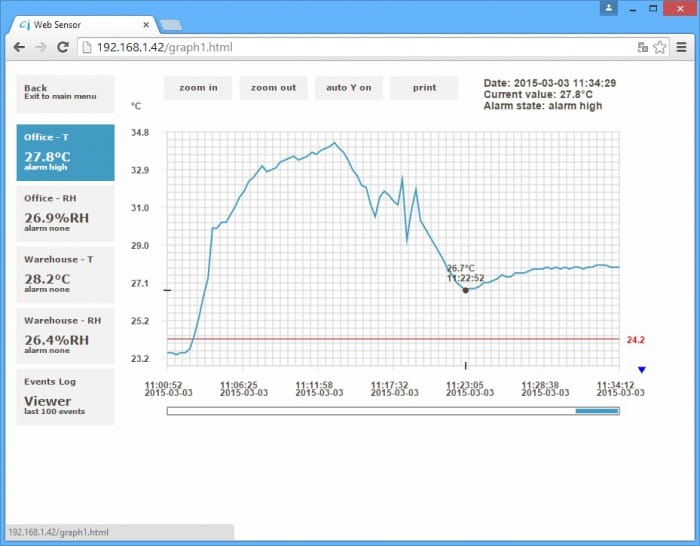

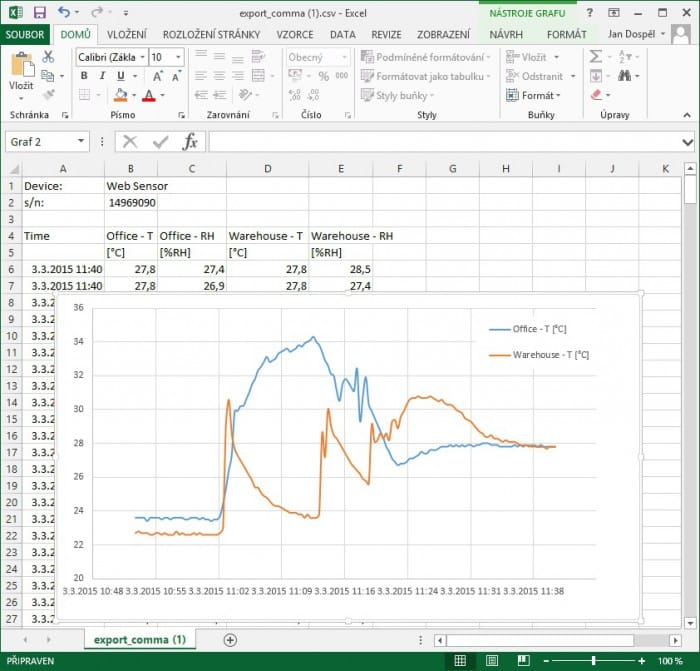

    •Processing and analysis of measured data online.

    •Integration with third-party systems.

Specifications:

 Measured value - Temperature Measuring range -55 to +105 °C; Accuracy according to the connected probe DSxx; Resolution 0.1 °C
 Measured value - Relative humidity Measuring range according to the connected probe DSxx; Accuracy according to the connected probe DSxx; Resolution 0.1% RH

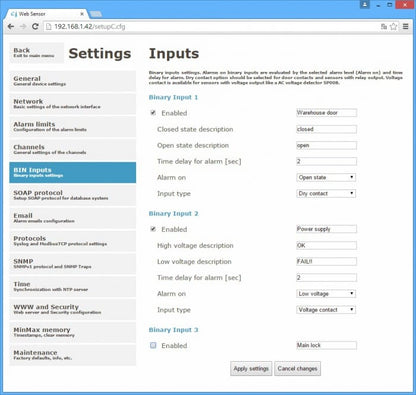

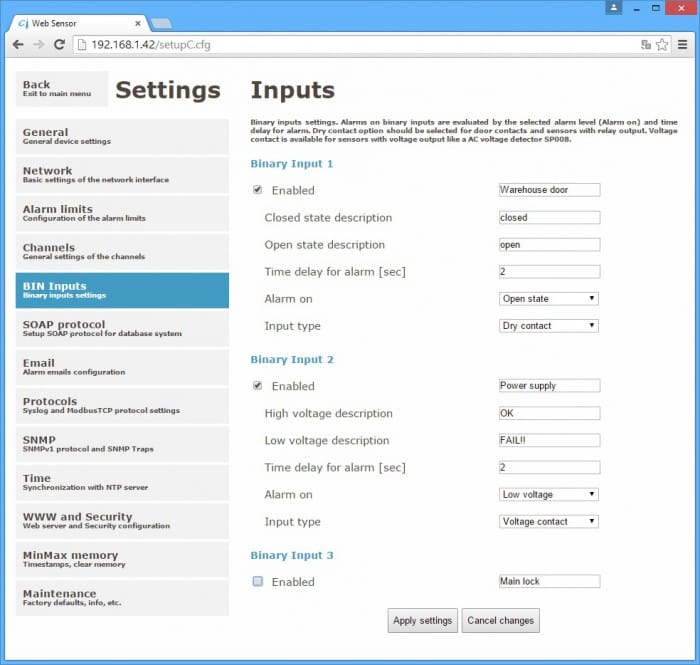

 Binary input - Parameters of the voltage contact Voltage input level for 'L':< 1,0 V; Voltage input level for 'H':> 2,5 V; Internal resistivity of the voltage source < 2kOhm; Input voltage range 0 to +30 V
 Binary input - Parameters of the voltage-free contact Voltage on the unclosed contact 3,3 V; Current through closed contact 0,1 mA; Maximum resistivity of the contact < 5kOhm
 General Technical Data - Operating temperature -30 to +80 °C
 General Technical Data - Channels 1x external temperature probe or 1x connectable temperature+humidity probe
 General Technical Data - Output Ethernet
 General Technical Data - Measuring interval 2 s
 General Technical Data - Available temperature units degrees Celsius, degrees Fahrenheit
 General Technical Data - Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
 General Technical Data - Alarm protocols E-mail, SNMP Trap, Syslog
 General Technical Data - Power 5 Vdc
 General Technical Data - Protection class IP30
 General Technical Data - Dimensions 88 x 74 x 39.5 mm
