Web Sensor - remote thermometer hygrometer with Ethernet interface

Web Sensor - remote thermometer hygrometer with Ethernet interface

SKU: SKU: T3510   Download PDF

Qty:
Regular price Now $100.00   Web pricing policy
Regular price BEFORE   Sale price Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information
Resources

Description:

The Web Sensor is equipped with built-in relative humidity and temperature sensors designed for weather monitoring It features a high precision capacitive polymer sensor that ensures excellent long-term calibration stability and ultimate accuracy Additionally, it comes with a dual line LCD display Measured values are converted to various interpretations of humidity including dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy.

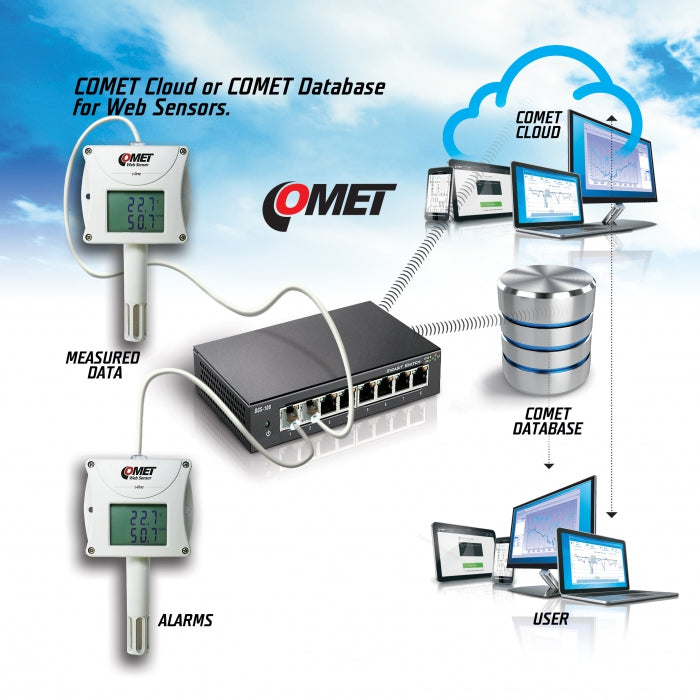

The data processing and analysis can be conducted online using COMET Cloud, COMET Database software, and it can be integrated into third-party systems.

Features and Benefits:

    •High precision capacitive polymer sensor for accuracy.

    •Dual line LCD display.

    •Multiple humidity interpretations available.

    •Online data processing in COMET Cloud and COMET Database.

    •Integration capability with third-party systems.

    •Remote alarm feature via communication protocols.

Specifications:

 Temperature Measuring Range -30 to +80 °C
 Temperature Accuracy ±0.6 °C
 Temperature Resolution 0.1 °C
 Humidity Measuring Range 0 to 100 % RH
 Humidity Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Resolution 0.1% RH
 Dew Point Measuring Range -60 to +80 °C
 Dew Point Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution 0.1 °C
 Operating Temperature -30 to +80 °C
 Output Ethernet
 Measuring Interval 2 s
 Power 9-30 Vdc
 Protection Class IP30
 Dimensions 88.5 x 147.5 x 39.5 mm; stem length 75 mm
 Alarm Protocols E-mail, SNMP Trap, Syslog
 Available Temperature Units degrees Celsius, degrees Fahrenheit
 Communication Protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
