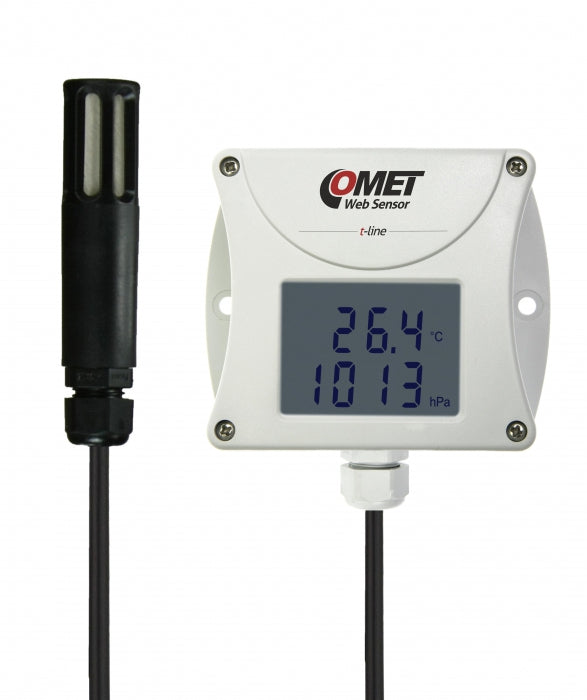

Web Sensor - remote thermometer hygrometer barometer with Ethernet interface

Web Sensor - remote thermometer hygrometer barometer with Ethernet interface

SKU: SKU: T7511   Download PDF

Qty:
Regular price Now $100.00   Web pricing policy
Regular price BEFORE   Sale price Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information
Resources

Description:

The Web Sensor is designed for monitoring ambient temperature, relative humidity, and atmospheric pressure, featuring a remote alarm function It comes with a relative humidity and temperature probe integrated on a cable, along with a built-in atmospheric pressure sensor This device utilizes a high precision capacitive polymer sensor to ensure excellent long-term calibration stability and ultimate accuracy.

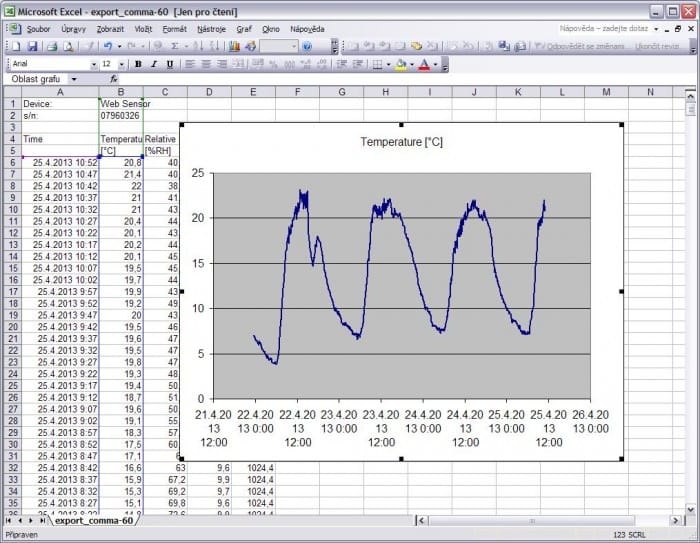

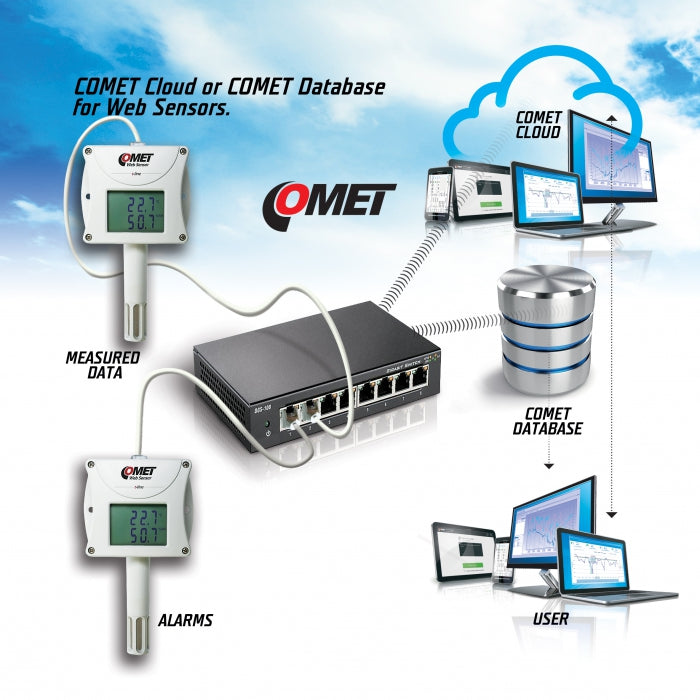

The dual line LCD display provides a clear readout, and measured values can be interpreted in various formats, including dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy The unit includes a T+RH probe with a 1-meter cable for versatile applications The processing and analysis of measured data can be performed online in COMET Cloud, COMET Database software, and via integration into third-party systems.

Features and Benefits:

    •High precision capacitive polymer sensor for long-term calibration stability and accuracy.

    •Dual line LCD display for easy reading of measurements.

    •Measures temperature, relative humidity, atmospheric pressure, and additional derived metrics.

    •Includes a relative humidity and temperature probe with a 1-meter cable.

    •Supports online data processing in COMET Cloud and integration with third-party systems.

Specifications:

 Temperature Measuring Range -30 to +105 °C
 Temperature Accuracy ±0.4 °C
 Temperature Resolution 0.1 °C
 Humidity Measuring Range 0 to 100 % RH
 Humidity Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Resolution 0.1% RH
 Dew Point Measuring Range -60 to +80 °C
 Dew Point Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution 0.1 °C
 Atmospheric Pressure Measuring Range 600 to 1100 hPa
 Atmospheric Pressure Accuracy ±1.3 hPa at 23 °C from 800 to 1100 hPa
 Atmospheric Pressure Resolution 0.1 hPa
 Operating Temperature -30 to +80 °C
 Number of Channels 1
 Output Ethernet
 Measuring Interval 2 s
 Communication Protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
 Alarm Protocols E-mail, SNMP Trap, Syslog
 Power Supply 9-30 Vdc
 Protection Class IP30 electronics; IP40 sensors
 Dimensions 88.5 x 147.5 x 39.5 mm; stem length 75 mm
 External Probe Cable Length 1 meter
